234-1037 Circuit Breaker Wiring Harness

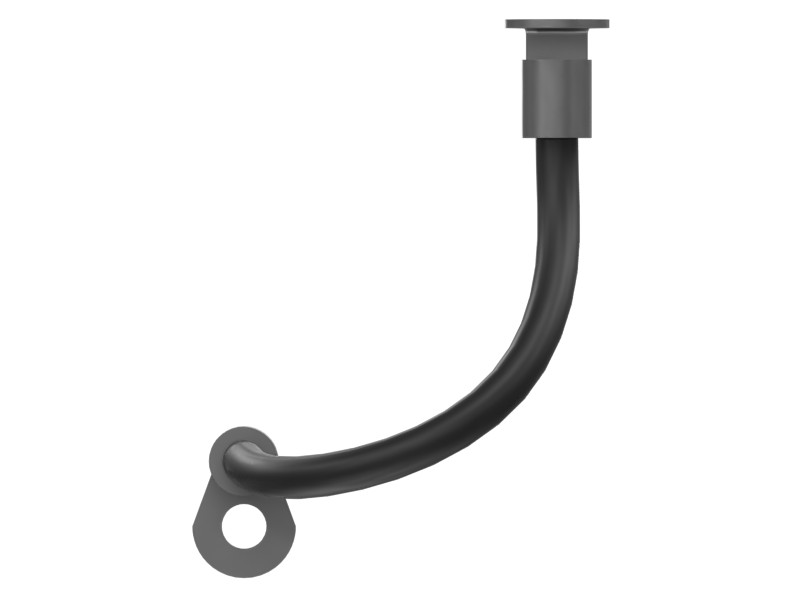

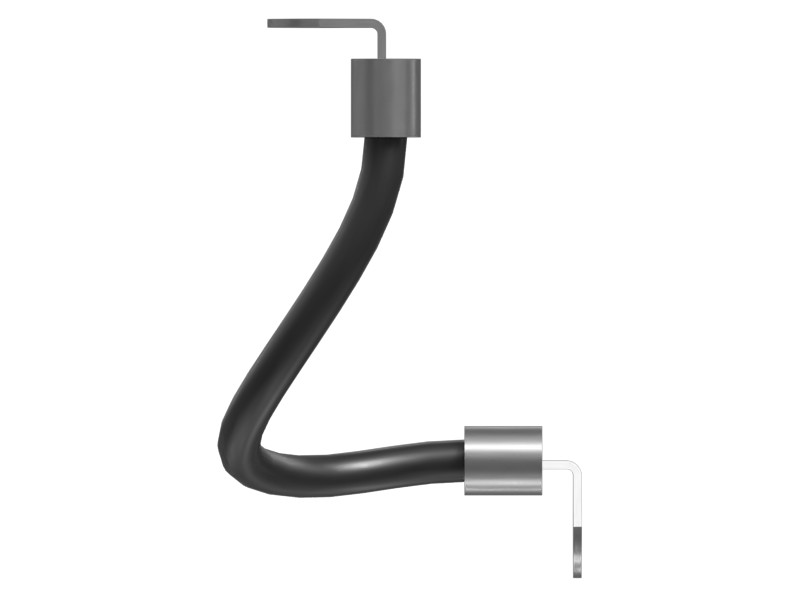

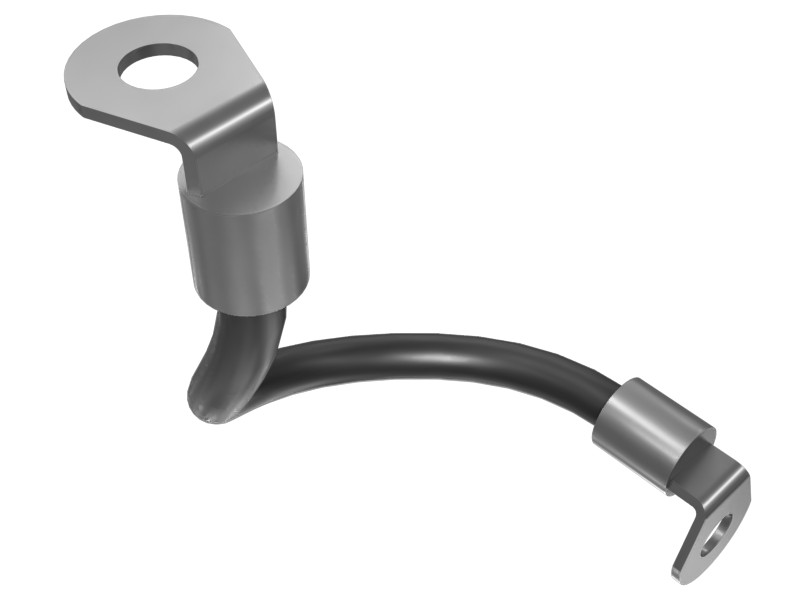

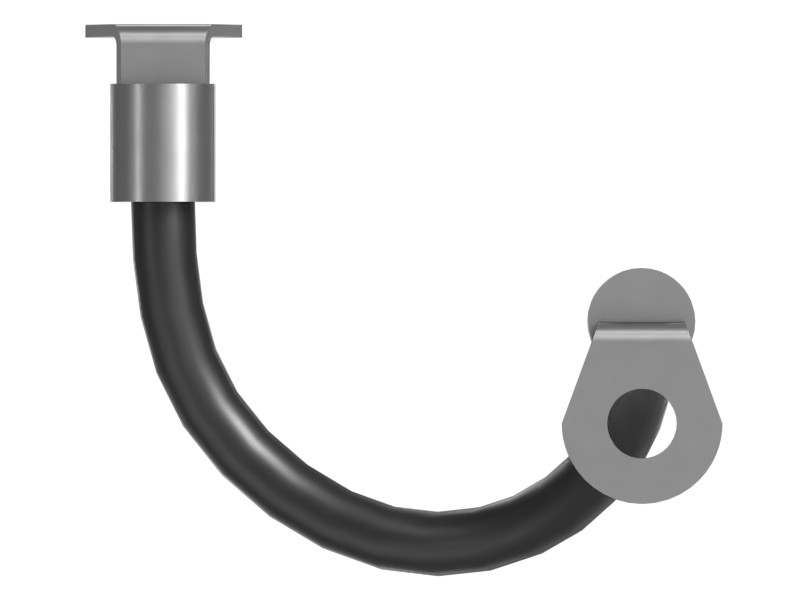

Cat® Circuit Breaker Wiring Harness connecting the junction box to the starting relay magnetic switch
Description
The circuit breaker wiring harness is a collection of wires used to carry electrical signals and power from the starting relay magnetic switch to the junction box. The wiring harness includes terminals at both ends of the wires, enabling secure and reliable connections between circuit breakers and matching the corresponding connection points on specific terminals on the panel.
Attributes
- Prevents component damage and ensures safety
- Color-coded red for easy identification and connection
Applications
The circuit breaker wiring harness establishes a secure and reliable connection between the junction box and the starting relay magnetic switch. It ensures smooth operation of various electrical systems.
Compatible Equipment
- Excavators: 330D L, 324D L, 336D L, 325D, 329D L, 312D, 336D2 L, 320D RR, 325D L, 323D L, 328D LCR, 320D L, 330D, 320D FM, 324D, 345C, 345D, 345D L, 340D2 L, 345C L, 349D L, 340D L, M325D L MH, 336D2 GC, 315D L, 312D L, 336D2 XE, 311D LRR, 326D L, 320D, 336D2, 329D, 336D, 349D2, 349D2 L, 349D
Additional information
| Machine Model | 311D LRR, 312D, 312D L, 315D L, 320D, 320D FM, 320D L, 320D RR, 323D L, 324D, 324D L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, M325D L MH |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
