Description

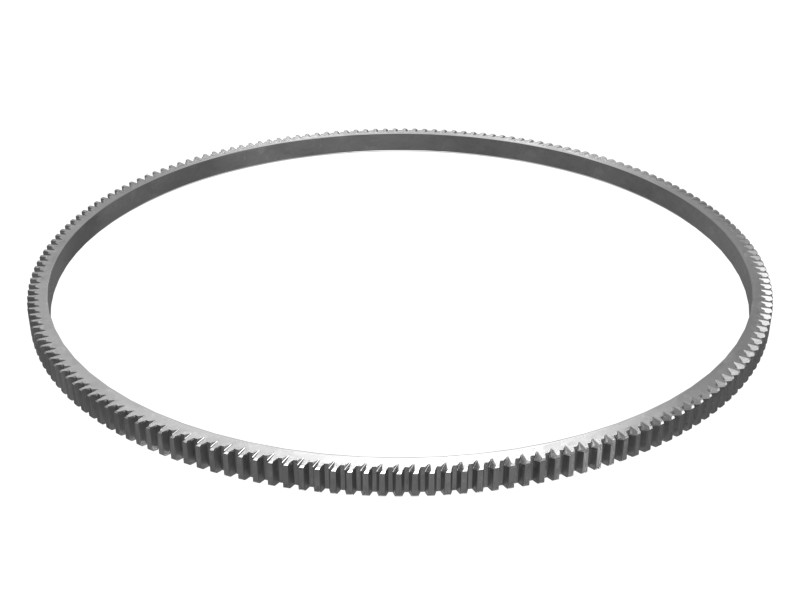

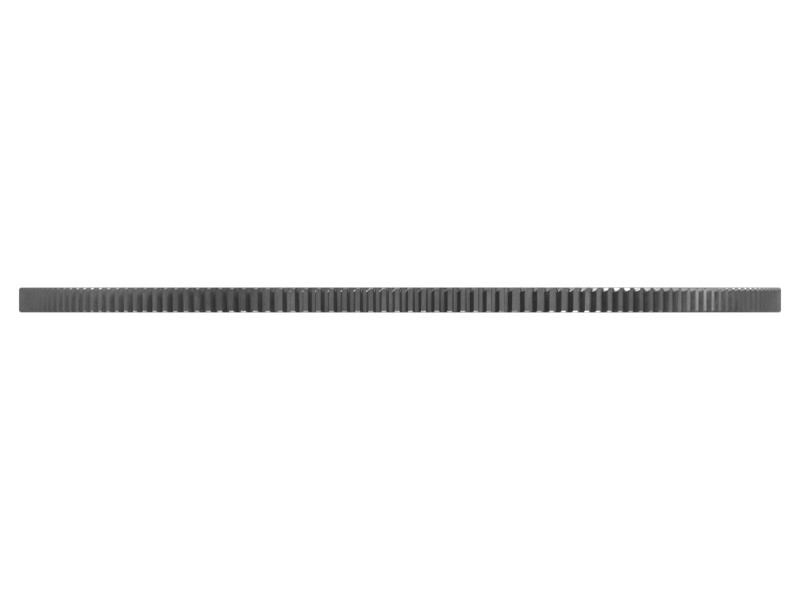

The flywheel gear is used in an internal combustion engine to transfer power from the flywheel to other parts, such as the starting motor, clutch, and transmission. It is typically attached to the flywheel, a rotating weight that stores energy and helps smooth the engine's power delivery.
Features
- Built to exact specifications for durability and reliable performance
- Pitch Diameter 774.700 mm, Normal Pressure Angle 20 degrees
- Can withstand high loads and stress
Applications
The flywheel gear efficiently transfers power from the engine flywheel to other parts.
Specifications
| Inside Diameter | 740.07 mm (29.136 in) |
|---|---|
| Height | 25 mm (0.984 in) |
| Length | 22 mm (2.95 in) |
| Material | Steel |
| Material Description | Steel |
| Number of Teeth | 183 |
| Thickness | 0.16 in |
| Outside Diameter | 780.07 mm (30.711 in) |
| Weight | 7.62 kg |
| Width | 25 mm (0.98 in) |
Compatible Equipment
- Generator Sets: G3516, 3516C, 3512B, 3512E, G3516C
- Engines: C175-16
- Excavators: 3512C, 3516E, 3516B, 3508B, 6060
- Off-Highway Trucks: 798 AC, 797F, 796 AC, 793F, 794 AC, 793
