Description

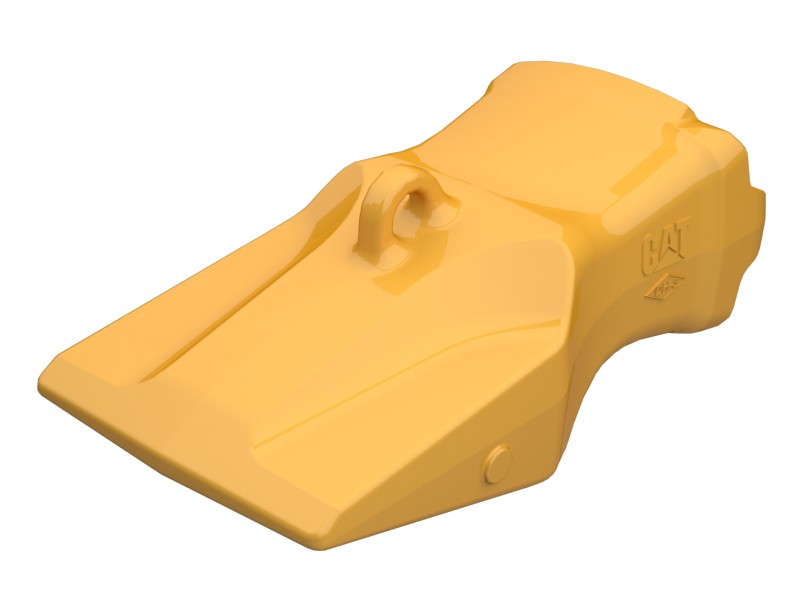

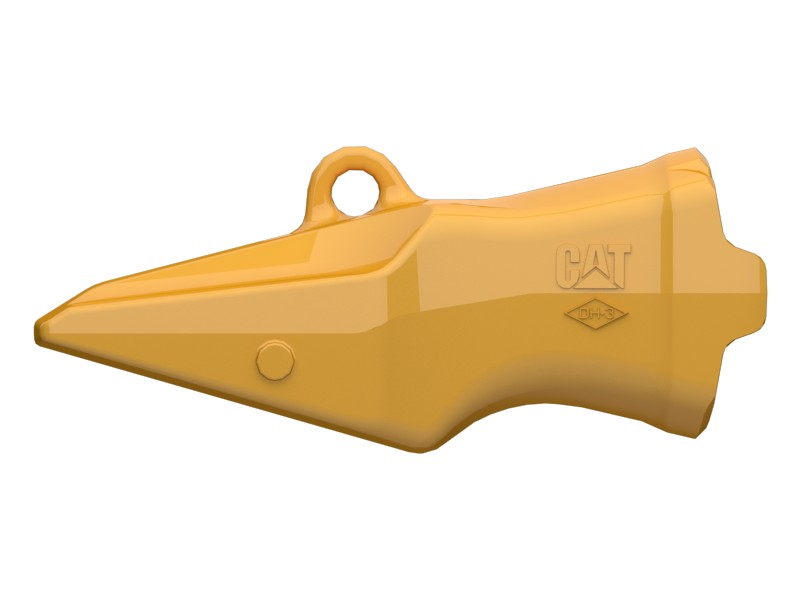

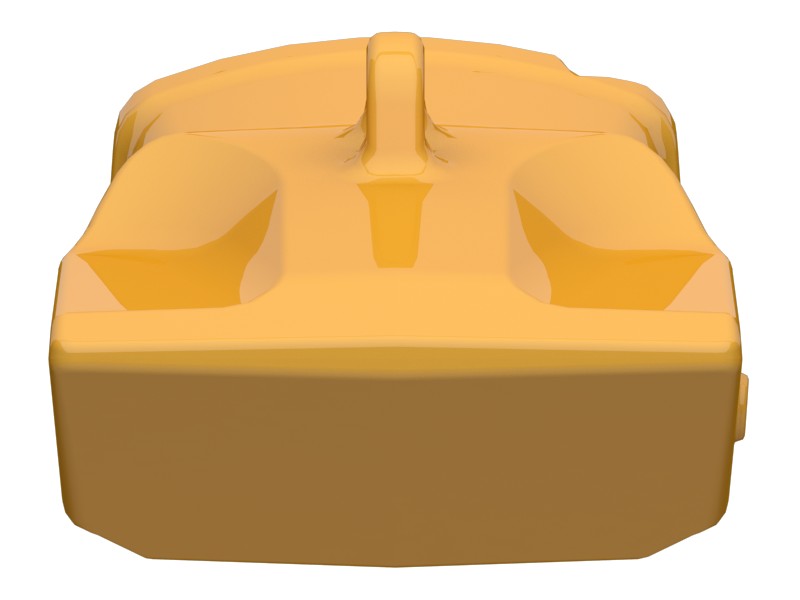

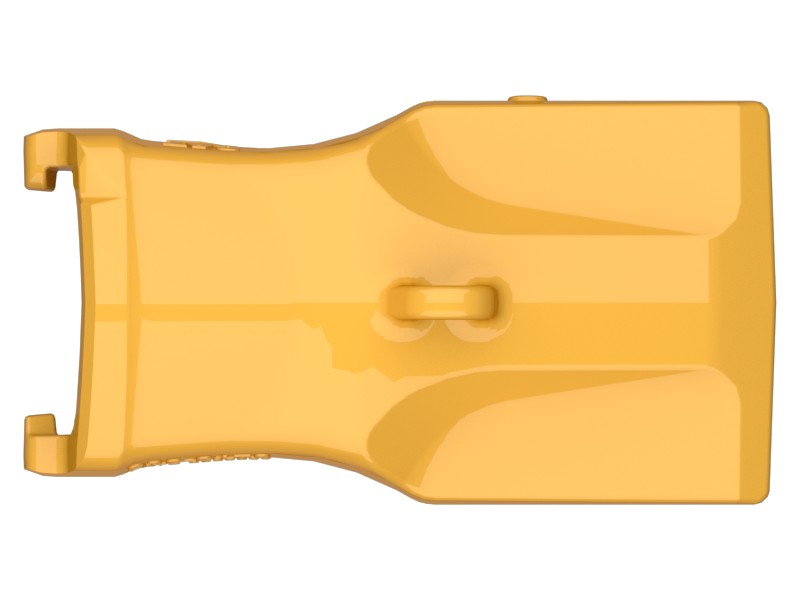

The Cat® K Series™ system uses a twist-on vertical retainer design that holds securely and is easy to install and remove. K Series tips are designed around the inherent characteristics of your Cat equipment and protect the machine's bucket from damage like no other tip can.
For high-wear applications (such as sand, gravel, and shot rock), Heavy Duty Abrasion Tips are your go-to GET. These Genuine Cat tips add approximately 145% more wear material to extend the life of your machine's bucket. In addition, the tip base has 35% more surface area than Heavy Duty Penetration Tips, making them well suited to loading applications.
MECHSC can help you select the right tip for your specific needs and job site conditions, striking the right balance between penetration and wear life. Choosing Genuine Cat parts is a smart business decision, both now and in the future.
Features
- Approximately 145% more wear material
- Tip base has 35% more surface area than a heavy duty penetration tip
Applications
- Highly abrasive material such as sand, gravel, and blasted rock
Specifications
| Material | Alloy Steel |
|---|---|
| Front Width | 260 mm (10.236 in) |
| Rear Width | 224 mm (8.819 in) |
| Overall Length | 484 mm (19.055 in) |
| Shape | Heavy Abrasion |
| Rear Height | 193 mm (7.598 in) |
| End Bit Size | K170 |
| Size | K170 |
| Series | K Series |
| Wear or Durability | Standard |
| End Bit Length | 484 mm |
Compatible Equipment
- Excavators: 390D, 385C FS, 385C L, 385C, 374D L, 390D L
- Wheel Loaders: 992K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
