Description

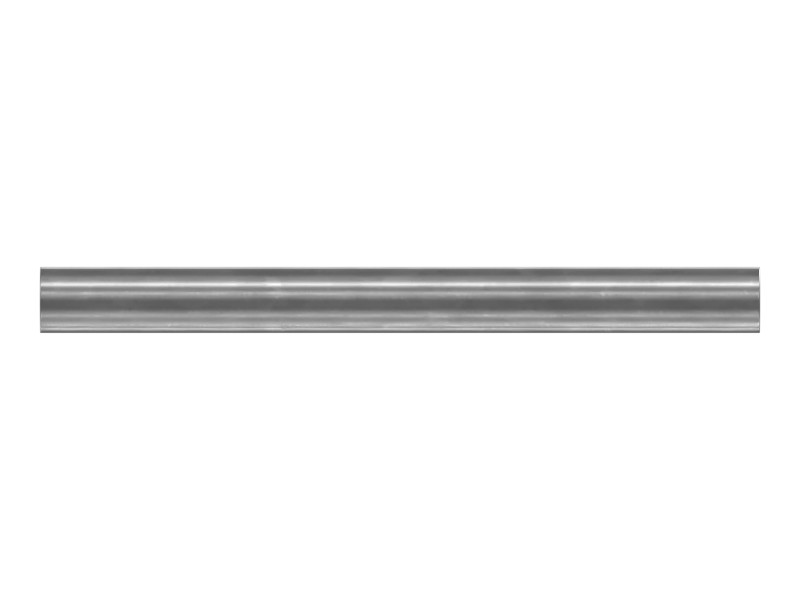

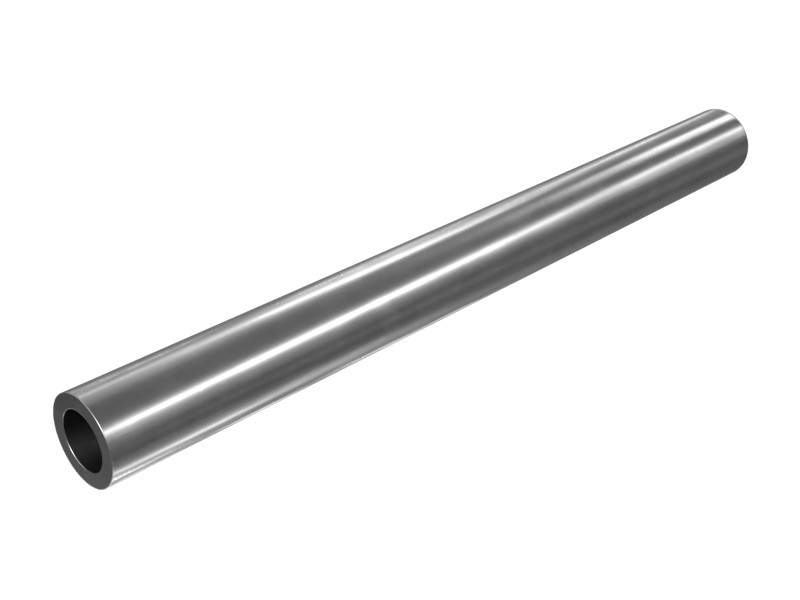

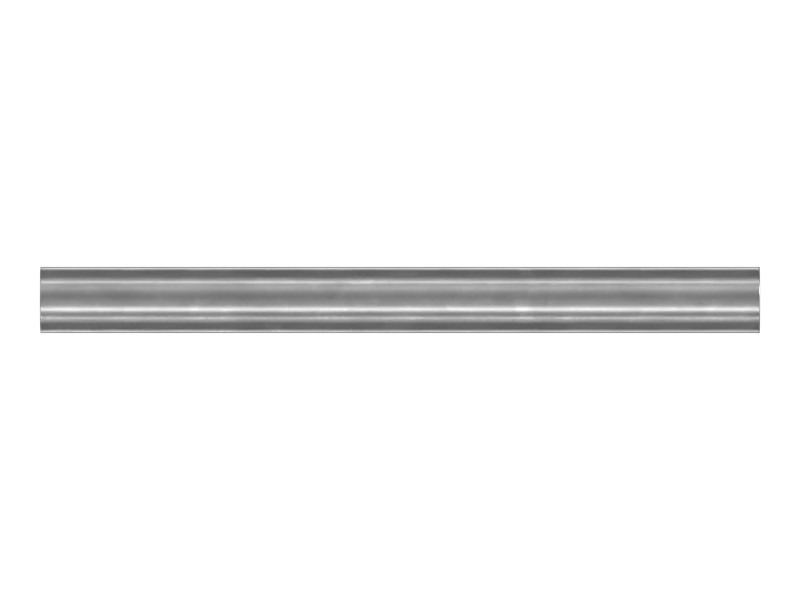

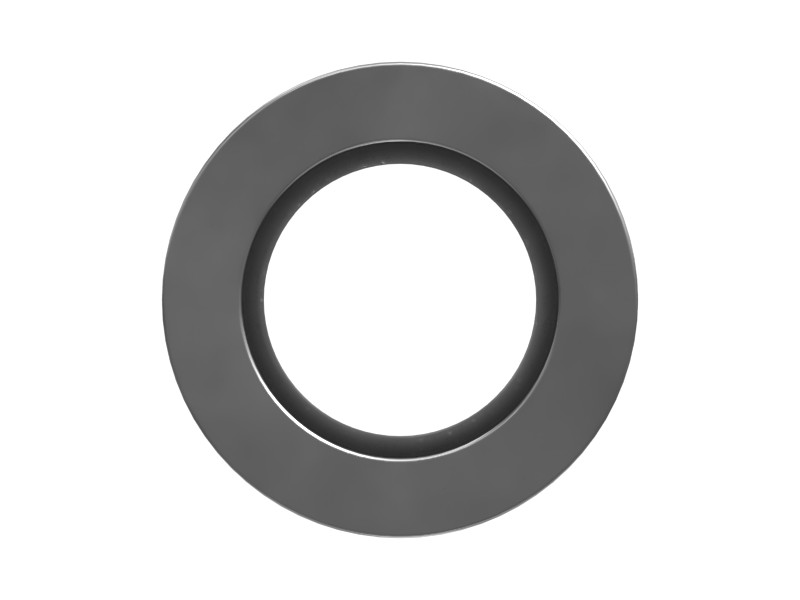

Spacers are commonly used to provide additional stretch length. They are usually a section of tube with a fastener inserted through it; therefore, a short spacer may resemble a thick washer. Washers are sometimes used as small spacers in a fastener to reduce preload loss or narrow the cyclic stress range of the machine workload. They are used to establish and maintain the functional relationship of related parts in a machine system. The spacer has a through hole through which the bolt is inserted. This means the spacer does not engage the threads of the bolt. Because a spacer cannot be tightened directly, a round outer profile is typically used.
Features
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
- Designed to withstand high temperatures and pressures while maintaining excellent sealing capability.
- Zinc electroplating provides a protective layer against corrosion caused by water and other elements in the air.
Applications
This shim is used for seat/cab mounting.
Specifications
| Thickness | 139.1 mm (5.476 in) |
|---|---|
| Coating | Zinc |
| Gasket Type | Flat |
| Center Hole Shape | Non-Threaded |
| Inside Diameter | 8.48 mm (0.42 in) |
| Surface Finish | Zinc Plated |
| Length | 139.1 mm (5.47 in) |
| Material | Steel |
| Outside Diameter | 12.7 mm (0.5 in) |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 993, 963D, 826K, 990K, 824C, 834H, 824G, 953D, 826H, 994K, 826G
- Cold Planers: PL61, PL83, PL87
- Compactors: CS-54, 815, 814, 834K, 825K, 824K, C13B, C9.3B
- Engines: C15, C32, C13, C27, C11, C7, C18
- Dozers: D6N, D8N, D8T, D6T, D11R, D11T, D10R
- Excavators: 3516E, 6020B, 3508B, 637G, 6030, 3516B, 6040, 657G, 637E, 6015, 345D L, 621G, 6015B
- Wheel Loaders: R1700G, R2900G, 950H, RM500B, 966H, 980G, 972H, 980H, 928HZ, 988K, 924HZ, R3000H, 834, 986H, 988H, R1600H
- Off-Highway Trucks: 773F, 725, 740B, 730, 777D, 735, 740
- Asphalt Pavers: AD63, AD30, AD45, AP-600D
Additional information
| Machine Model | 345D L, 3508B, 3516B, 3516E, 6015, 6015B, 6020B, 6030, 6040, 621G, 637E, 637G, 657G, 725, 730, 735, 740, 740B, 773F, 777D, 814, 815, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834, 834H, 834K, 924HZ, 928HZ, 950H, 953D, 963D, 966H, 972H, 980G, 980H, 986H, 988H, 988K, 990K, 993, 994K, AD30, AD45, AD63, AP-600D, C11, C13, C13B, C15, C18, C27, C32, C7, C9, C9.3B, CS-54, D10R, D11R, D11T, D6N, D6T, D8N, D8T, PL61, PL83, PL87, R1600H, R1700G, R2900G, R3000H, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
