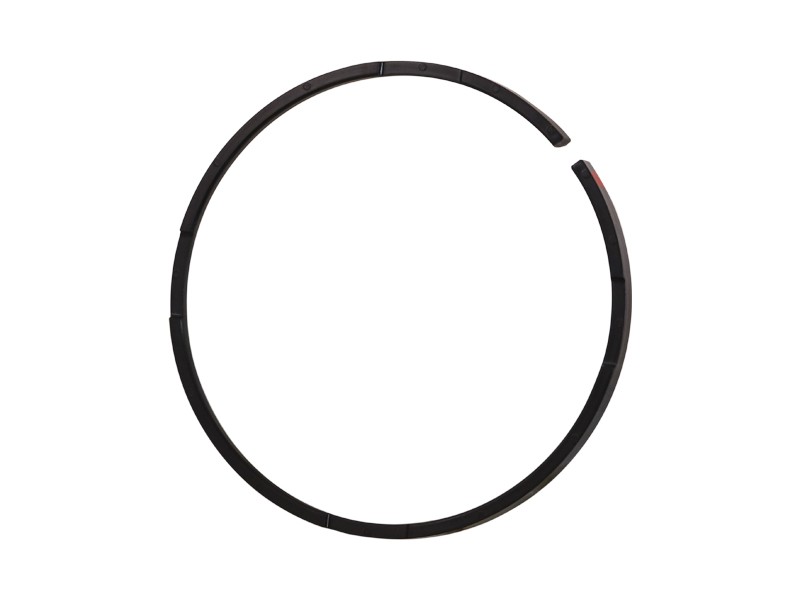

231-6805 3 mm Thick Seal Ring
Cat® 3 mm thick seal ring used in hydraulic stick cylinders
Description
The seal ring is part of the hydraulic stick cylinder. It is specially designed to fit in a groove in the cylinder stop. The seal ring is round, with a cross section that matches the groove size, and forms a tight seal around the cylinder when the cylinder is pressurized.
Features
- Keeps external elements out of the cylinder
- Ensures optimal sealing performance
Applications
The seal ring is used in the hydraulic stick cylinder to maintain proper hydraulic pressure and prevent leakage.
Specifications
| Material | Alloy Steel |
|---|---|
| Axial Thickness | 3 mm |
| Outside Diameter | 100 mm (3.94 in) |
| Radial Thickness | 6 mm |
| Weight | 0.01 kg (0.02 lb) |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 320, 335F LCR, 329D L, 320D2 L, 325D L, 325D, 329E L, 325C L, 330D2 L, 320D L, 328D LCR, 323, 330D2, 329E, 320D2 GC, 323D2 L, 320D, 320D2, 329D2 L, 329D2, 329D
