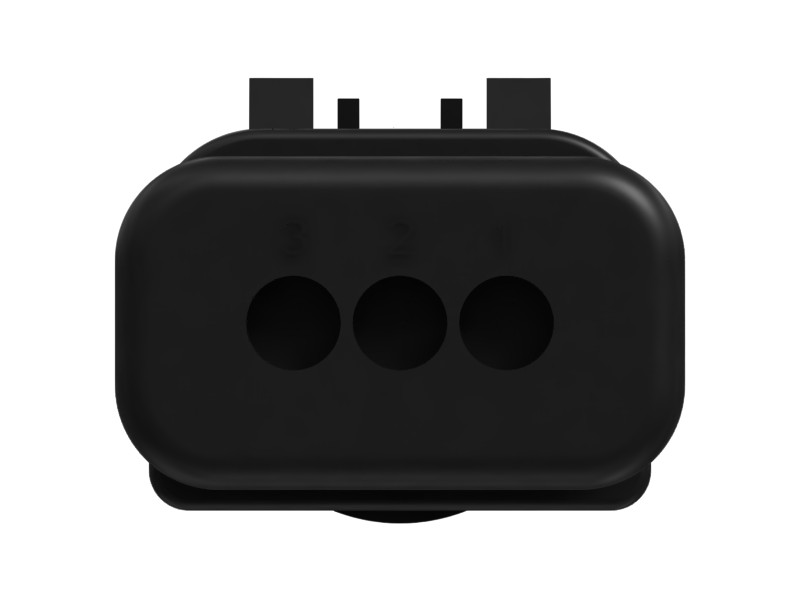

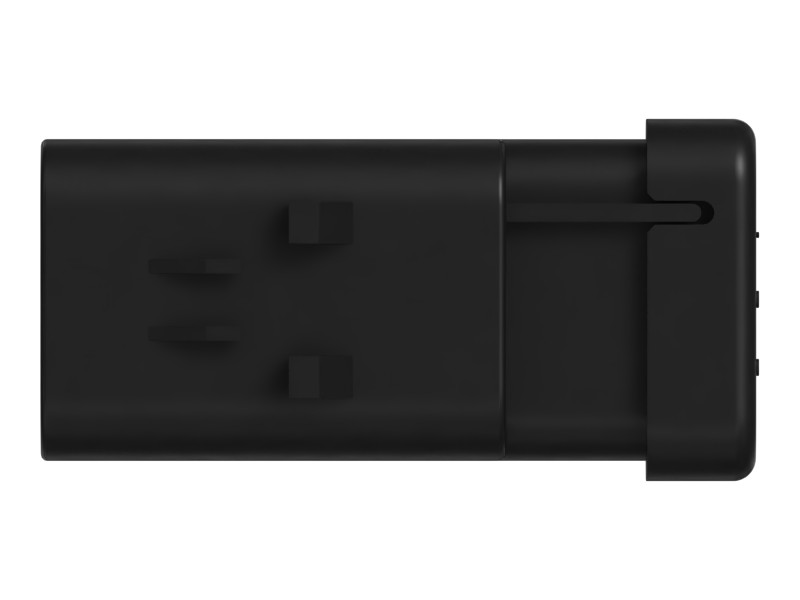

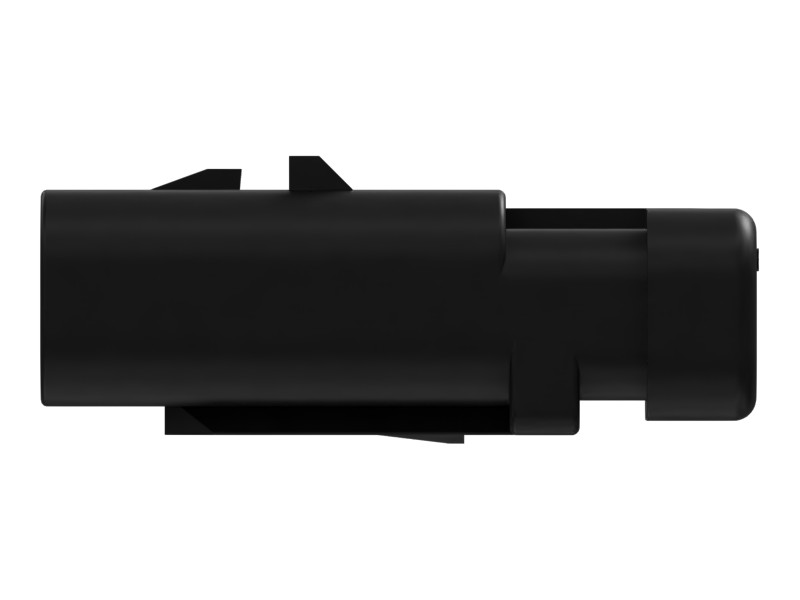

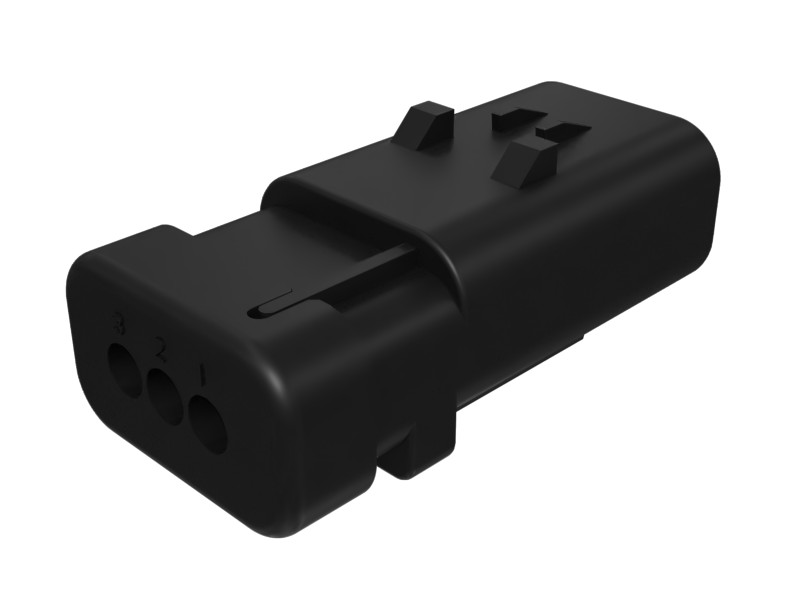

230-4014 3-Pin Connector Receptacle
Cat® 3-Pin Connector Receptacle with Connector Plug, Rated Current 13 Amps
Description
Cat connectors use a pin-and-socket connection system to provide reliable electrical connections across a range of electrical applications on Cat heavy-duty equipment. Quality that suits your equipment requirements and meets your expectations.
Features
- Plastic connector receptacle
- 14-18 AWG
- Contact Type: Pin
- Number of Contacts: 3
- Body Color: Black
- Seal Color: Green
Applications
Cat connector plug groups provide a reliable mating connection between wires or between a wire and equipment.
Specifications
| Material | Polyester Plastic |
|---|---|
| Height | 19 mm (0.8 in) |
| Wire Gauge | 18-14 AWG |
| Width | 24 mm (0.9 in) |
| Connector Type | Pin |
| Length | 48 mm (1.9 in) |
Compatible Equipment
- Generator Sets: 3516C, 3512E, 3512B, G3516, C7.1, C3.3DE33E0, C9, G3516C, C4.4
- Track Loaders: 982, 972, 953, 992, 963, 963D, 963K, 973K, 826K, 953K, 953D, 995, 994K
- Cold Planers: PL87, PL83, PM622, PL72, PL61, PM620
- Compactors: C9.3B, 815, 816, 814, CB2.9, CB2.7, CB2.5, CW-34, CB16, 834K, 824K, 825K, CB2.5 GC, CB2.7 GC, CC2.7 GC, CB-64B, C13B, CB-66B, CB15, CB13, CB10, C-9
- Engines: C13, C15, C32, C7, C11, C18, C175-16
- Excavators: 330, 303.5E2 CR, 374F, 307.5, 390F L, 320D, 313, 374, 305E2 CR, 349F L, 3516E, 320, 326, 336, 345 GC, 350, 349, 352, 395, 340, 3508B, 3512C, 325, 3516B, 305 CR, 323, 336F LN, 336F L XE, 336F L, 336F, 336E L, 336E LN, 329E L, 336E, 320 GC, M325D L MH, 428F, 637K, 349E, 432, 621H, 349E L, 621K, 390F, 352F, 434F2, 349E L VG, 374F L, 335, 315, 3101, 6060, 315 GC, 320D L, 336E LH, 329E, 335F LCR, 336E H
- Asphalt Pavers: AP300F, AD45, AP355F, AD63
- Skid Steer Loaders: 24
- Motor Graders: 14, 18, 16, 16M3
- Wheel Excavators: M320, MD6250, MD6200, M315GC, M315D, M322D, M320D2, M315D2, M313D, M317D2, M315
- Dozers: D4, D7, D9, D1, D11, D5K2 XL, D11T, D10, D9R, D7E, D8, D6R II, D7R II, D8T, D6T LGP, D9T, D3K2 LGP, D6R, D6K2, D6T, D6N, D8R, D6R LGP, D10R, D10T2, D6R XL
- Mini Excavators: 308, 310, 306, 305.5 GC, 307
- Wheel Loaders: 980, 966, M314, 834, 950 GC, R1600H, R2900 XE, 836, RM400, 950, R2900G, 972H, 950H, 950L, 924K, 938K, 966H, 988K, 980H, 962L, 966L, 938M, 926M, R3000H, 966K, R1700 XE, R1700G, 966F, 980L, 972L, 986H, R1700K, RM500B
- Off-Highway Trucks: 789D, 773, 775G, 797F, 772G, 770G, 789, 785, 794 AC, 793, 740, 740B, 745, 798 AC, 725, 777, 725C2, 785D, 730, 796 AC, 793F, 745C, 735, 740 GC, 773F, 793D, 777E
