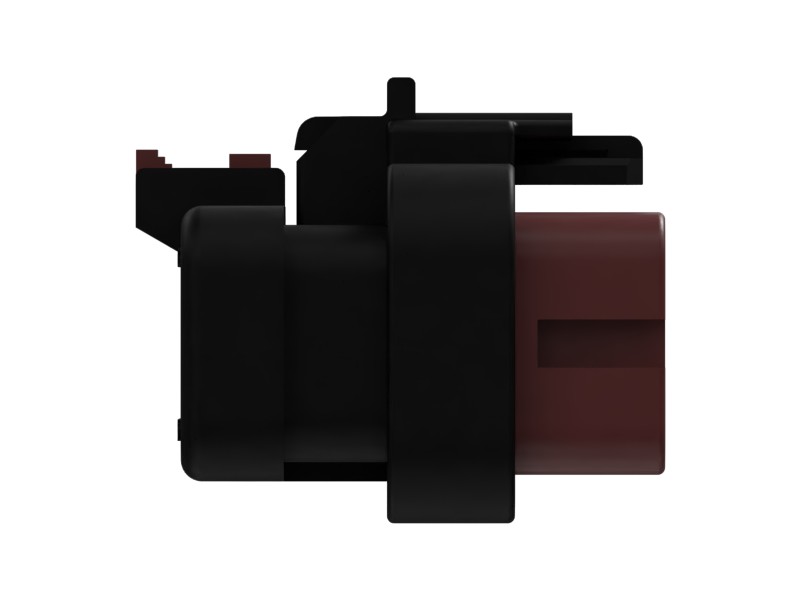

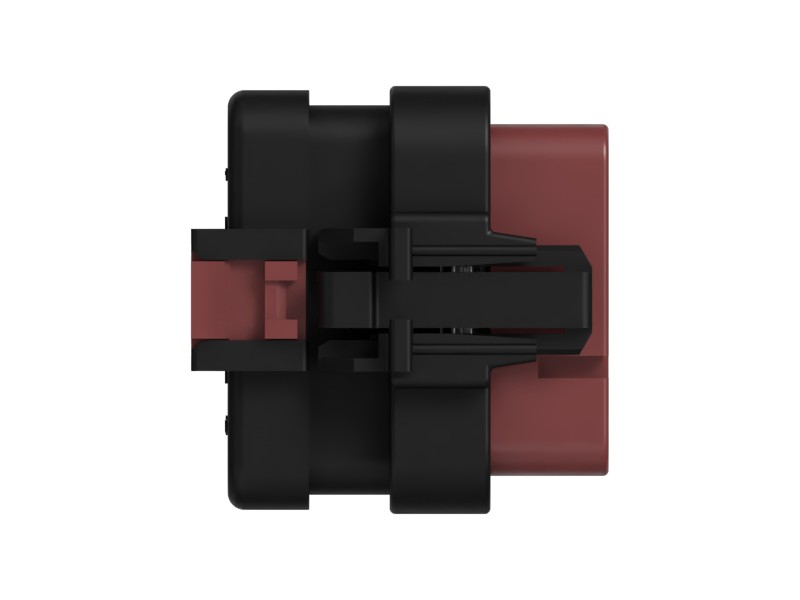

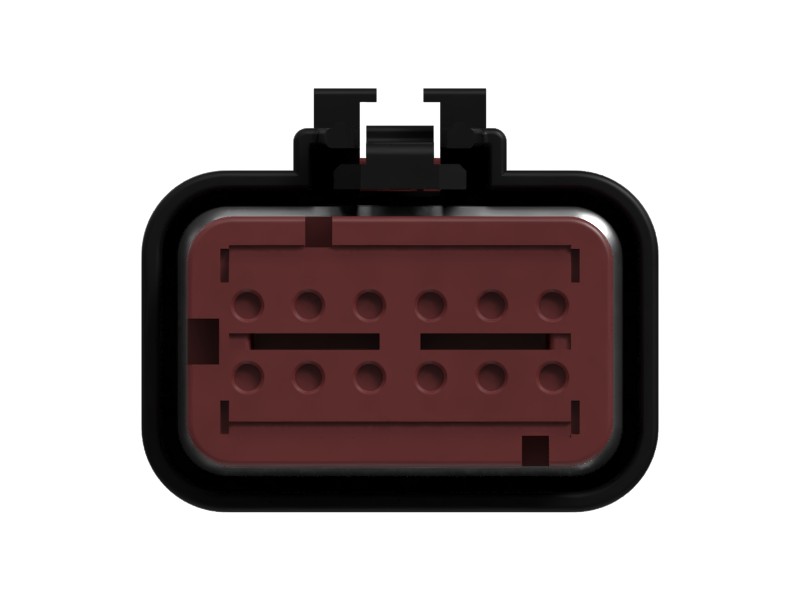

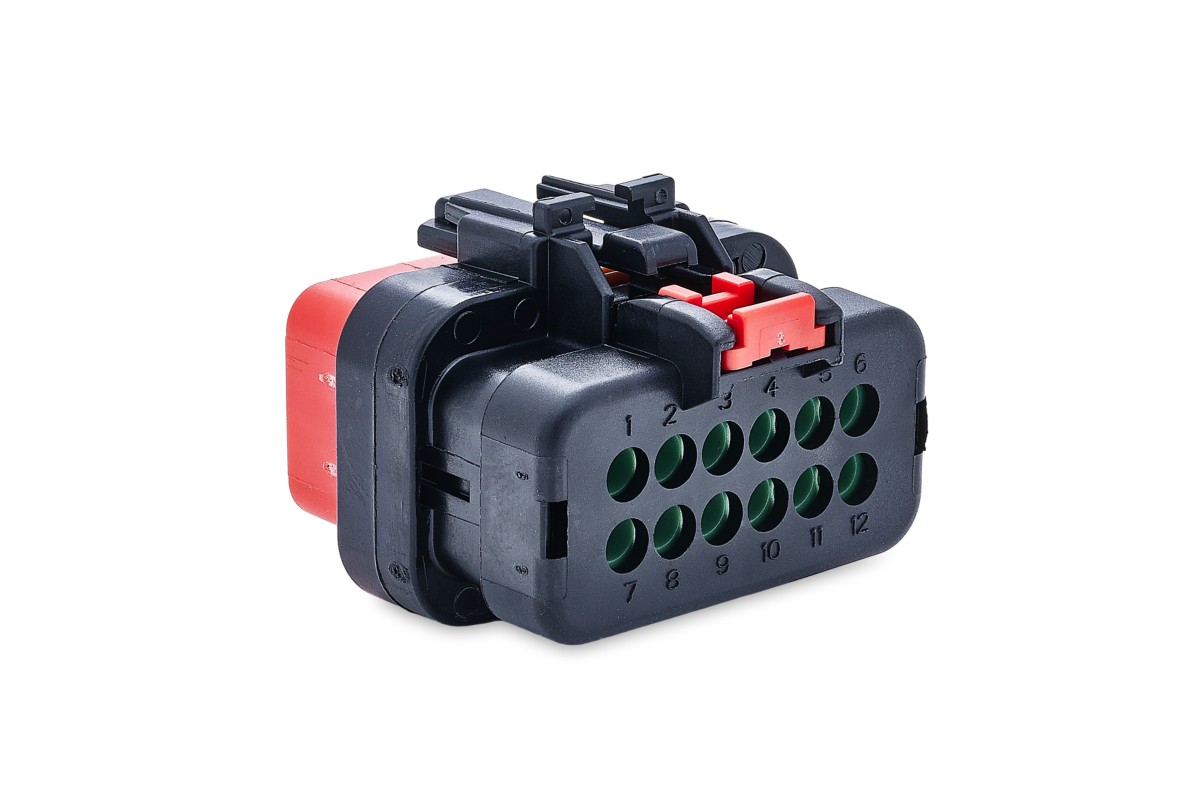

230-4009 12-Pin Connector Plug
Cat® 37.4 mm Long 12-Pin Connector Plug for connecting wiring harnesses
Description
Cat connectors use a pin-and-socket connection system to provide reliable electrical connections across a range of electrical applications on Cat heavy-duty equipment. Quality that suits your equipment requirements and meets your expectations.
Features
- 14-18 AWG
- Contact Type: Receptacle
- Number of Contacts: 12
- Up to 13 Amp current
- With dust cover and seal
- Corrosion resistant
- Easy to connect and disconnect
Applications
Cat connector plug groups provide a reliable mating connection between wires or between a wire and equipment.
Specifications
| Material | Polyester Plastic |
|---|---|
| Width | 38 mm (1.5 in) |
| Connector Type | Sleeve |
| Length | 34 mm (1.3 in) |
| Height | 31 mm (1.2 in) |
| Wire Gauge | 11-18 AWG |
Compatible Equipment
- Generator Sets: 3512E, C9, C7.1, 3406C, C4.4, 3516C, 3512B, 3406B
- Track Loaders: 953, 992, 982, 972, 963D, 953K, 963K, 953D, 990K, 994K, 973K, 993, 963, 826K
- Cold Planers: PL87, PM622, PM620, PL72, PL61, PL83, SE50 VT, SE60 VT XW
- Compactors: 814, 815, CB2.9, CC2.7 GC, CB2.7 GC, CC-34B, CS12, CW-34, CB16, CB-44B, CB-34B, C9.3B, CB-64B, CB2.7, CB2.5, 816, CP56B, CP12 GC, 824K, 834K, CB-24B, CB-66B, CS11, CB2.5 GC, CS12 GC, 825K, CS68B, CS78B, CS56B, CS74B, CP11 GC, CW-16, CB-36B, C13B, C-9, CB10, CB15, CB13
- Engines: C7, C32, C15, C13, C27, C18, C12, C175-16
- Excavators: 330, 320D2, 336D2, 336D, 303.5E2 CR, 320D, 308D, 326D2 L, 374F, 349D2, 374D L, 349D2 L, 326D2, 303C CR, 329D, 390F L, 390D L, 329D2 L, 329D2, 349D, 306E2, 305C CR, 307E, 308E, 374, 349F L, 313 GC, 313, 305E2 CR, 330D L, 345 GC, 336, 320, 320 GC, 325, 340, 637K, 395, 323, 350, 326, 323 GC, 315 GC, 120 GC, 335, 352, 320E, 325D, 330D2 L, 320D FM, 313D2, 329E, 329D L, 323D, 324D, 313D2 GC, 324D L, 328D LCR, 312D, 336F, 336F L, 336E H, 330GC, 336D L, 336F LN, 329E L, 323D L, 314D CR, 325D L, 336E L, 312D2, 336D2 L, 318D2 L, 315, 345C L, 349E L, 385C, 365C, 349E L VG, 365C L, 385C L, 349E, 345C, 621K, 374F L, 390F, 3516E, 345D L, 385C FS, SE60 V XW, M325D L MH, 323 GX, 336 GC, 349, 3508B, 312D L, 320D2 GC, 320D RR, 320D L, 315D L, 320D GC, 330D, 312E L, 312D2 L, 312E, 326D L, 352F, 349D L, 390D, 330 GC, 3512C, 323D2 L, 314D LCR, 336E LN, 311D LRR, 320D2 L, 313F L, 312D2 GC, 313D, 336F L XE, 323D2, 313D2-GC, 336D2 XE, 335F LCR, 340D2 L, 621H, 340D L, 320 GX, 313F LGC, 318D L, 336E LH, 326 GC, 333 GC, XQP200, 330D2, 318D2, 336E, 345D, 333, 323GC, 355, 312F, 336D2 GC, 3516B, 3101, 350MHPU, 326GC, 315F LCR
- Asphalt Pavers: AP655F, AP655F L, AD45, AP355F, AD30, AP300F
- Skid Steer Loaders: 299D3 XE, 246D, 289D3, 226D3, 239D3, 272D3 XE, 272D3, 249D3, 236D3, 262D3, 242D3, 232D3, 246C, 246D3, 236D, 259D3, 262D, 232D, 279C, 262C, 313D2 LGP
- Motor Graders: 140 GC, 120, 14M, 18, 16, 16M3, 12K, 160K, 140K, 14, 349 GC, 16M, 316F
- Wheel Excavators: M322D, M320, M317D2, M315D, M315GC, M315, M313D, MD6200, MD6310, M320D2, M315D2
- Dozers: D7, D1, D10T2, D3K2 LGP, D11T, D6N, D6T LGP, D6T, D6K2, D5K2 XL, D7E, D5K LGP, D9T, D6R, D4, D8T, D8R, D5K XL, D8, D6R XL, D7R, D9, D11, D7R II
- Compact Track Loaders: 299D3, 279D3
- Mini Excavators: 305.5E, 303.5C, 307D, 307E2, 303.5E, 303.5D, 307, 308E2, 305.5 GC, 305.5E2
- Wheel Loaders: 986H, 980, 834, 966, 950 GC, 950, 938K, 950L, 972H, 988K, 926M, 962L, RM500B, R1600H, R3000H, M314, 938M, 924K, 966K, R1700K, 966H, 980L, 972L, 950H, 836, R2900G, 966L, 980H, R1700G, R2900 XE, RM400, R1700 XE
- Off-Highway Trucks: 789D, 796 AC, 770G, 772G, 740 GC, 745C, 797F, 793D, 794 AC, 798 AC, 740B, 725C2, 740, 735, 725, 730, 773E, 793F, 785D, 745, 777E, 773, 777D, 785, 789, 777, 793
