Description

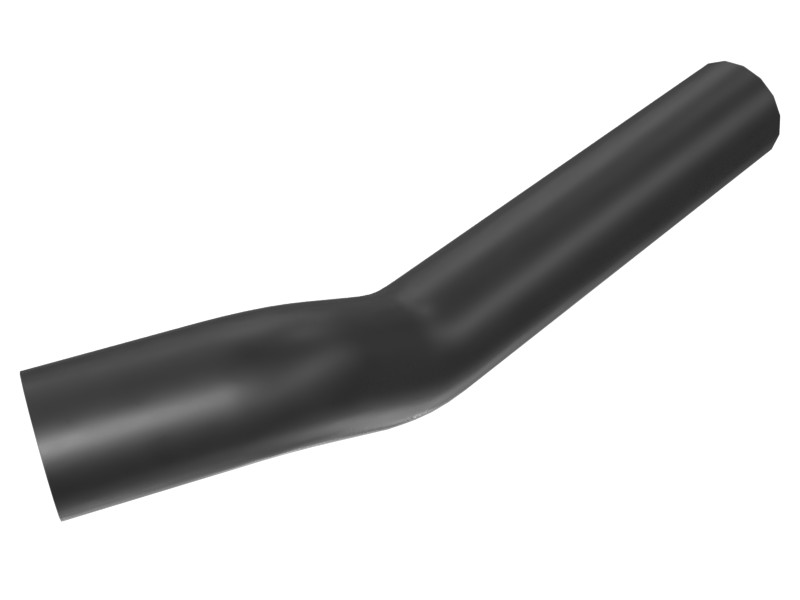

Cat air intake and smoke removal hose. This molded silicone hose connects to the turbocharger to complete the turbocharger-to-air cleaner ducting.
Features
- Air intake and smoke removal hose
- Molded reinforced silicone
- Hardness: 60
- Hose Inside Diameter: 75 mm (2.95 in)
- Length: 610 mm (24.02 in)
- Temperature Range: -40° C to 125° C (-40° F to 257° F)
- Maximum Working Pressure: 280 kPa
- Minimum Burst Pressure: 1110 kPa
Applications
Service part for the air intake and fume disposal system. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Other Hose |
|---|---|
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
Compatible Equipment
- Excavators: 330D L, 336D L, 336D2 L, 330D, 336D2 GC, 340D2 L, 340D L, 336D, 336D2
