Description

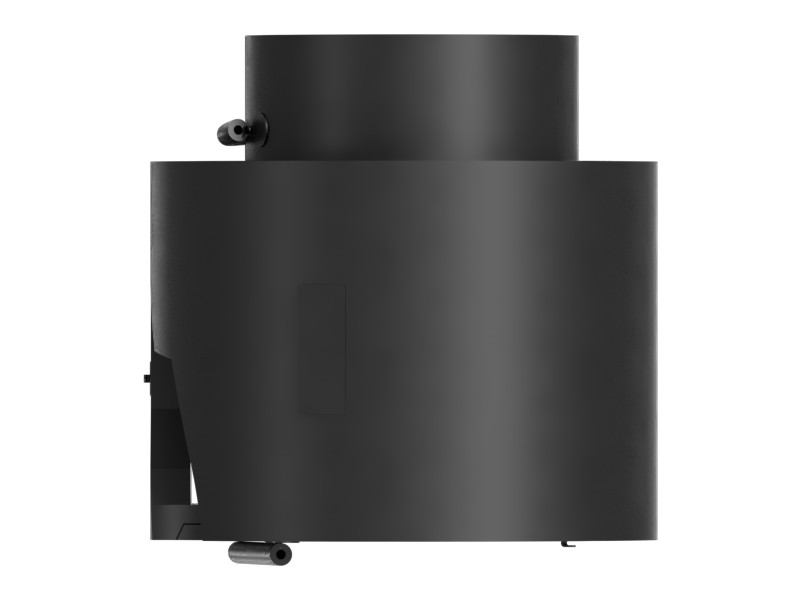

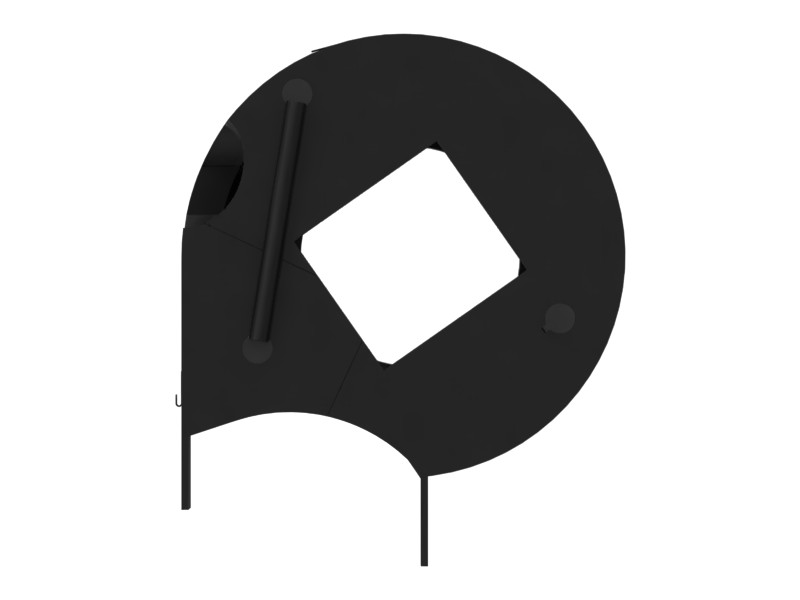

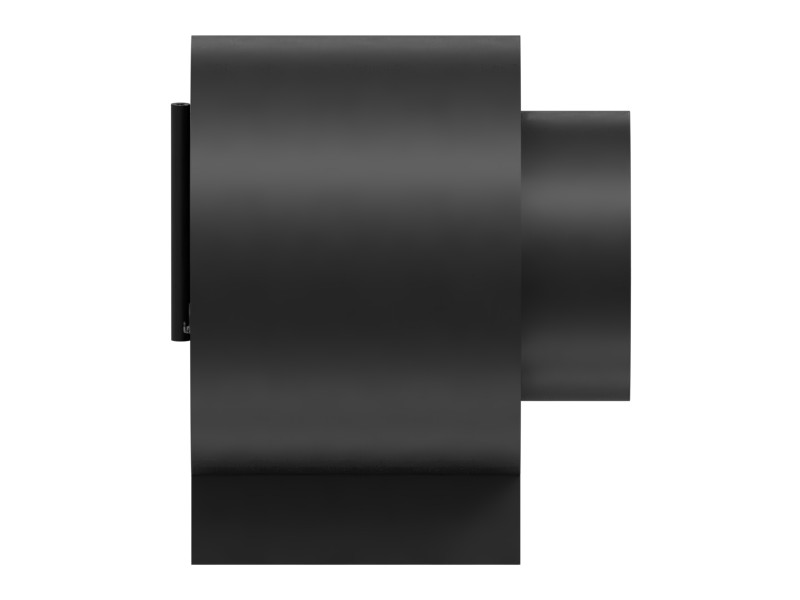

The heat shield (such as 230-2197) is mounted on the exhaust manifold to insulate sensitive engine components from high exhaust system temperatures. The heat shield uses a layer of fiber mat insulation on an Inconel backing plate, with a silicone-impregnated fiberglass cloth cover and hook and spring tethers.
The heat shield offers excellent durability, ease of assembly, convenience of service and maintenance, and thermal insulation performance.
Features
- Heat shield with hook and spring closure
- Fiber mat insulation on Inconel liner with silicone-impregnated fiberglass cloth cover
- Overall length: 320 mm (12.6 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Length | 320 mm (12.6 in) |
|---|
Compatible Equipment
- Excavators: 637E, 637G, 621G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
