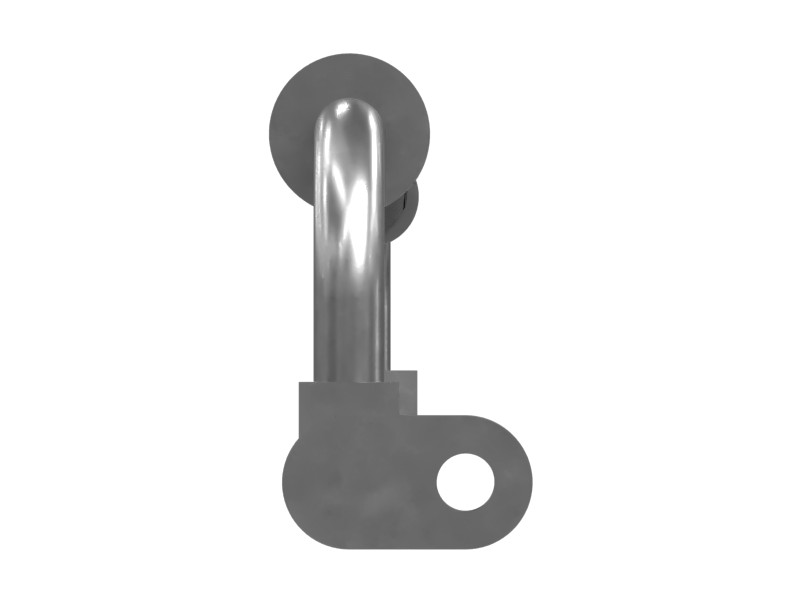

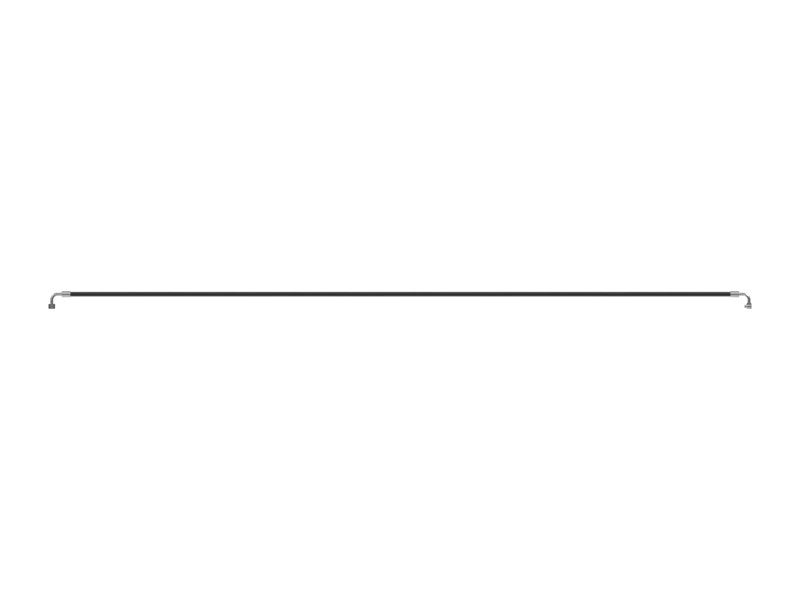

229-9124 8.5 mm ID Air Conditioning Line Hose Group
Cat® 8.5 mm ID Air Conditioning Line Hose Group with M16 Hex Nut on One End and 90 Degree Elbows on Both Ends for Operator Station
Description
Cat hose assemblies are designed to route liquids and gases through machine systems. These hose assemblies are made of quality materials built to withstand the application-specific pressure, vibration resistance and flow requirements of Cat heavy-duty equipment.
Features
- Hybrid assembly utilizing both flexible reinforced hose sections and rigid hose sections.
- Compressor inlet tube with hex swivel nut fitting
- Compressor outlet tube with fittings
- Flexible refrigerant hose
Applications
Cat hose groups are used in the HVAC systems of heavy-duty equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hose Inside Diameter | 8.5 mm (0.335 in) |
|---|---|
| Hose Type | Air Conditioning Hose |
| Material | Alloy Aluminum |
| Overall Length | 1287.5 mm (50.7 in) |
| Weight | 0.36 kg |
| Thread Size | M22X1.5 (Air Conditioning Inlet) mm |
Compatible Equipment
- Excavators: 349D L, 345D L, 345C L, 345C, 345D, 349D, 349D2 L, 349D2
