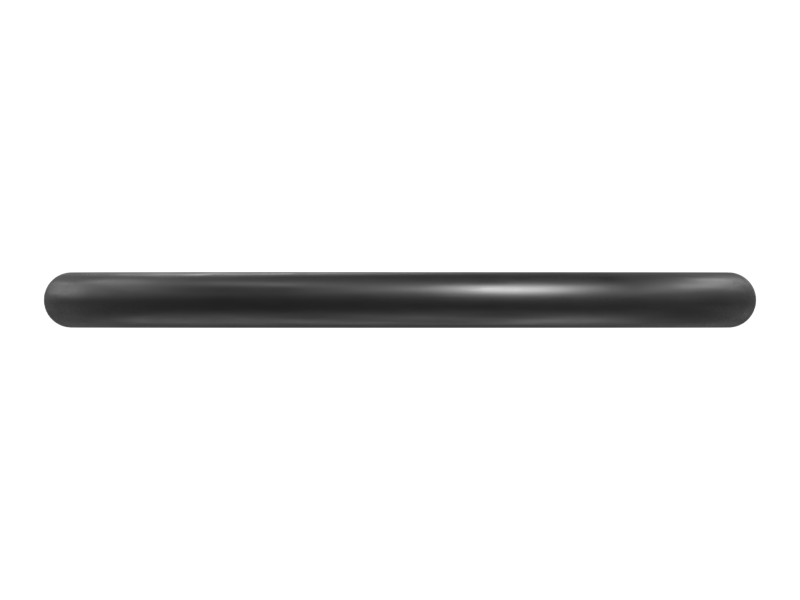

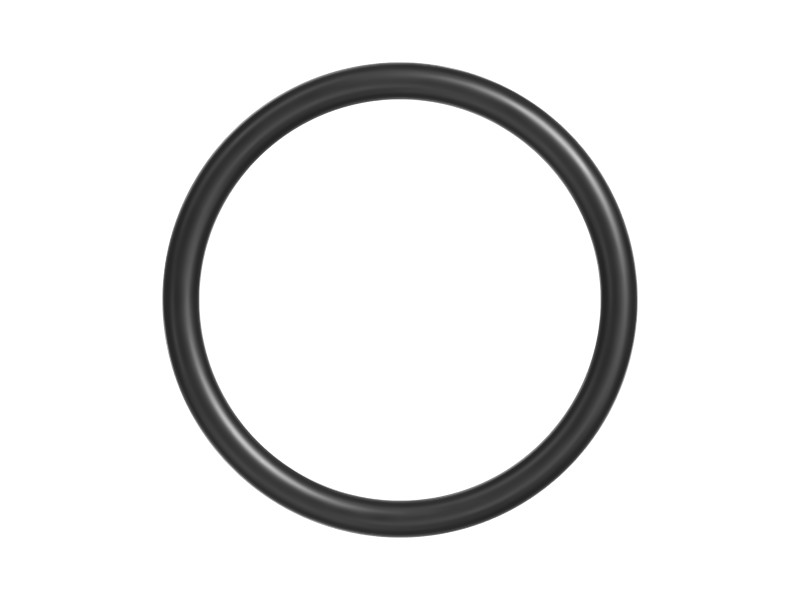

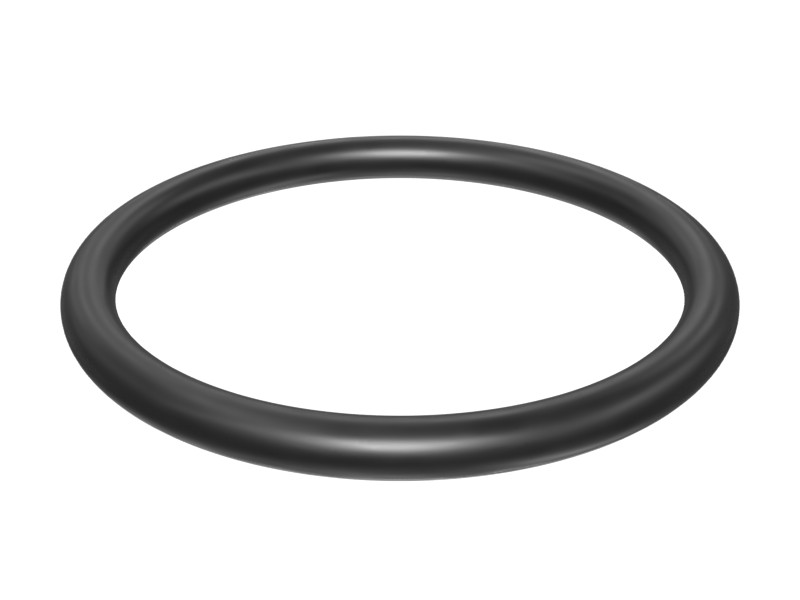

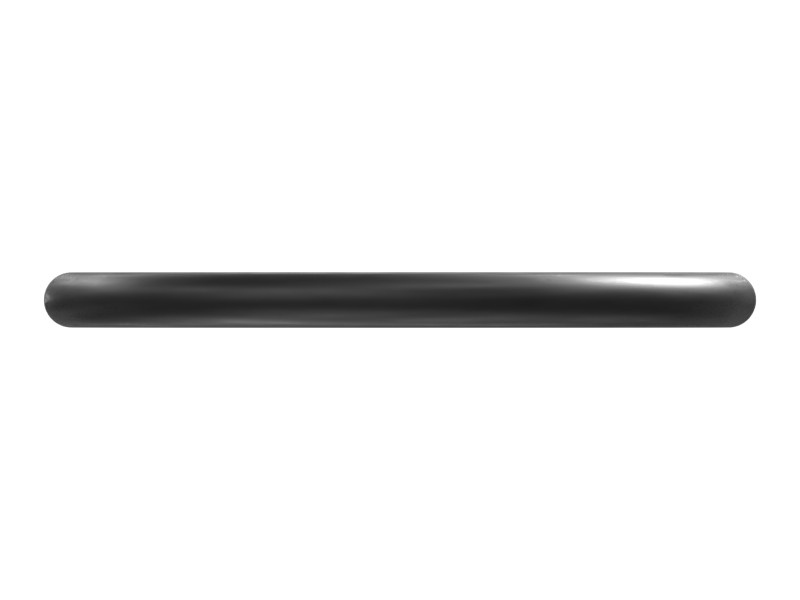

228-7092 22.5 mm OD O-Ring
Cat® fuel tube O-rings provide a reliable, leak-free connection at fuel tube joints
Description
OD-controlled O-rings are used in sealing applications where the seal outside diameter is the critical dimension.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat® seals protect your investment.
Applications
OD-controlled O-rings are used in many static and dynamic joints in Cat machines and engines, including ORFS (O-Ring Face Seal) and STOR (Straight Thread O-Ring) couplings and adapters.
Specifications
| Polymer | FKM (Fluorocarbon) |
|---|---|
| O-Ring Type | O-Ring Face Seal (ORFS) |
| Fitting Size | 1-3/16-12 in |
| Material Hardness | 90A |
| Cross-Section Diameter | 1.78 mm (0.07 in) |
| Inside Diameter | 18.94 mm (0.746 in) |
| Material | FKM |
Compatible Equipment
- Generator Sets: 3516C, 3512B, 3512E, C9, G3516C, G3516, C4.4
- Track Loaders: 834H, 826K, 994K, 990K, 993, 992, 973K, 953D, 995
- Cold Planers: PL72, TH255C, PM622, PM620, PL83, PL87
- Compactors: 825K, 834K, 824K, 816, 814, 815, CB-44B, CB10
- Engines: C32, C27, C175-16
- Excavators: 330, 320D2, 336D, 336D2, 390F L, 374F, 320D, 313 GC, 313, 330D L, 374, 349F L, 316 GC, 312D, 312F, 637K, 336, 350, 355, 352, 120 GC, 340, 6015, 3516B, 6020B, 6060, 3516E, 621K, 312D2 L, 313D2, 330GC, 320E, 325C L, 325C, 336D2 XE, 312D2, 336E L, 336F, 621H, 390F, 313 GX, 6040, 6030, 349, 312D L, 336F LN, 326, 330D, 336D2 L, 323D L, 314D CR, 320 GC, 318D2 L, 336D L, 320D FM, 320D L, 311D LRR, 315D L, 336E LH, 637G, 637E, 349E L, 352F, 340D L, 3512C, 340D2 L, 374F L, 6015B, 336 GC, 313F L, 312E, 323, 336F L XE, 320D2 GC, 349E L VG, 385C, 323GC, 345 GC, 320D3 GC, 312 GX, 316 GX, 313D, 336F L, 336E LN, 323D, 320, 314D LCR, 312E L, 313D2 GC, 329E L, 330 GC, 312D2 GC, 315, 315 GC, 312 GC, 318D2, 336D2 GC, 320D GC, 313D2-GC, 336E, 318D L, 395, 350MHPU, 333, 3508B
- Skid Steer Loaders: 24, 299D3 XE, 313D2 LGP, 289D3
- Motor Graders: 140 GC, 120, 14, 16M3, 18, 16, 349 GC
- Wheel Excavators: MD6200, MD6250, MD6310, M315GC, M315
- Dozers: D7, D11, D8R, D8T, D9T, D11T, D6T, D7E, D6R, D6N, D6R LGP, D8, D10R, D10T2, D10, D6R III, D7R, D6R XL, D4, D9, D10T, D6R II
- Compact Track Loaders: 279D3
- Wheel Loaders: 924K, 966K, 988K, 990H, 834, 938K, RM500B, R1700K, 926M, 836, 938M, 910, 988H, 986H
- Off-Highway Trucks: 785D, 793F, 796 AC, 789D, 770G, 793D, 775G, 794 AC, 772G, 797F, 798 AC, 745C, 793, 735, 730, 777E, 777, 789, 785, 740 GC, 745, 773, 773E, 725C2, 773F, 740, 740B, 7495, 777D, 725
