Description

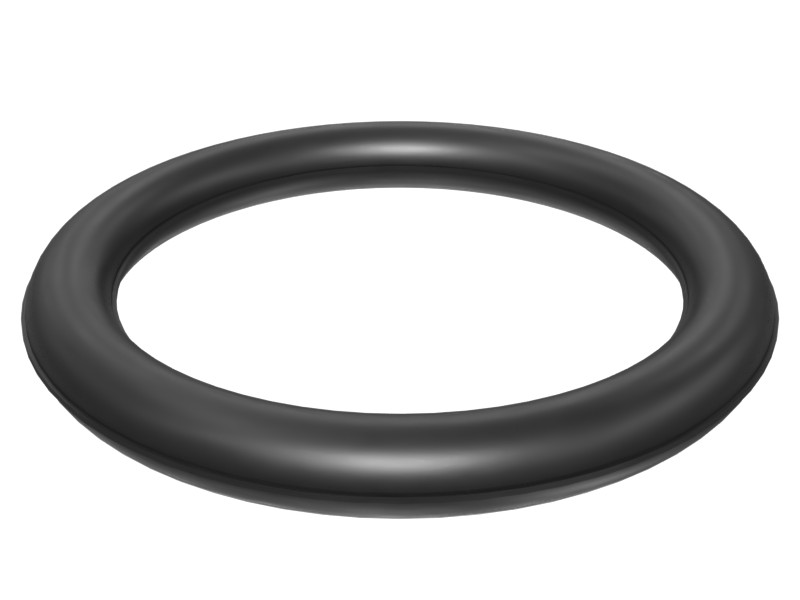

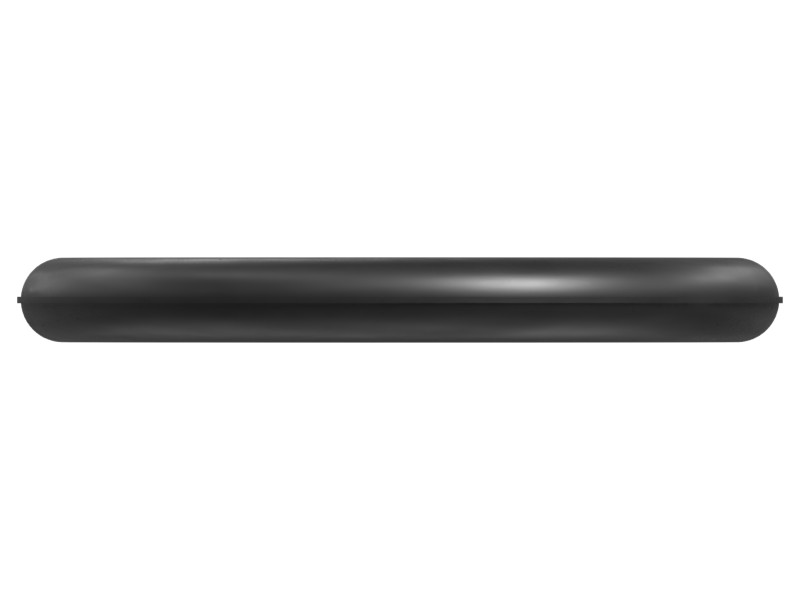

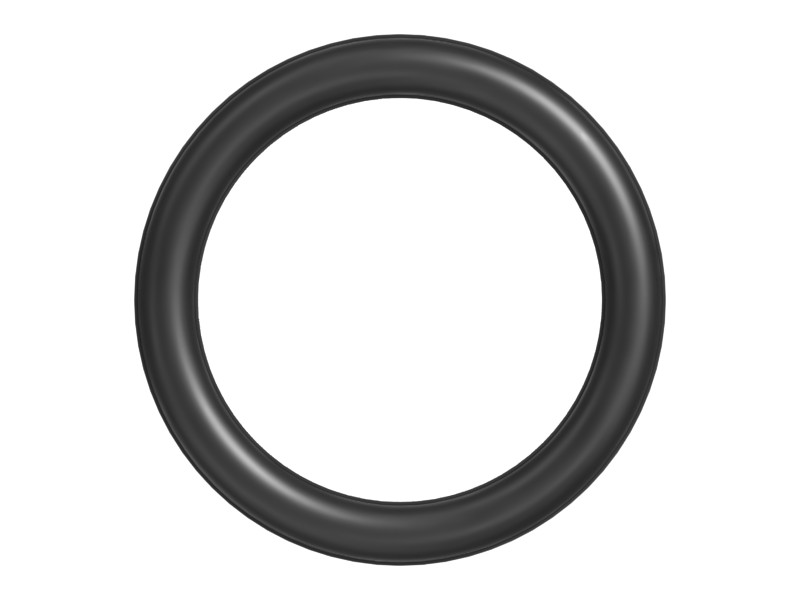

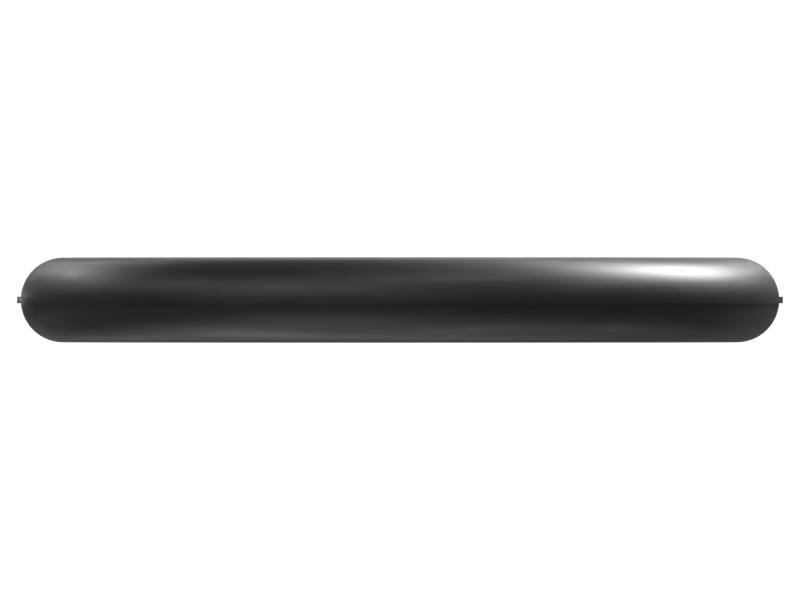

OD-controlled O-rings are used in sealing applications where the seal outside diameter is the critical dimension.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat® seals protect your investment.
Applications
OD-controlled O-rings are used in many static and dynamic joints in Cat machines and engines, including ORFS (O-Ring Face Seal) and STOR (Straight Thread O-Ring) couplings and adapters.
Specifications
| Polymer | FKM (Fluorocarbon) |
|---|---|
| Material Hardness | 90A |
| Dash Size | 014 in |
| O-Ring Type | O-Ring Face Seal (ORFS) |
| Fitting Size | 1 – 14 in |
| Cross-Section Diameter | 1.78 mm (0.07 in) |
| Inside Diameter | 12.47 mm (0.491 in) |
| Material | FKM |
Compatible Equipment
- Generator Sets: 3516C, C9, C7.1, 3512E, C4.4, G3516, 3512B, G3516C
- Track Loaders: 993, 994K, 826K, 824C, 826H, 990K, 995, 992, 972, 982, 973K
- Cold Planers: PM622, PM620, PL72, PL83, PL87, PM-200
- Compactors: CB1.7, CB1.8, CB-534D, C13B, 834K, 825K, 824K, C9.3B, 815, 816, 814, CW-16, CS-563E, CB-44B, C-9, CB10
- Engines: C15, C32, C7, C13, C27, C11, C18, C175-16
- Excavators: 336D, 308E, 329D, 303.5E2 CR, 349D, 390F L, 349D2, 374F, 349D2 L, 305E2 CR, 330D L, 349F L, 374, 6020B, 350, 340, 395, 330D, 336E L, 336F LN, 330C L, 336, 336F, 336F L, 328D LCR, 336E, 336E LH, 325D L, 329D L, 336D L, 330C, 657G, 637K, 325D, 336D2 L, 320D FM, 323D L, 324D L, 336F L XE, 324D, 336E LN, 326D L, 637G, 637E, 621K, 349E L VG, 345D, 349E L, 621H, 6015B, 6060, 3512C, 345C, 3516E, 349E, 345C L, 352F, 374F L, 349D L, 345 GC, 352, 345D L, 6030, 349, 390F, 621G, 385C, 3516B, 3101, 6040, 120 GC, 6015, 340D L, 336E H, 355, 320D3, M325D L MH, XQP200, 3508B, 350MHPU
- Asphalt Pavers: AD45, AP655F, AP-600D, AP655F L, AD30, AP355F, AP300F, AD63
- Skid Steer Loaders: 3126B, 24, 226D3, 236D3, 232D3
- Motor Graders: 140K, 14, 120, 16M3, 16M, 16, 12K, 160K, 140G, 14M, 18, 140 GC, 12H
- Wheel Excavators: MD6200, MD6250, MD6310, M320, M315GC, M315
- Dozers: D11, D10T2, D11T, D3K2 LGP, D9R, D10N, D11R, D7, D8, D10, D6R II, D8N, D7E, D6R III, D6T, D9T, D6T LGP, D8T, D1, D5K2 XL, D9, D8R, D6R, D7R, D10T, D9L, D6N, D8L, D6R XL, D6R LGP, D7R II, D10R, D9N
- Mini Excavators: 305E2, 305.5E2, 308, 307E2
- Wheel Loaders: 988K, 966H, 972L, 962L, 950L, 906K, 950H, 980H, 966K, 966L, 972H, 980L, 986H, 990H, 966F, 988F, 992C, 938K, 966, 980, 950, R1300G, RM400, 938M, M314, 926M, 924K, RM500B, R1700 XE, 992D, R1600H, R2900 XE, R1700K, R1700G, 834, R2900G, 836
- Off-Highway Trucks: 796 AC, 798 AC, 793D, 777, 745, 740 GC, 793F, 740, 785, 773E, 797F, 770G, 794 AC, 785D, 725, 730, 789D, 735, 772G, 775G, 725C2, 771D, 773D, 745C, 740B, 793, 789, 773, 777E, 773F
