Description

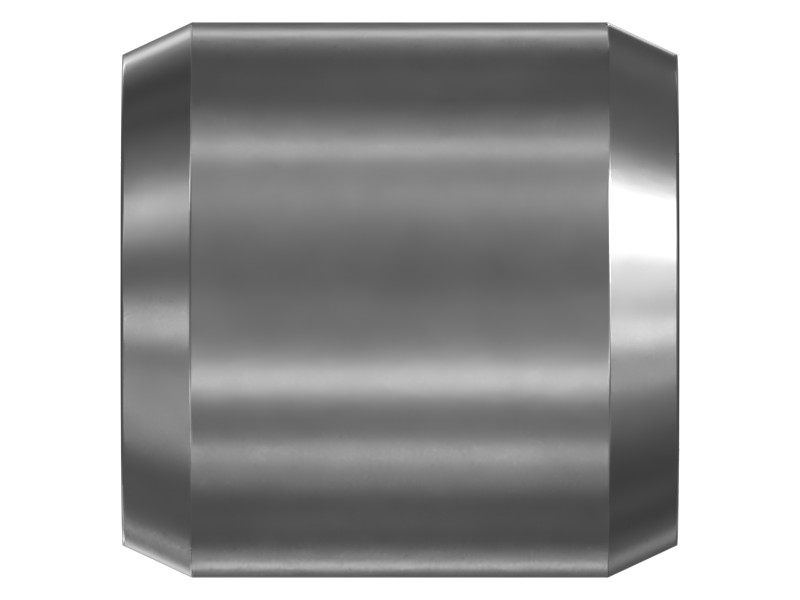

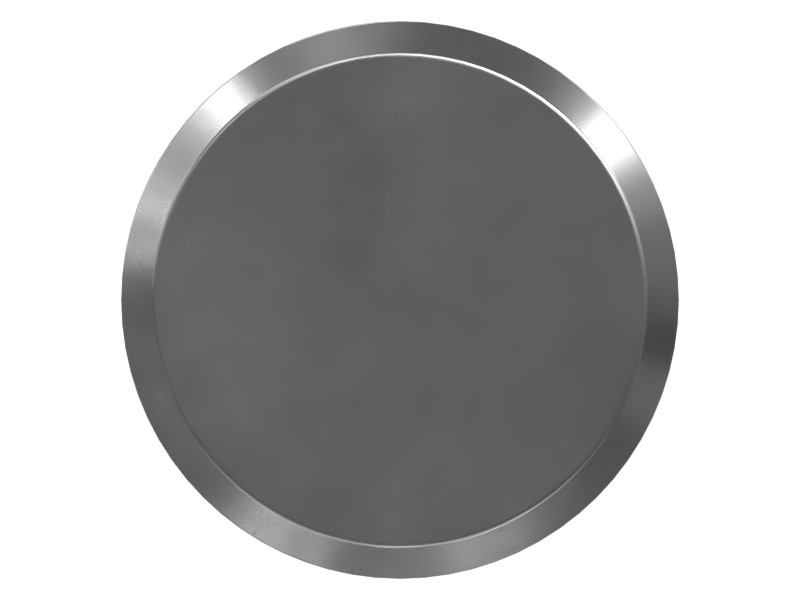

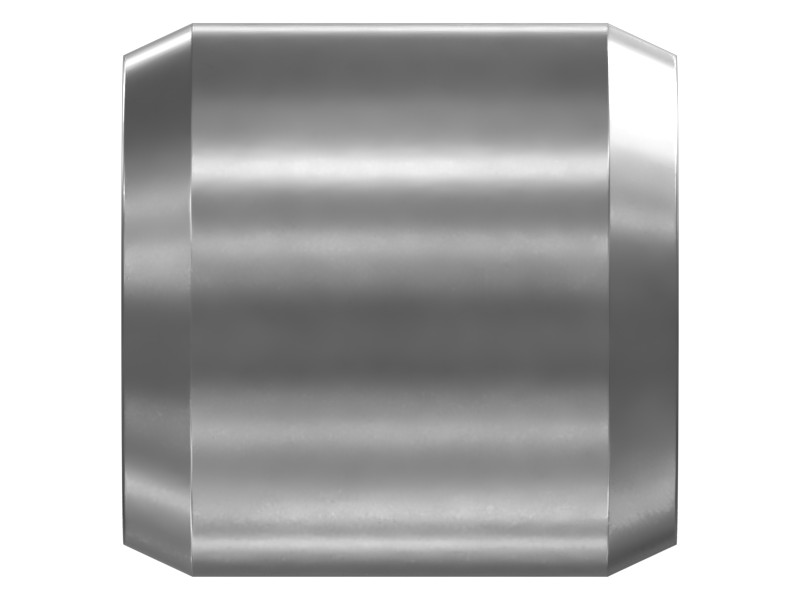

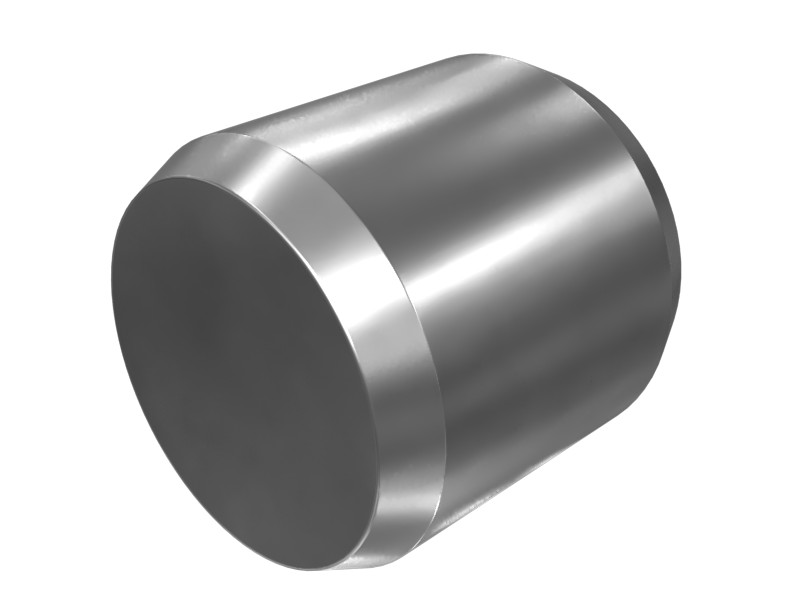

An internally threaded pin is a fastener that combines the functions of a pin and a threaded fastener. It has a smooth cylindrical body, like a typical pin, but with an internally threaded hole through its center. The internal thread of the pin allows it to be screwed onto the mating component, providing a secure, precise connection. The smooth outer surface of the pin helps align the components to be connected, while the threaded bore provides a secure, reliable connection.
Attributes
- Internal threads make it easy to disassemble and reassemble the joint.
- Maintains precise alignment, is easy to insert, absorbs hole tolerances, and prevents interlocking.
Applications
The internally threaded pin aligns and provides a secure, firm connection.
Specifications
| Material | — |
|---|---|
| Pin Length | 13 mm (0.512 in) |
| Pin Type | Dowel Bushing |
| Pin Outside Diameter | 13.01 mm (0.512 in) |
| Pin Inside Diameter | 4.3 mm (0.169 in) |
Compatible Equipment
- Excavators: 330D L, 325C, 330C, 330C L, 330D, 328D LCR
