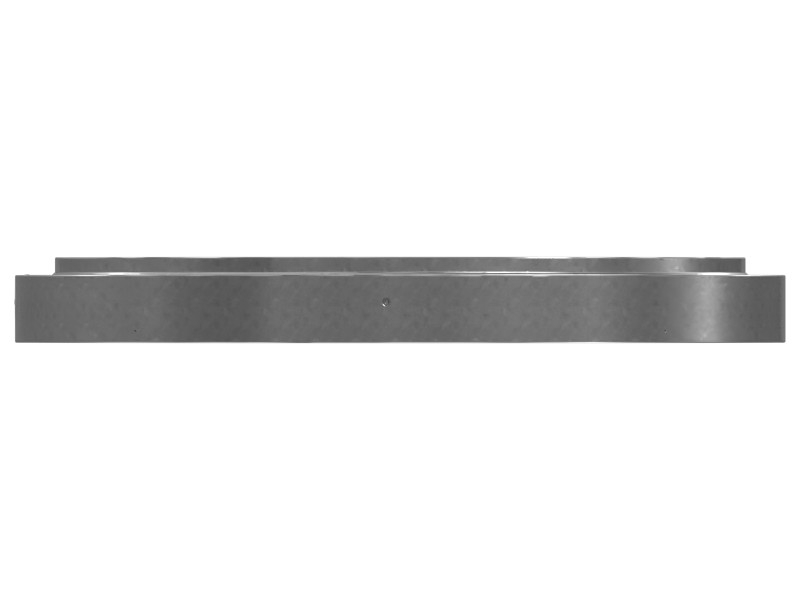

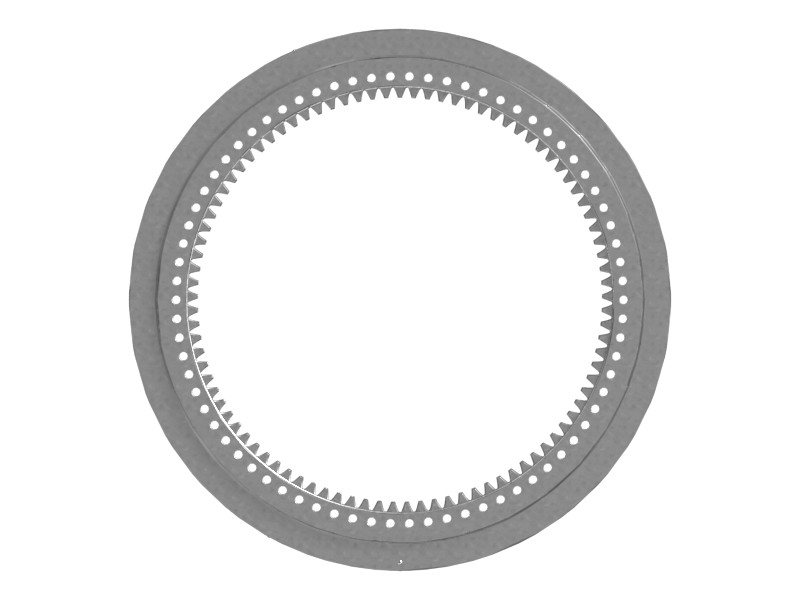

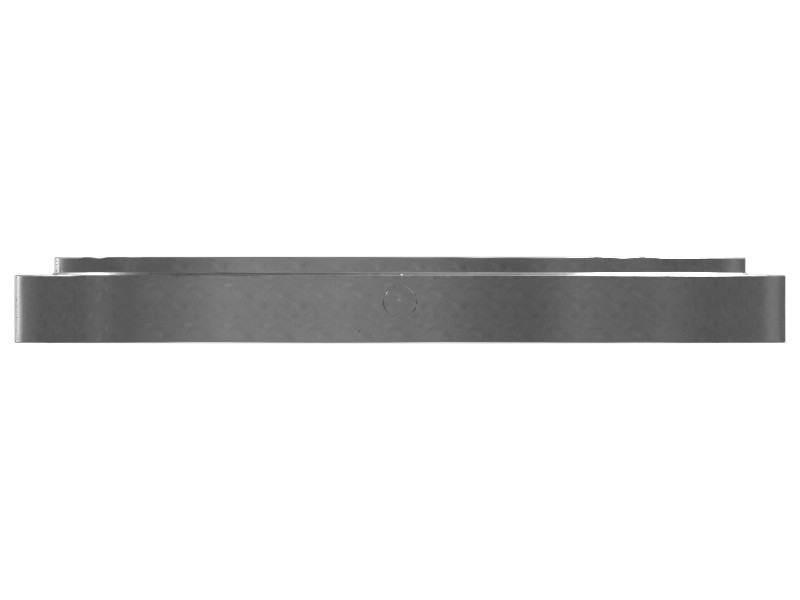

227-6099 Swing Gear and Bearing Assembly
Cat® 93 Tooth Swing Gear and Bearing Assembly, Pitch Circle Diameter: 1488 mm
Description
Part number 227-6099 provides the swing gear and bearing for the swing drive system that supports the upper frame on certain excavator models and transmits torque between the upper frame and the cab housing.
Features
- The swing gear and bearing assembly includes the ring gear, bearing, adapter, cover, and seal
- Number of Internal Spur Gear Teeth: 93
- Spur Gear Pitch Diameter: 1488 mm (58.583 in)
- Inside Diameter: 1456.203 mm (57.331 in)
- Outside Diameter: 1950 mm (76.772 in)
- Length: 215 mm (8.465 in)
- Weight: 1481 kg (3265 lb)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 1456.20 mm (57.3 in) |
|---|---|
| Length | 215 mm (8.5 in) |
| Outside Diameter | 1950 mm (76.77 in) |
Compatible Equipment
- Excavators: 385C, 390D, 390F, 385C FS, 395, 3101, 385C L, 390F L, 390D L
