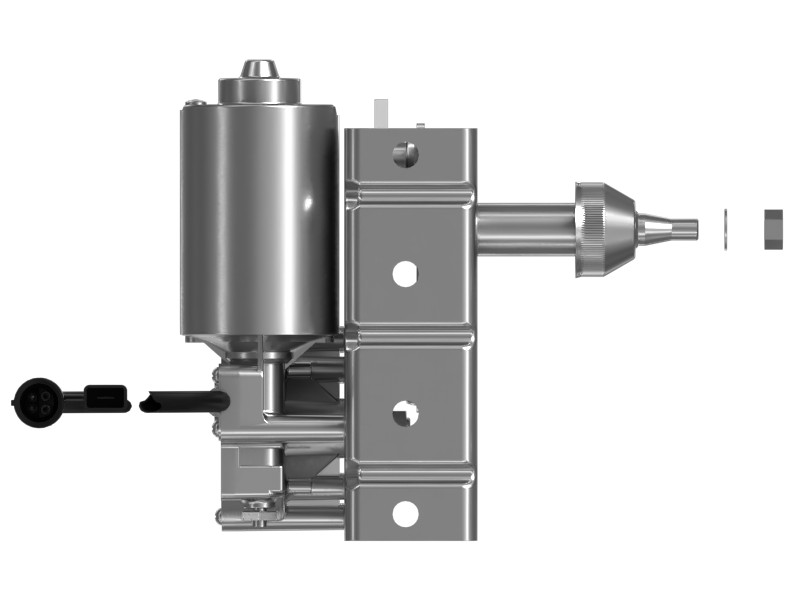

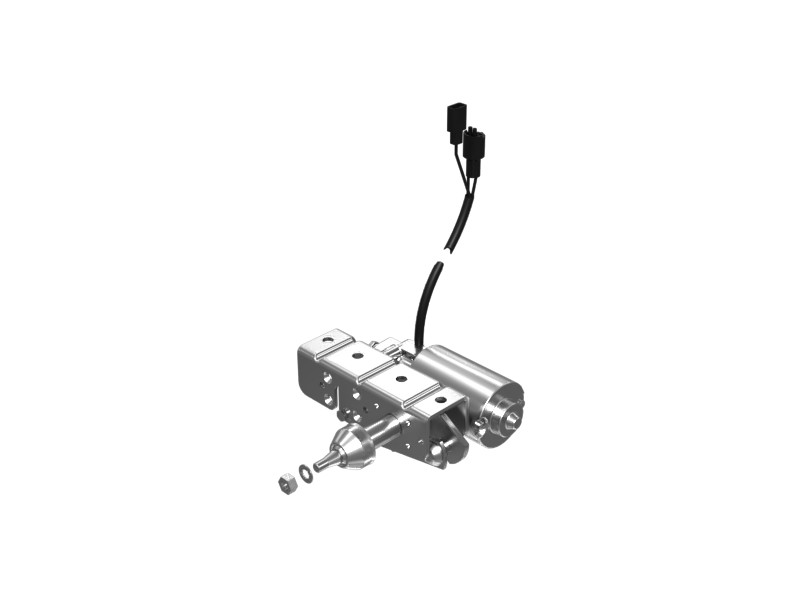

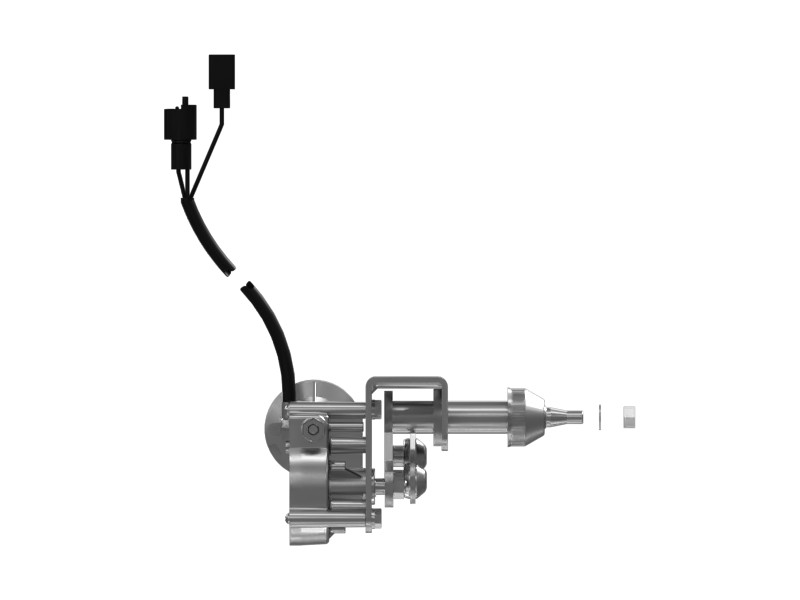

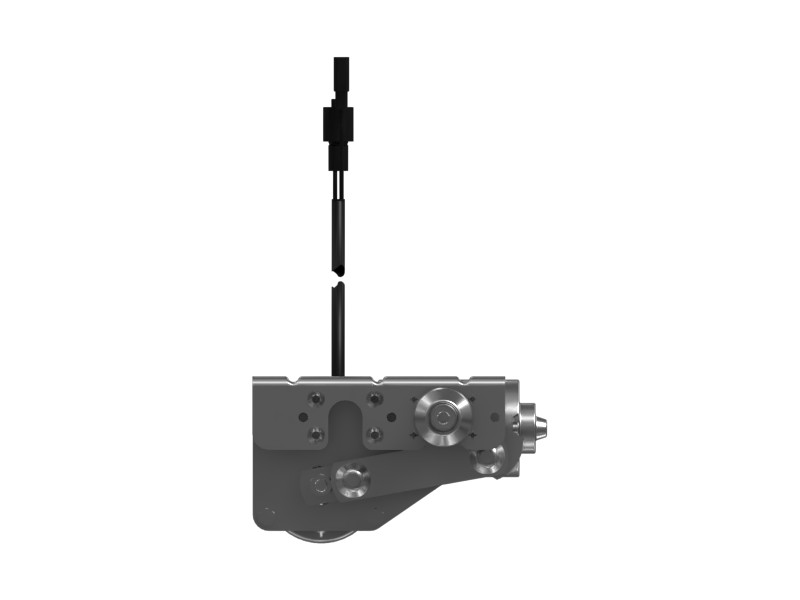

226-1892 24 Volt Window Wiper Motor
Cat® Windshield Wiper Motor Group (24 V)
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat windshield wipers clear rain and debris so the operator can see the surroundings clearly in extreme conditions. Because the wiper is a safety device, it should be inspected regularly and replaced as needed so the equipment performs as intended.
Features
- 68 degree sweep
- Includes nut, lock washer, and cover
Applications
Cat wiper motor groups consist of a wiper motor with linkage or gears that converts rotary motion to linear motion at the drive nut to drive the wiper arms in the windshield wiper system. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Remarks | 2-Speed |
|---|---|
| Overall Height | 103 mm (4.1 in) |
| Connector Type | 2 Plugs, 2 Sockets, and Ground |
| Overall Width | 181 mm (7.1 in) |
| Overall Length | 172 mm (6.8 in) |
Additional information
| Part Source | Genuine OEM |
|---|
