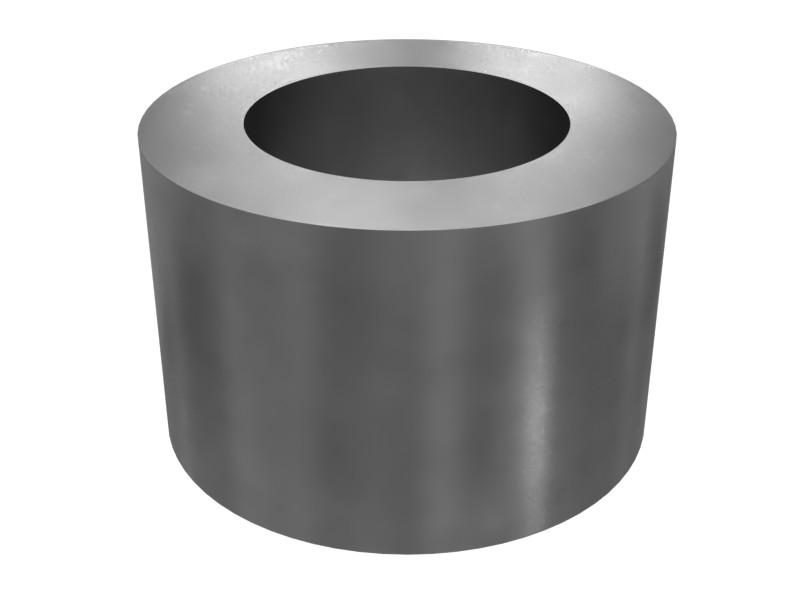

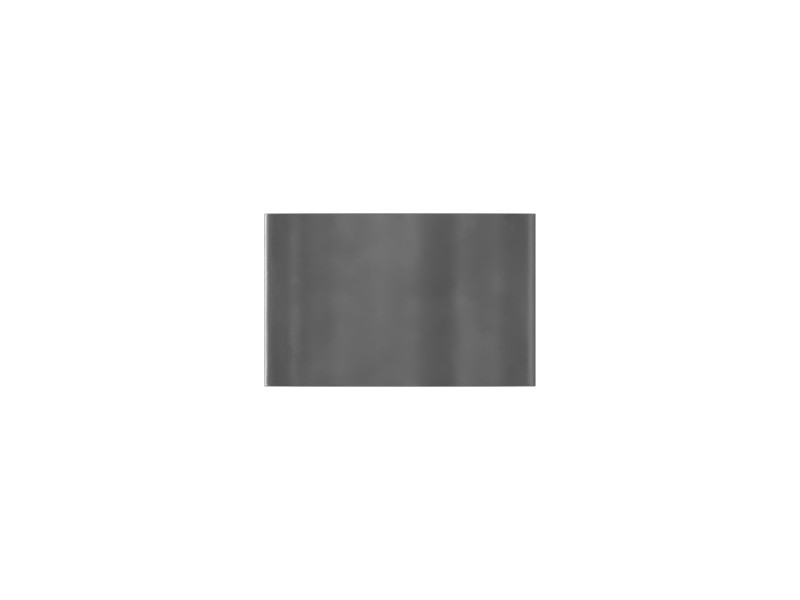

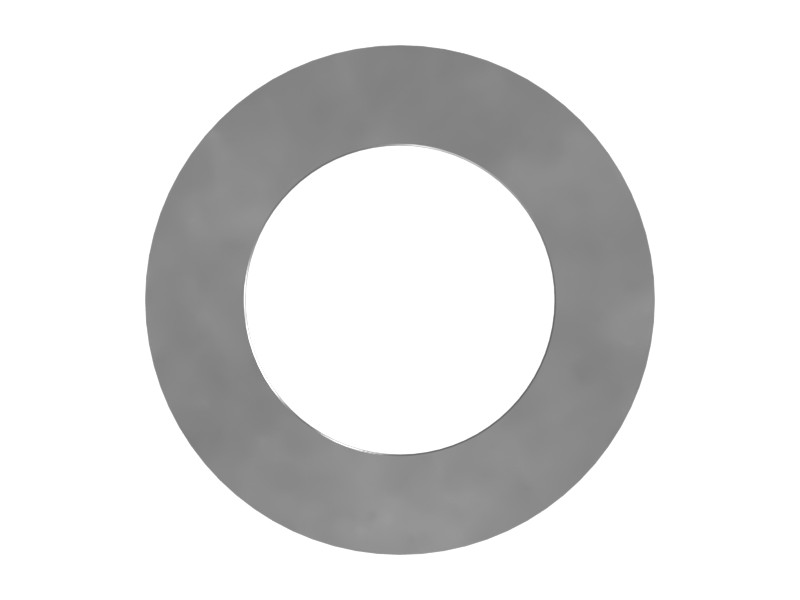

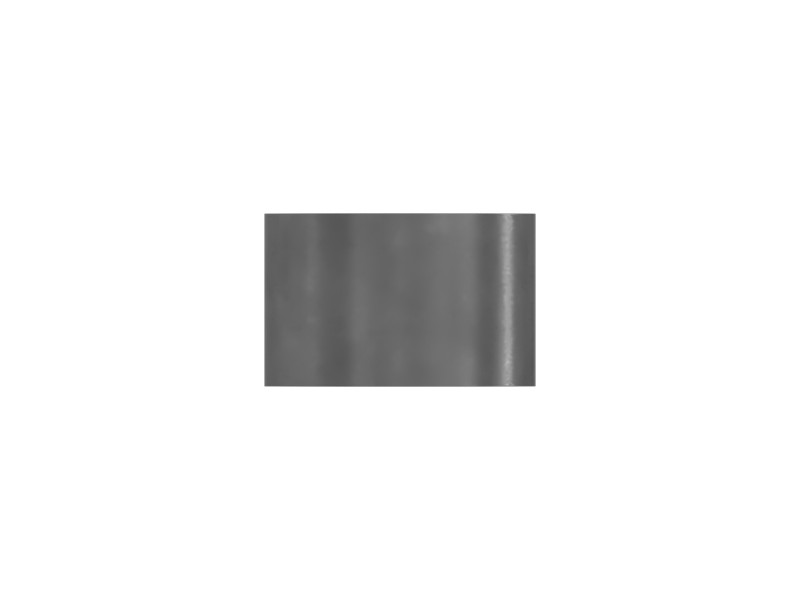

225-9199 14 mm Thick Steel Shim
Cat® shim sits under the bolt head to distribute pressure when tightening or provide equalization between two surfaces.
Description
A shim is a thick ring made of metal, rubber, or plastic that is held under a nut or bolt head to spread pressure or provide equalization between two surfaces when tightened.
Features
- Material: Steel
- Plating: Zinc
- Outside Diameter: 22 mm (0.86 in)
- Inside Diameter: 13.5 mm (0.53 in)
- Length: 14 mm (0.55 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Zinc |
|---|---|
| Length | 14 mm (0.55 in) |
| Center Hole Shape | Non-Threaded |
| Gasket Type | Flat |
| Outside Diameter | 22 mm (0.86 in) |
| Inside Diameter | 13.5 mm (0.53 in) |
| Thickness | 14 mm (0.551 in) |
| Coating | Zinc |
Compatible Equipment
- Generator Sets: 3516C
- Track Loaders: 973K, 834H
- Cold Planers: PL72
- Motor Graders: 16, 18, 16M3
- Compactors: CS-54, CS-56
- Engines: C32, C15, C18
- Dozers: D6T, D6T LGP
- Excavators: 3516B
- Wheel Loaders: 988H, 986H, 990H, 980H
- Off-Highway Trucks: 793, 797F, 745C, 794 AC, 796 AC, 793F, 725C2, 798 AC
- Asphalt Pavers: AD63
Additional information
| Machine Model | 16, 16M3, 18, 3516B, 3516C, 725C2, 745C, 793, 793F, 794 AC, 796 AC, 797F, 798 AC, 834H, 973K, 980H, 986H, 988H, 990H, AD63, C15, C18, C32, CS-54, CS-56, D6T, D6T LGP, PL72 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
