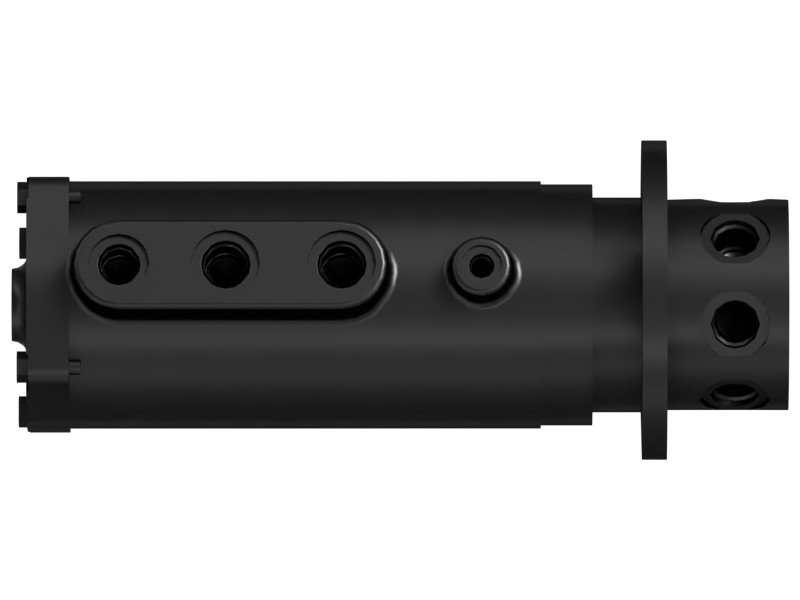

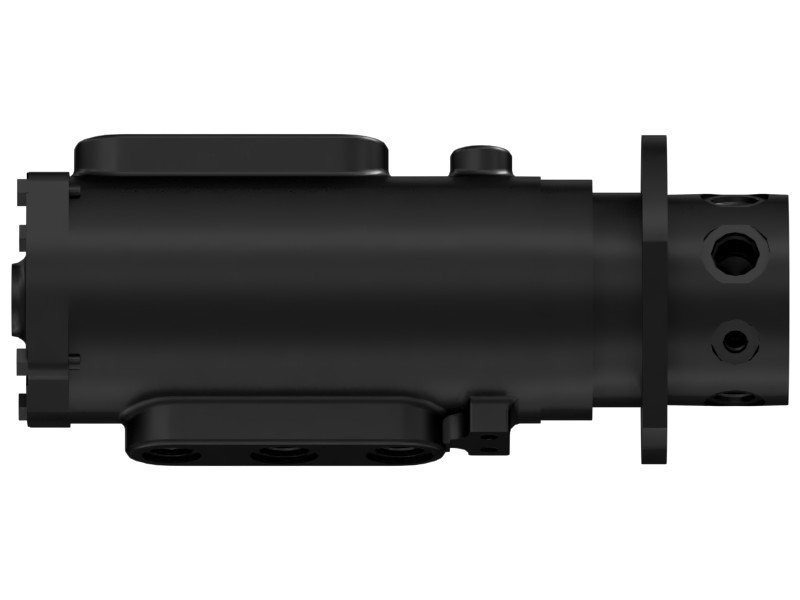

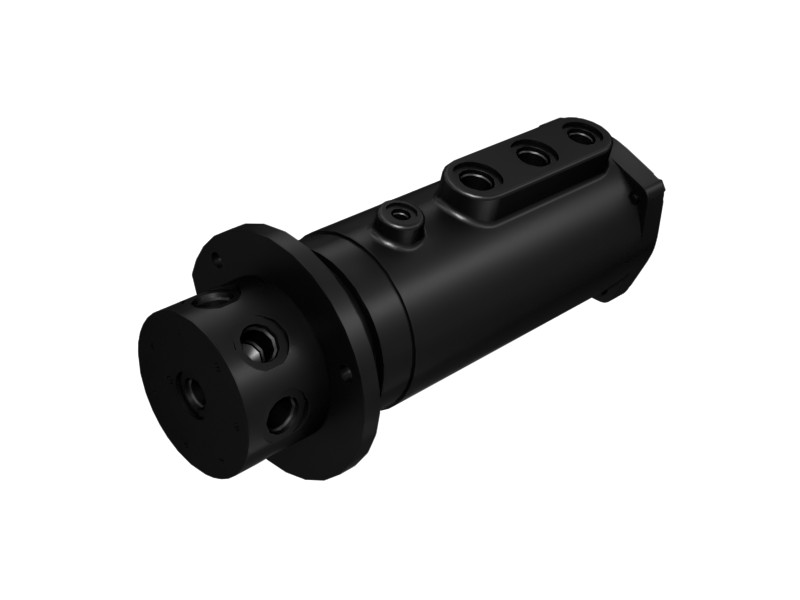

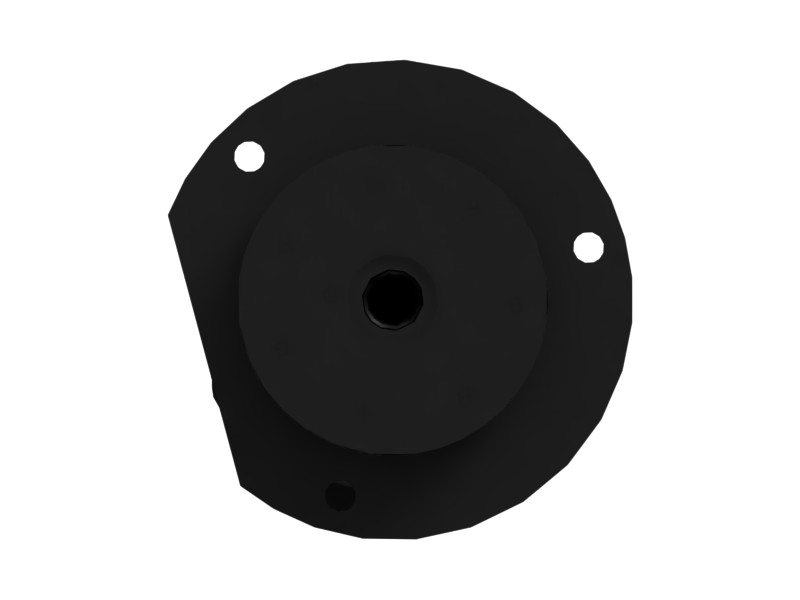

225-4367 8-Port Hydraulic Swivel
Cat® 8-Port Hydraulic Swivel Joint enables fluid flow and continuous rotation.
Description
The hydraulic swivel operates on fluid dynamics principles, allowing hydraulic oil to be transferred between rotating and stationary interfaces. This allows hydraulic power and control signals to be transmitted while accommodating rotational movement.
Attributes
- Withstands high hydraulic pressure
- Minimizes wear on hydraulic hoses and connections during rotational movement
- Built to exact specifications for durability and reliability
Applications
The hydraulic swivel joint is used to carry hydraulic oil between stationary and rotating components, enabling continuous, unrestricted rotation while maintaining the hydraulic connection.
Specifications
| Material | Ductile (Spheroidal) Iron |
|---|
Compatible Equipment
- Mini Excavators: 307C, 307E2, 307D, 307, 308E2
- Excavators: 307E, 308E, 308D
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
