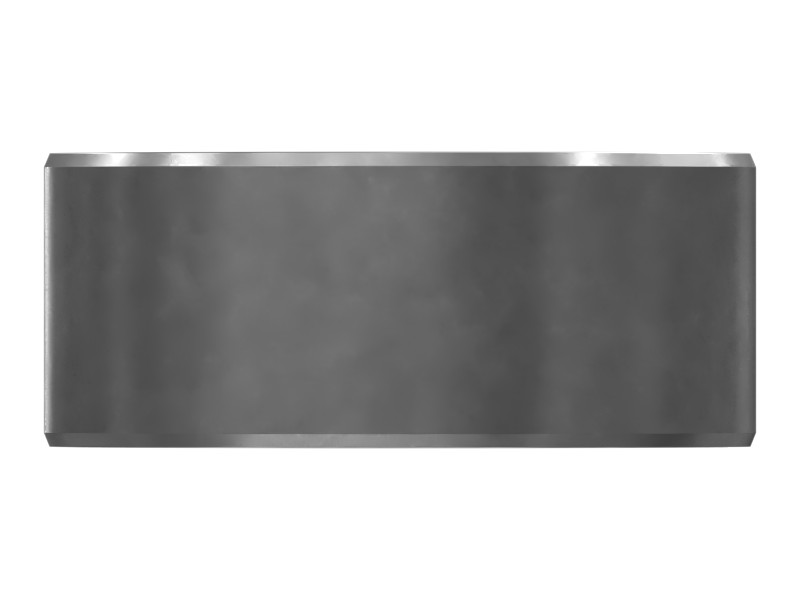

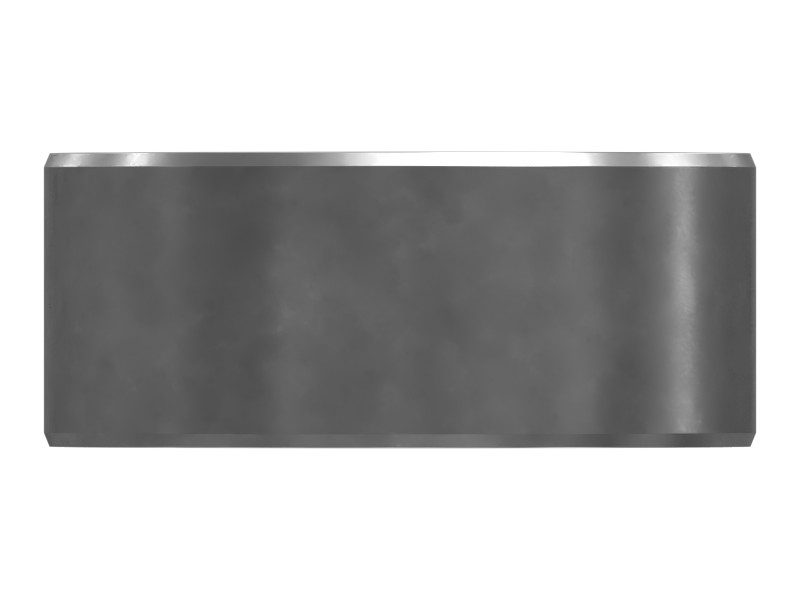

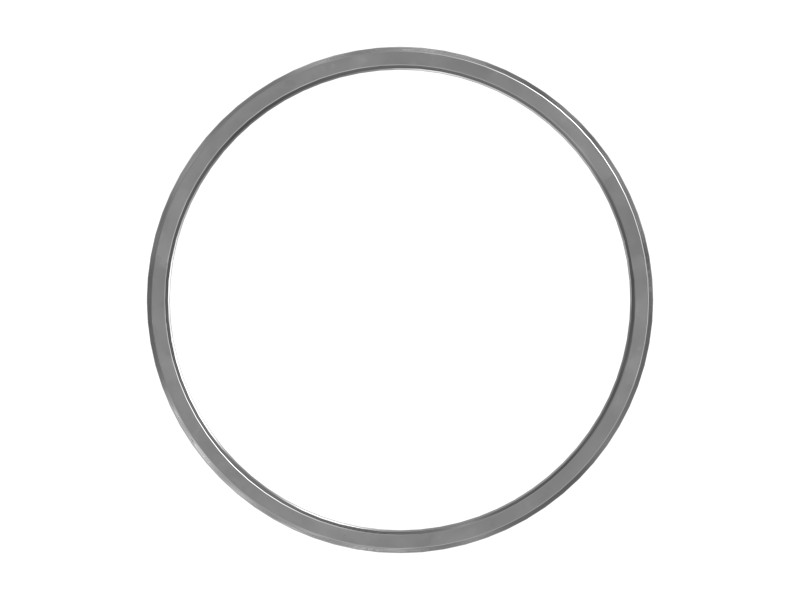

224-9664 Bearing Sleeve
The sleeve bearing is an important component of the cylinder block, which serves as the main body of the engine.
Description
Cat® parts are built to exact specifications and are durable, reliable, efficient, environmentally friendly and reusable
Specifications
| Unique Features | No |
|---|---|
| Ferrule Outside Diameter | 77.165 mm (3.038 in) |
| Ferrule Inside Diameter | 70.765 mm (2.786 in) |
| Type | Straight Sleeve |
| Inside Diameter | 71 mm (2.79 in) |
| Outside Diameter | 77 mm (3.04 in) |
| Overall Length | 32 mm (1.25 in) |
| Internal Groove | Yes |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Track Loaders: 993, 990K, 992
- Wheel Excavators: MD6250, MD6310
- Engines: C27, C32
- Dozers: D10, D11T, D11R, D10N, D10T2, D11, D10R, D10T, D6T
- Excavators: 6015B, 6020B, 6030, 6040, 6015
- Wheel Loaders: 992K
- Off-Highway Trucks: 777, 777D, 773F, 777E, 775G, 773
- Asphalt Pavers: AD63
- Skid Steer Loaders: 24
Additional information
| Machine Model | 24, 6015, 6015B, 6020B, 6030, 6040, 773, 773F, 775G, 777, 777D, 777E, 990K, 992, 992K, 993, AD63, C27, C32, D10, D10N, D10R, D10T, D10T2, D11, D11R, D11T, D6T, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Engines |
| Part Source | Genuine OEM |
