Description
The Cat hose assembly connects to the engine intake manifold and to the lubricating oil return circuit of the engine sump and crankcase. The Cat hose assembly circulates the hot air and oil mixture in the turbocharger and helps cool the turbocharger.
Features
The group includes a bellows, tie-down flange, head flange, flange, and tube
Applications

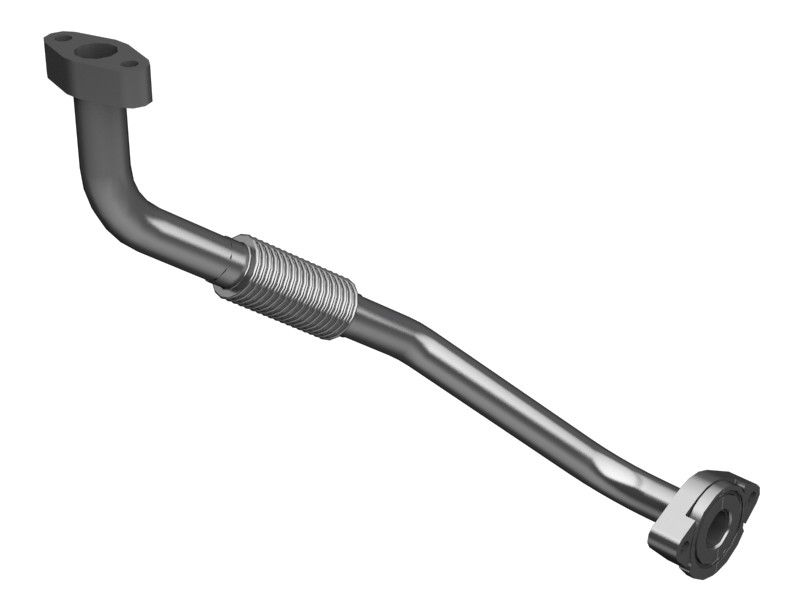

The Cat oil drain tube assembly drains oil from the turbocharger. Refer to your Owner's Manual or contact MECHSC for more information.
Specifications
| Material | Stainless Steel |
|---|---|
| Length | 508 mm (20 in) |
| Material Description | Steel |
| Height | 81.3 mm (3.2 in) |
| Overall Length | 508 mm (2 in) |
| Overall Width | 165.1 mm (6.5 in) |
| Width | 165.1 mm |
| Overall Height | 81.28 mm (3.2 in) |
Compatible Equipment
- Motor Graders: 16M, 14M
- Engines: C13, C11
- Excavators: 349, 345D L, 349D L, 345C, 345C L, 345D, 352, 355, 349D
- Wheel Loaders: R1600H, R1700G
- Off-Highway Trucks: 730, 725
