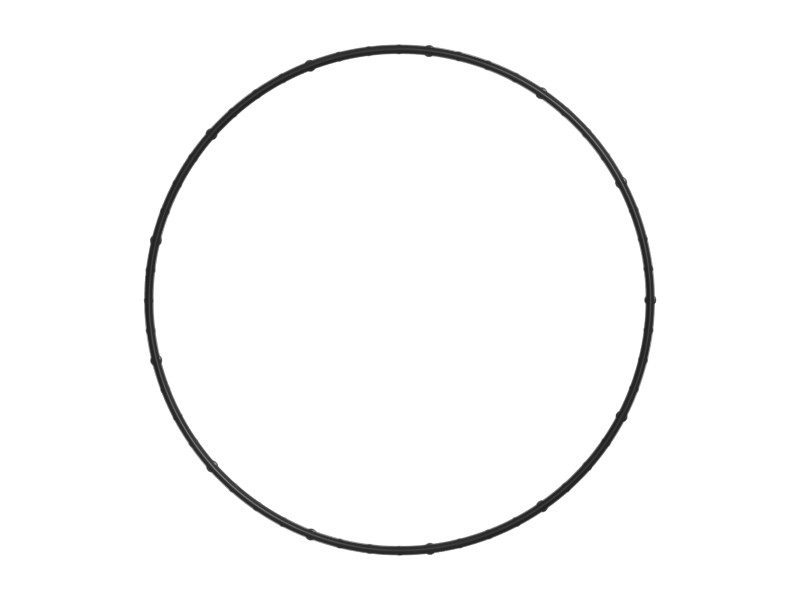

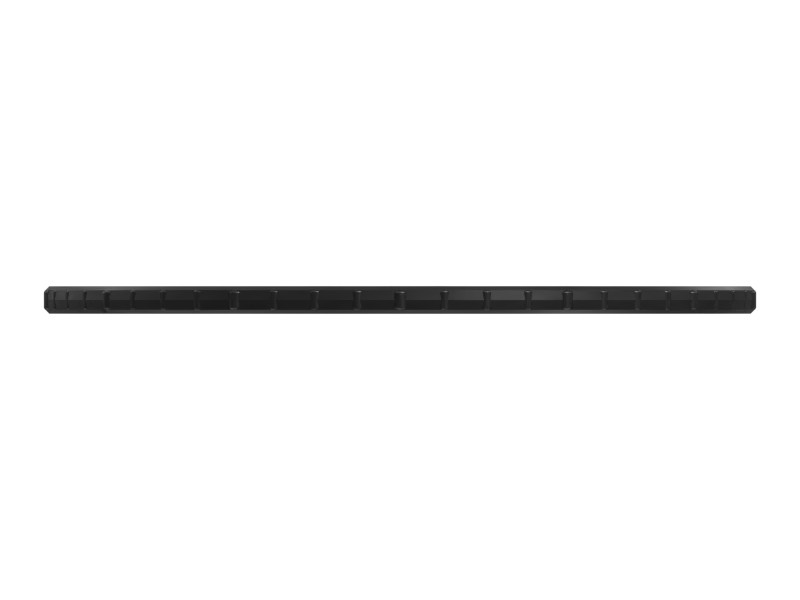

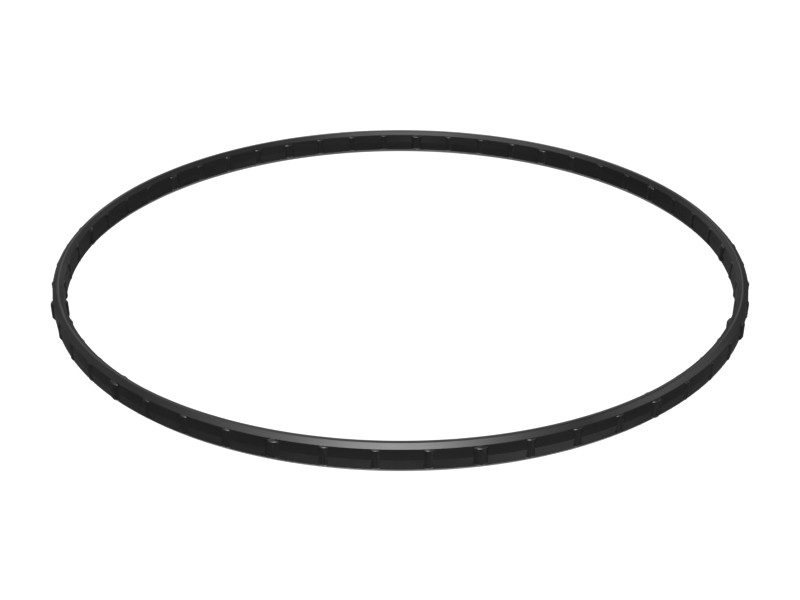

224-6360 133.18 mm ID Pressure Seal
Cat® pressure seal for engine oil coolers ensures optimal cooling efficiency and engine performance
Description
Press-in seals stay fixed in the groove to improve assembly performance and prevent leakage and contamination. They are a custom design specific to the application requirements.
Features
Press-in seals are made of materials compatible with the fluids, temperatures, and pressures in Cat® engines and machines. These materials resist abrasion and extrusion and give the seals excellent compression set resistance.
Cat® sealing systems go through a robust design, testing and validation process. Protect your investment with the latest Genuine Cat® seals.
Applications
Press-in seals are widely used in many static joints on Cat® engines and machines. They are specifically designed for inverted or vertical assemblies.
Specifications
| Seal/O-Ring Type | PIP |
|---|---|
| Overall Length | 140 mm |
| Overall Width | 140 mm |
| Cross-Section Height | 5.7 mm (0.22 in) |
| Cross-Section Width | 2.5 mm (0.1 in) |
| Inside Diameter | 140 mm (5.5 in) |
| Material | EPDM |
| Material Description | EPDM rubber has a service temperature of -55 to 121C and resists air, water and glycol fluids such as engine coolant and diesel exhaust fluid. EPDM rubber is not recommended for applications requiring resistance to fuel, gasoline, diesel fuel and lubricants. |
Compatible Equipment
- Motor Graders: 16M, 14M
- Engines: C11, C13
- Dozers: D8N
- Excavators: 349D L, 345D L, 345C L, 345C, 345D, 349D
- Wheel Loaders: 966H, 972H, R1700G
- Off-Highway Trucks: 730, 725
