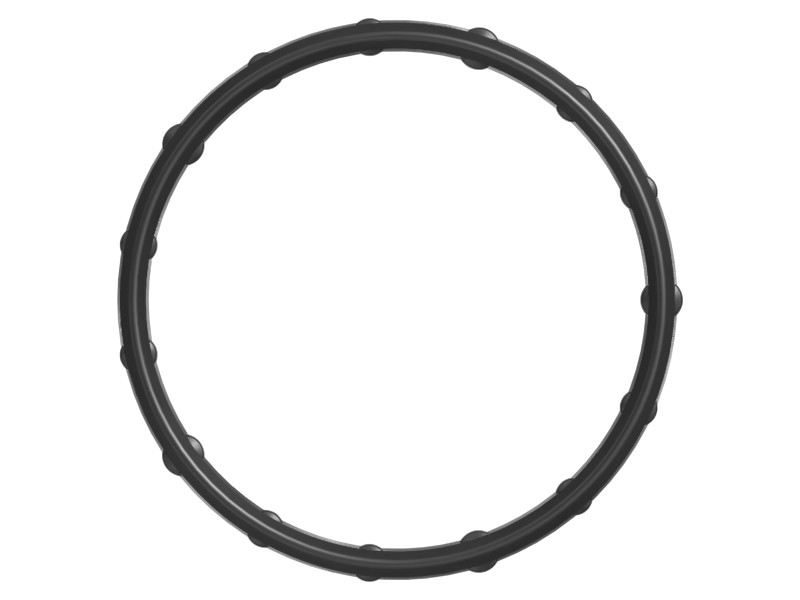

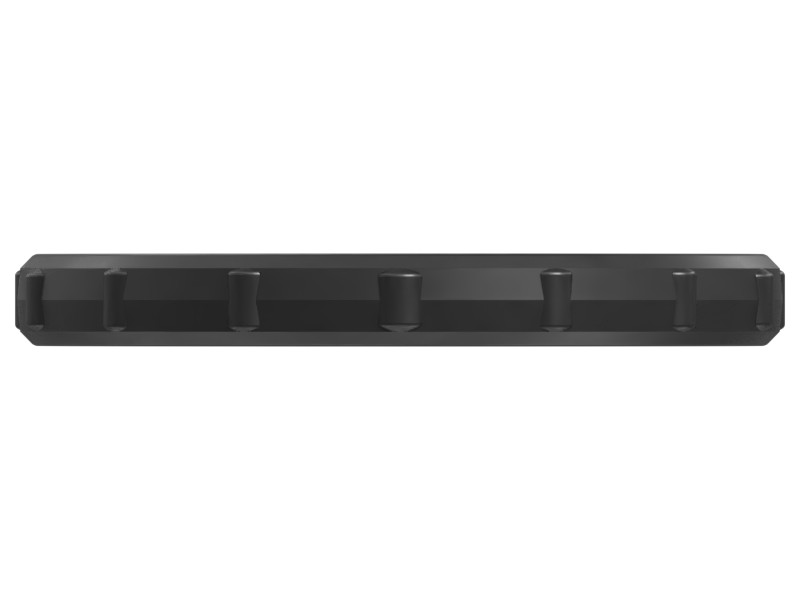

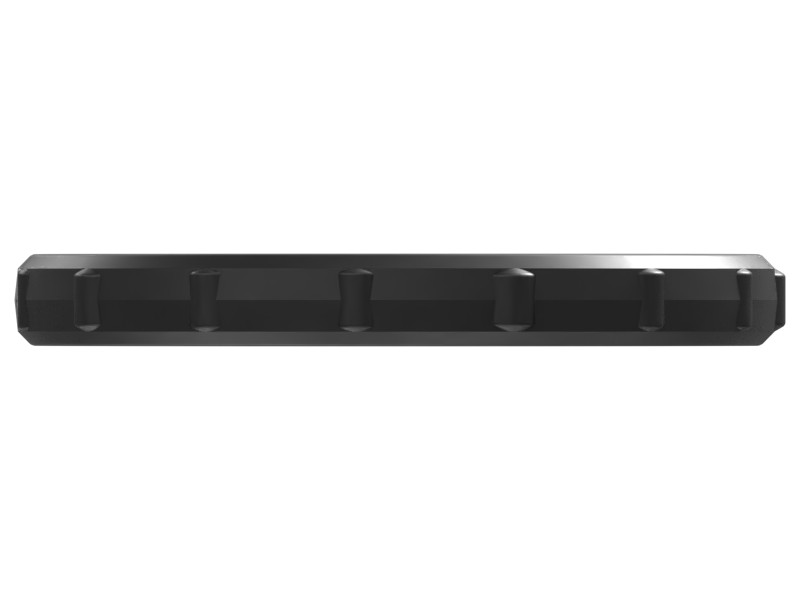

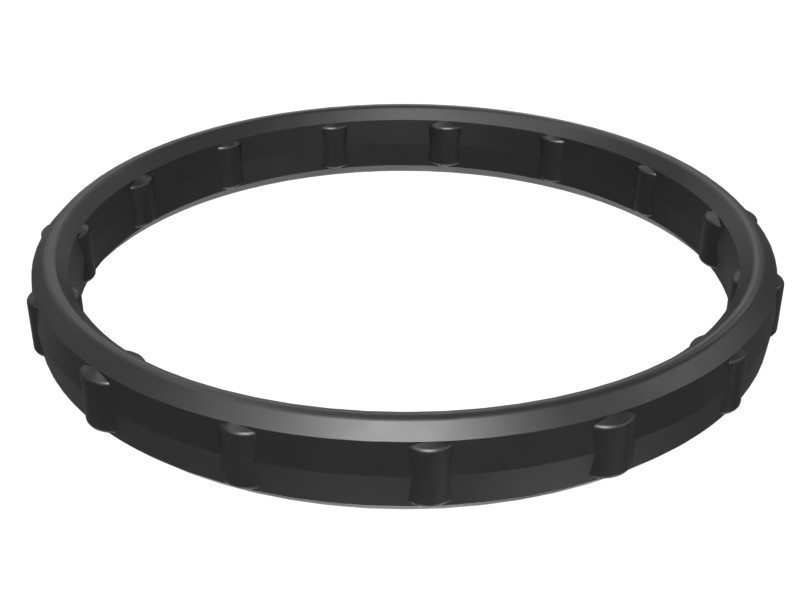

224-2675 Press-In Seal
Cat® engine oil cooler pressure seal ensures leak-free connections for excellent engine cooling and performance.
Description
Leakage at the connection point Description:
Press-in-place gaskets are used to stay fixed in a groove to improve the joint and prevent leakage and contamination. These are custom designs specific to application requirements.
Features
Push-in gaskets are made of materials suited to the fluids, temperatures, and pressures in Cat® engines and machines. These materials are wear-resistant and extrusion-resistant, providing the seal with outstanding resistance to compression set.
Cat® sealing systems go through a reliable design, testing and validation process. Protect your investment with the latest Genuine Cat® gaskets.
Applications
Press-in seals are widely used in many static joints on Cat® engines and machines. These are specifically designed for inverted or vertical equipment.
Specifications
| Overall Length | 60 mm |
|---|---|
| Overall Width | 60 mm |
| Seal/O-Ring Type | PIP |
| Cross-Section Height | 7.6 mm (0.3 in) |
| Cross-Section Width | 3.5 mm (0.14 in) |
| Inside Diameter | 56 mm (2.2 in) |
| Material | EPDM |
| Material Description | EPDM rubber has a service temperature of -55 to 121C and resists air, water and glycol fluids such as engine coolant and diesel exhaust fluid. EPDM rubber is not recommended for applications requiring resistance to fuel, gasoline, diesel fuel and lubricants. |
Compatible Equipment
- Motor Graders: 14, 18, 16, 16M, 16M3, 14M
- Track Loaders: 982
- Compactors: C13B
- Engines: C13, C11, C15, C18
- Dozers: D8N
- Excavators: 349F L, 349, 352, 355, 3508B, 352F, 621H, 349D L, 345C L, 345D L, 349E, 345C, 345D, 349E L, 349E L VG, 621K, 349D, 349D2 L, 349D2
- Wheel Loaders: 982M, 980M
- Off-Highway Trucks: 730, 725, 735
Additional information
| Machine Model | 14, 14M, 16, 16M, 16M3, 18, 345C, 345C L, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 3508B, 352, 352F, 355, 621H, 621K, 725, 730, 735, 980M, 982, 982M, C11, C13, C13B, C15, C18, D8N |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines |
| Part Source | Genuine OEM |
