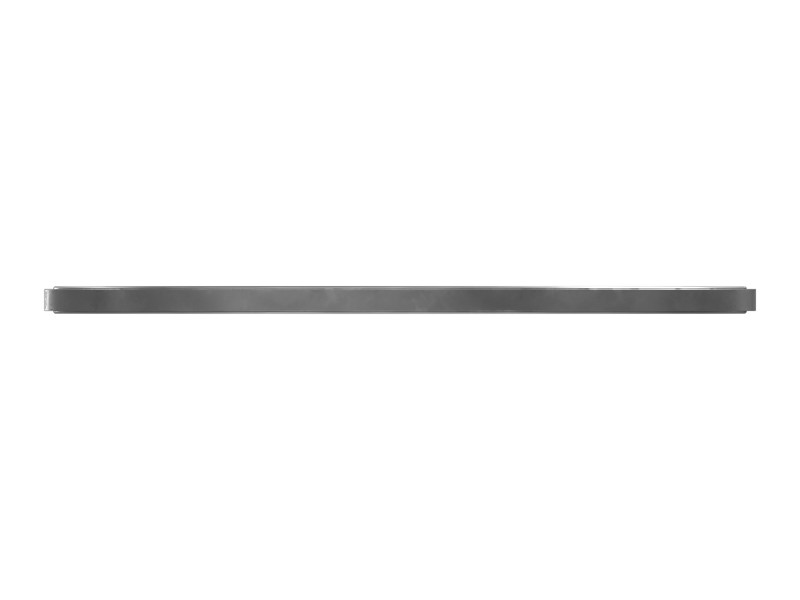

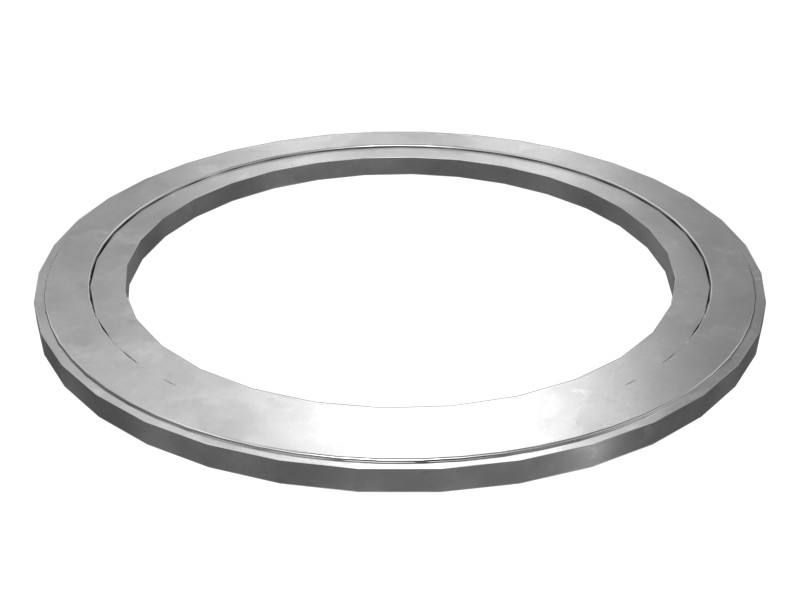

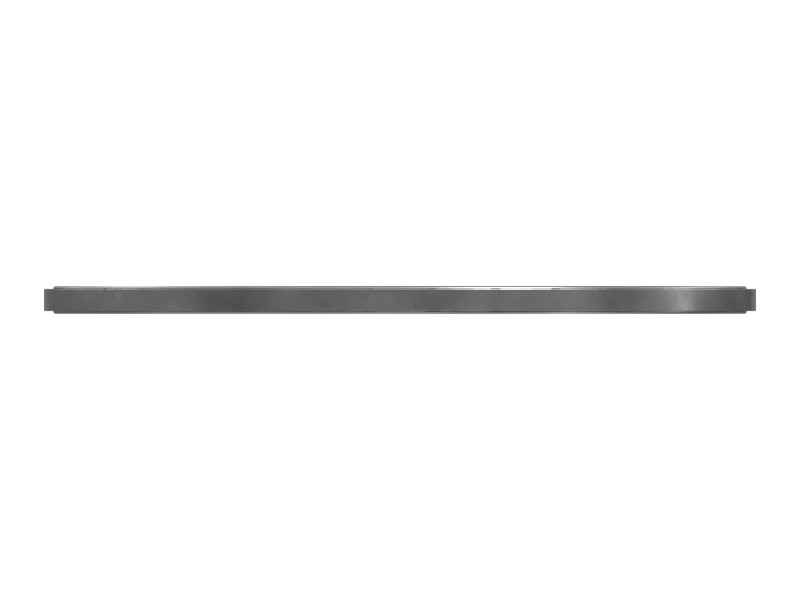

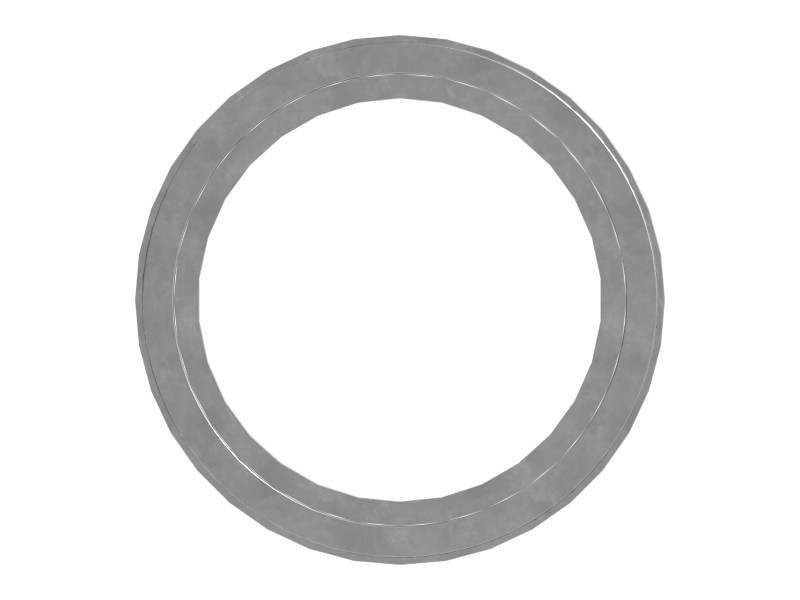

224-2323 249.34 mm OD Needle Thrust Bearing
Cat® 190.27 mm ID Needle Thrust Bearing for Powertrain Differentials
Description
The Cat thrust needle roller and cage assembly can withstand heavy axial loads and operate smoothly at high speeds. Thrust needle roller and cage assemblies are compact and high performing.
Features
- Outside Diameter: 249.34 mm (9.8165 in)
- Inside Diameter: 190.27 mm (7.4909 in)
- Height: 9.525 mm (0.375 in)
- Withstands high axial loads.
- Supports high rotational speeds.
- Requires minimal installation space.
- Needle rollers are quenched and tempered to ensure the longest bearing life.
- Easy to install.
Applications
Typical applications for thrust needle and cage assemblies include planetary gears, constant-mesh gears, idlers, and linkages. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Steel |
|---|---|
| Outside Diameter | 249.34 mm (9.8165 in) |
| Inside Diameter | 190.27 mm (7.4909 in) |
| Height | 9.525 mm (0.375 in) |
Compatible Equipment
- Motor Graders: 18, 16, 16M, 16M3
- Track Loaders: 972
- Wheel Loaders: 972M, 966M
- Off-Highway Trucks: 730, 740, 740B, 735, 725, 740 GC, 745, 745C
Additional information
| Machine Model | 16, 16M, 16M3, 18, 725, 730, 735, 740, 740 GC, 740B, 745, 745C, 966M, 972, 972M |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Motor Graders, Off-Highway Trucks |
| Part Source | Genuine OEM |
