Description

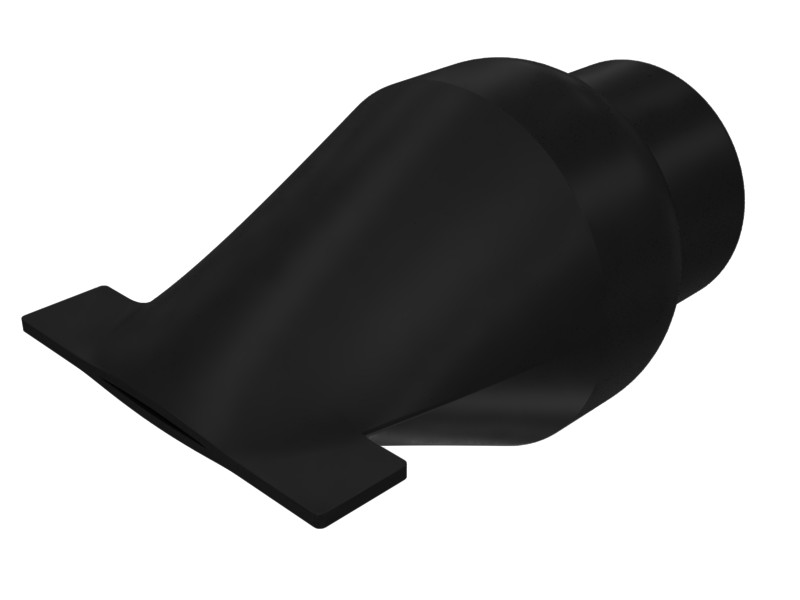

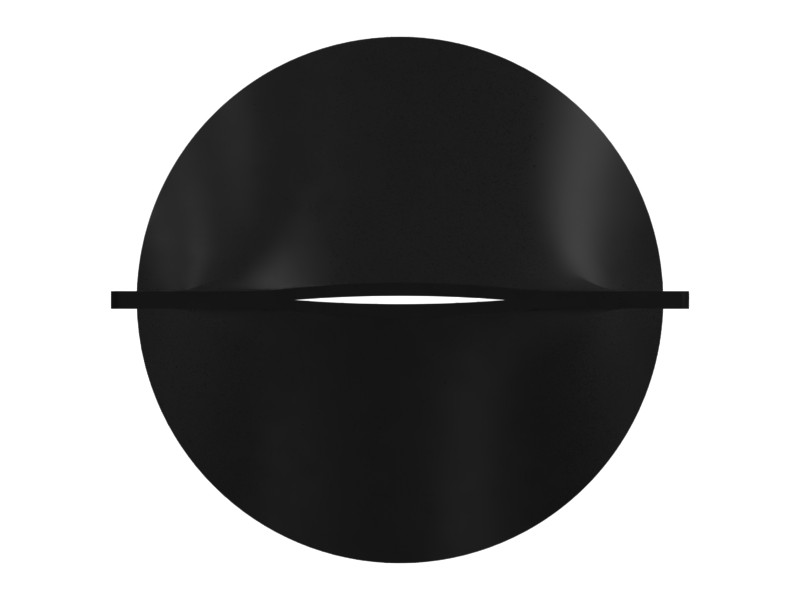

The actuator (dust ejector) valve automatically expels dust and moisture from the air intake precleaner.
Features
- Inside diameter: 47 mm (1.83 in)
- Length: 110 mm (4.33 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Length | 110 mm (4.33 in) |
|---|---|
| Type | Straight |
| Inside Diameter | 37.5 mm (1.476 in) |
| Outside Diameter | 46.5 mm (1.831 in) |
Compatible Equipment
- Generator Sets: C4.4
- Motor Graders: 316F
- Compactors: CS54B, CB-64B, CP54B, CS68B, CS-56, CS74B, CB-66B, CS56B, CS78B, CP56B, CP12 GC, CP11 GC, CS12, CS12 GC, CS11, CS7, CB16, CS79B, CW-16, CB10, CB13, CB15, CS-54B, CS64B
- Excavators: 318D2, 312E, 318D2 L, 312F, 313F L, 312E L, 313F LGC, 315F LCR
- Wheel Loaders: 938K, 938M, 926M, 924K, 928HZ, 924GZ, 924HZ, 928G
- Asphalt Pavers: AP-600D
Additional information
| Machine Model | 312E, 312E L, 312F, 313F L, 313F LGC, 315F LCR, 316F, 318D2, 318D2 L, 924GZ, 924HZ, 924K, 926M, 928G, 928HZ, 938K, 938M, AP-600D, C4.4, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CP11 GC, CP12 GC, CP54B, CP56B, CS-54B, CS-56, CS11, CS12, CS12 GC, CS54B, CS56B, CS64B, CS68B, CS7, CS74B, CS78B, CS79B, CW-16 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Motor Graders, Compactors, Asphalt Pavers, Generator Sets |
| Part Source | Genuine OEM |
