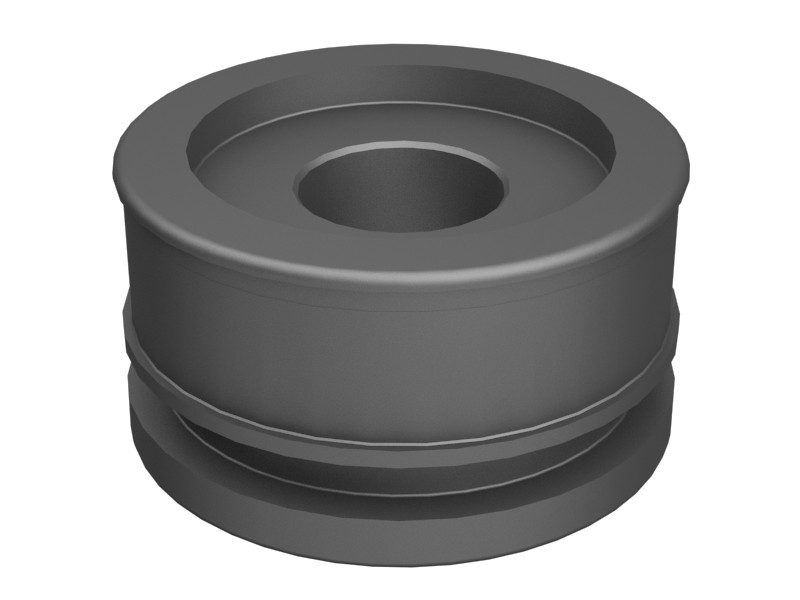

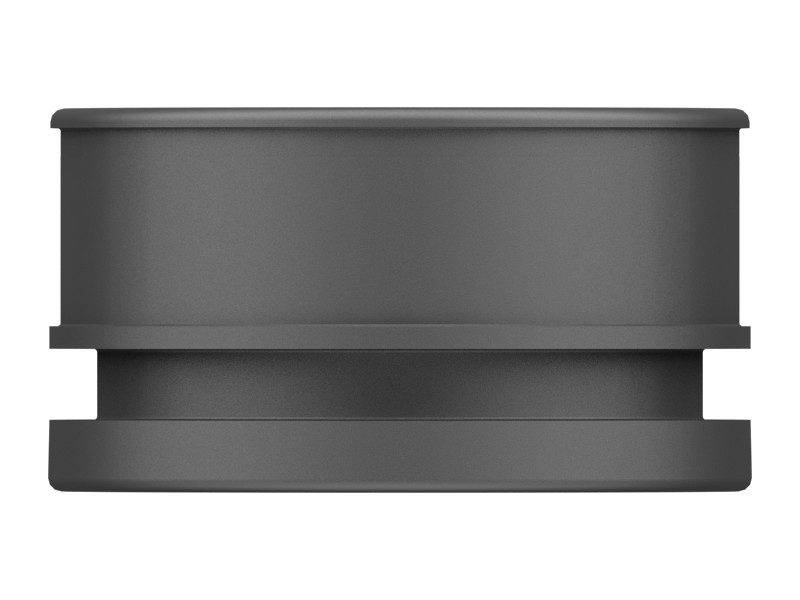

224-2235 157.75 mm OD Tilt Cylinder Piston
Cat® Piston (Hydraulic Cylinder)
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The purpose of the hydraulic piston is to separate the two opposing pressure zones in the hydraulic cylinder assembly. The piston contains machined grooves for wear rings, which are located on the inner surface of the cylinder assembly and prevent damage and scoring to the piston or cylinder assembly. The piston assembly also contains machined grooves that accommodate seals. The seals prevent pressurized oil from moving the piston from one side of the cylinder chamber to the other.
Features
- Material: Cast iron
- Hardened
- Piston Outside Diameter: 157.75 mm (6.21 in)
- Piston Inside Diameter: 57.165 mm (2.25 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Inside Diameter | 57.2 mm (2.25 in) |
| Material Description | Cast Iron |
| Outside Diameter | 157.8 mm (6.21 in) |
| Height | 85.8 mm (3.37 in) |
Compatible Equipment
- Wheel Loaders: 980H, 980G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
