Description

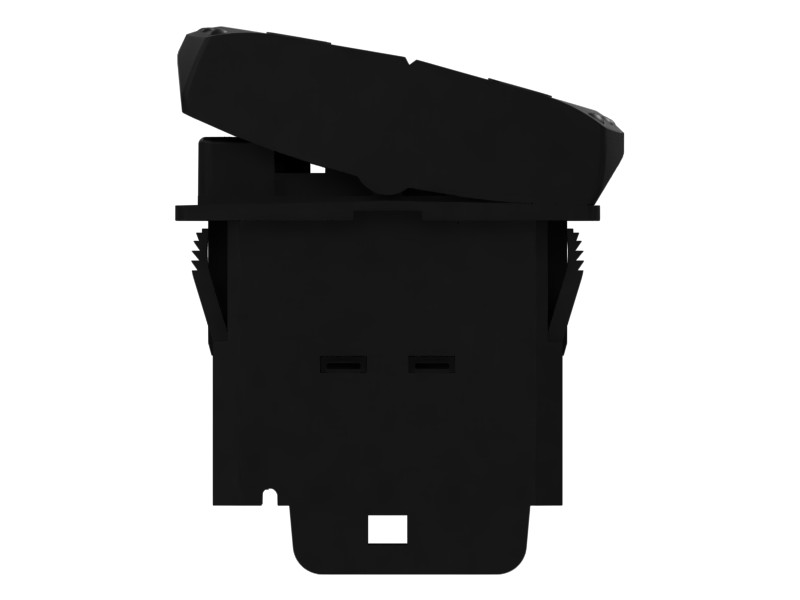

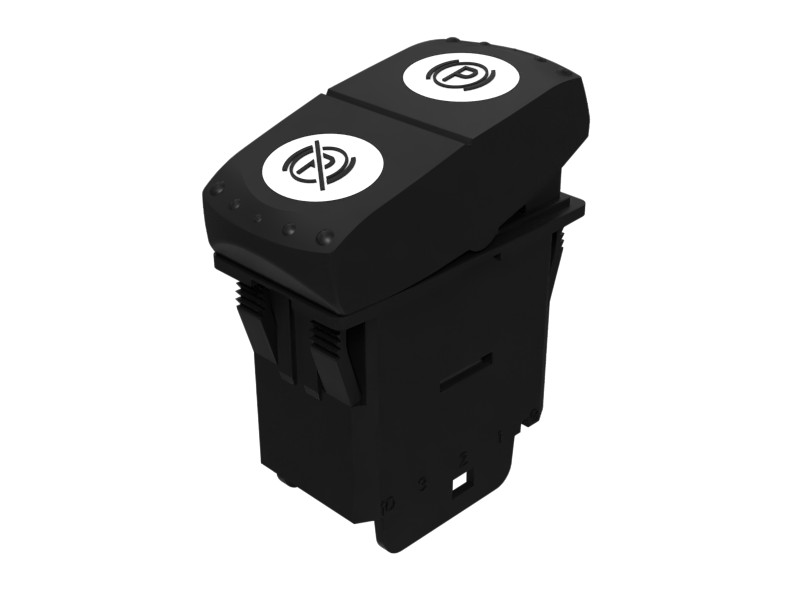

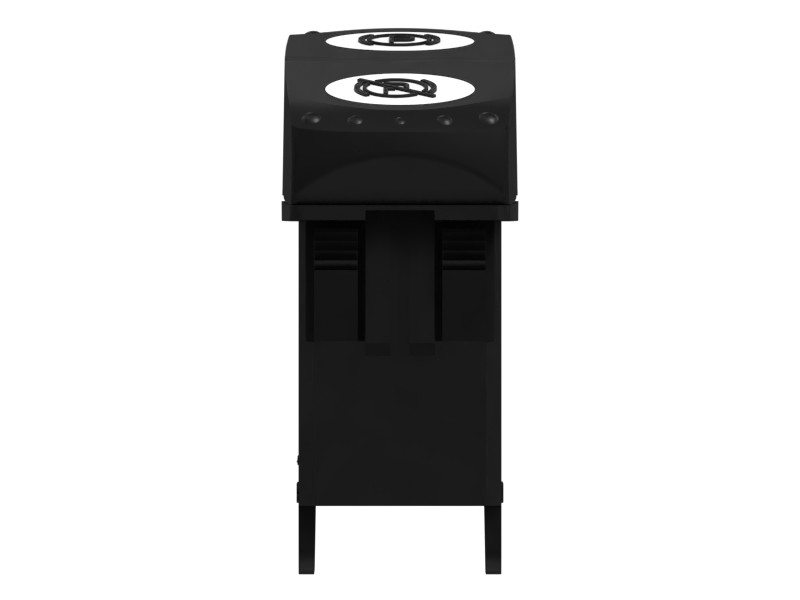

A rocker switch is a simple electrical switch that connects or breaks a circuit through a rocking mechanism. Cat parts keep your equipment running at its best.
Features
- Sealed two-position rocker switch

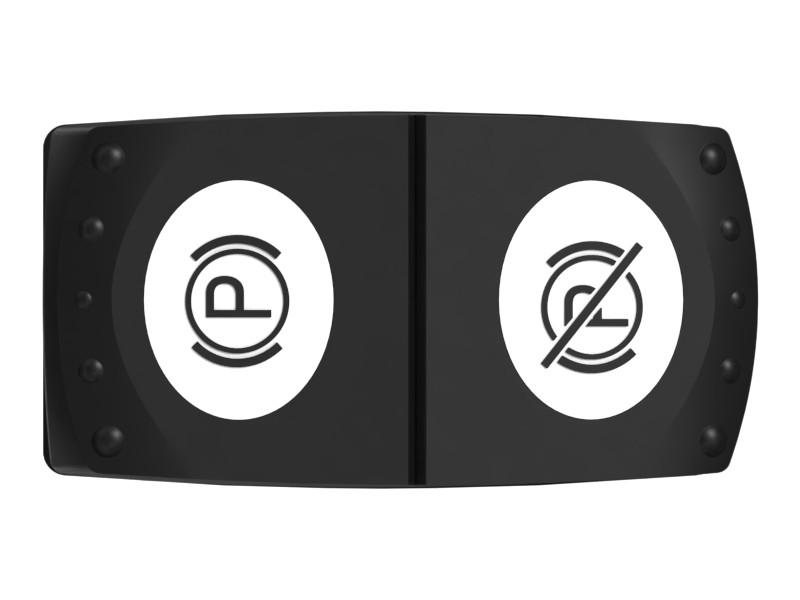

- Symbol: Parking brake [ISO 0238]; parking brake – release [ISO 3360]
- LED lighting
- Ten-lug connection
- Gold-plated switch contacts suitable for low-voltage/low-current applications
- Panel Cutout: 24.5 X 47.24 mm (0.96 X 1.86 in)
- Heavy-Duty Construction
- Easy to operate
- High precision ensures stable performance
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Polyamide Plastic |
|---|---|
| Length | 46.6 mm (1.83 in) |
| Height | 36 mm (1.4 in) |
| Width | 24.2 mm (0.95 in) |
| Temperature | -40° to 85° °C (-40° to 185° °F) |
Compatible Equipment
- Motor Graders: 16M, 14M
- Track Loaders: 963D, 953D
- Cold Planers: PL72, PL83, PL87, PL61
- Compactors: CS54B, CS68B, CW-34, CP56B, CP54B, CS74B, CS78B, CS56B, CS11, CS12, CS79B, CS-54B, CS64B
- Dozers: D11T, D10T2, D10T, D7E, D6T LGP, D6N, D8T, D9T
- Excavators: 621G, 637G, 657G, 3508B
- Wheel Loaders: RM500B, 966H
- Asphalt Pavers: AP-600D
Additional information
| Machine Model | 14M, 16M, 3508B, 621G, 637G, 657G, 953D, 963D, 966H, AP-600D, CP54B, CP56B, CS-54B, CS11, CS12, CS54B, CS56B, CS64B, CS68B, CS74B, CS78B, CS79B, CW-34, D10T, D10T2, D11T, D6N, D6T LGP, D7E, D8T, D9T, PL61, PL72, PL83, PL87, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
