Description

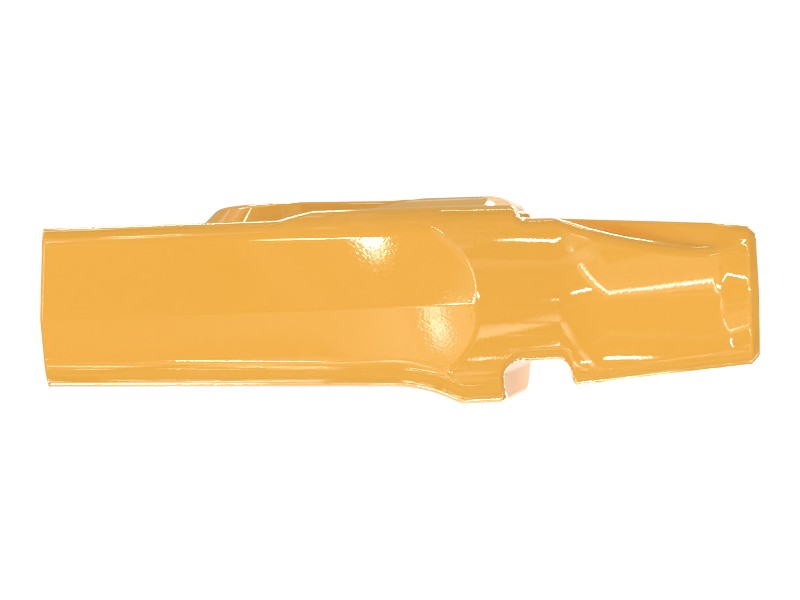

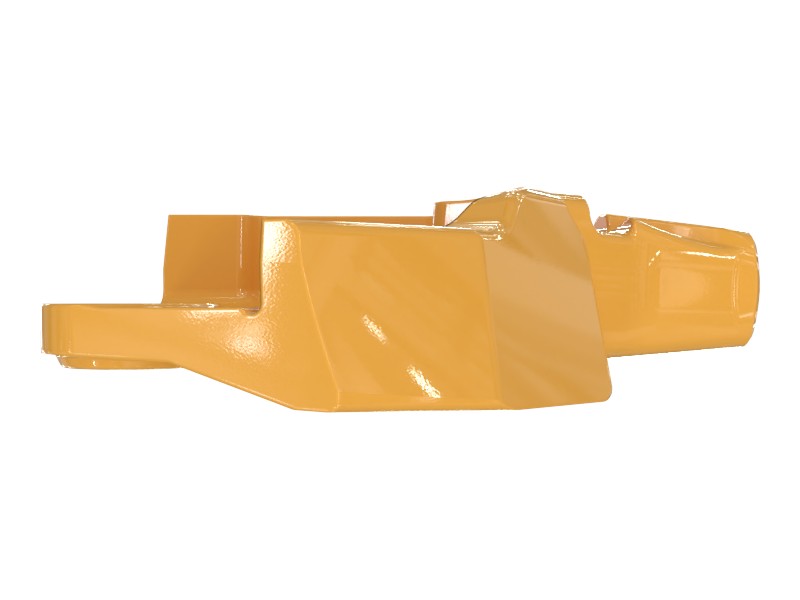

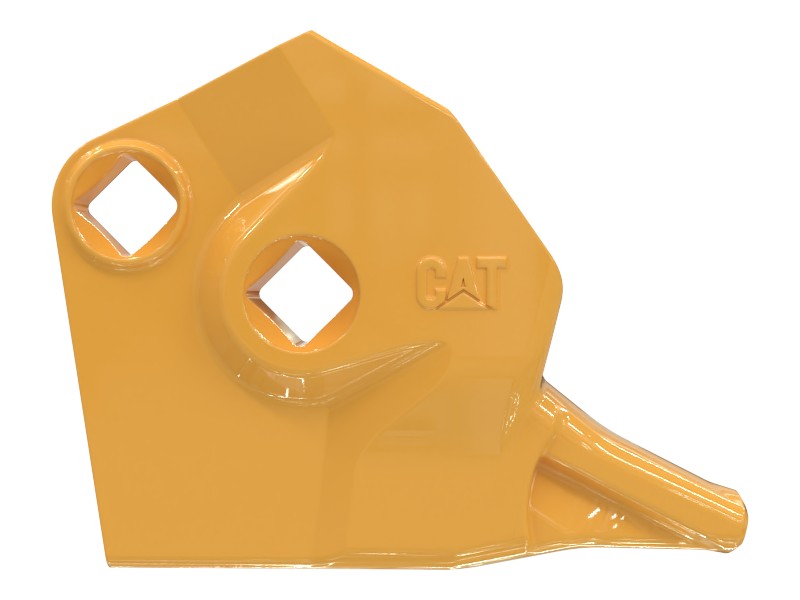

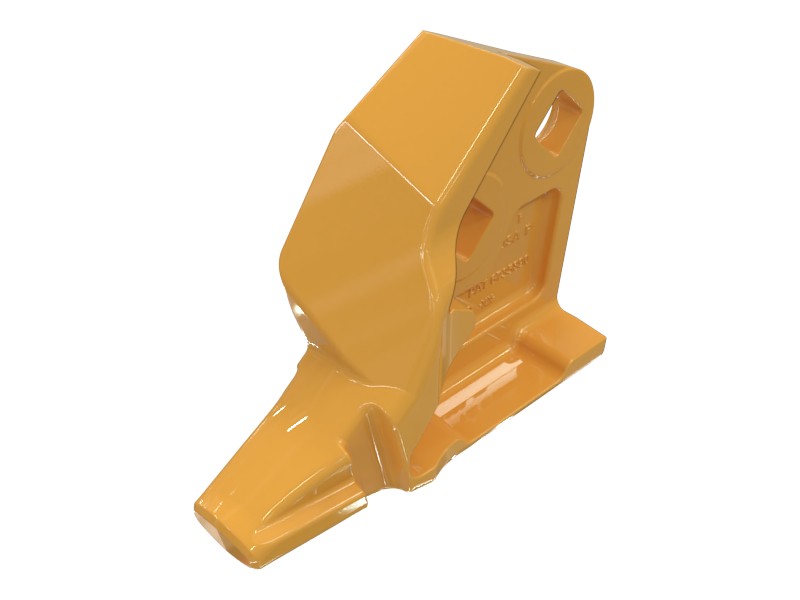

Cat® K Series adapters offer unmatched manufacturing precision to protect machine buckets from damage. Our bucket Ground Engaging Tools (GET) are designed around the inherent characteristics of your Cat equipment to provide consistently superior protection.
Cat® corner shroud adapters provide excellent corner protection along with all of the added penetration benefits of bucket teeth.
Our adapters are durable and cast from steel that holds its hardness, providing long wear life so your machine delivers the performance you need. Always choose Genuine Cat bucket G.E.T. to protect your investment.
Features
- K80 right bolt-on corner shroud adapter fits a 32 mm cutting edge with a 22.5 degree bevel angle
Applications
- Wheel Loader Buckets
Specifications
| Size | K80 |
|---|---|
| Machine Model | Loader |
| Attachments | Bolt-On |
| Wear Material | Standard Optional |
| Base Edge Thickness Grade | 25/32 |
| Width | 104.3 mm (4.106 in) |
| Overall Length | 369 mm (0 in) |
| Bottom Bar Length | 0 mm (0 in) |
| Corner Stop Angle | 2 |
| Bevel Angle | 22.5 |
| Attachment Method | Bolt-On |
| Number of Holes | 2 |
| Hole Spacing | 101 mm |
| Hole Size | 1-1/4-in Plow Bolt (36.5 mm square) |
| Adapter Size | K80 |
| Series | K Series |
| Wear or Durability | Standard |
| Material | Alloy Steel |
Compatible Equipment
- Track Loaders: 953K, 963K, 953D, 963D, 963
- Wheel Loaders: 950H, 962L, 950L, 950 GC
