Description

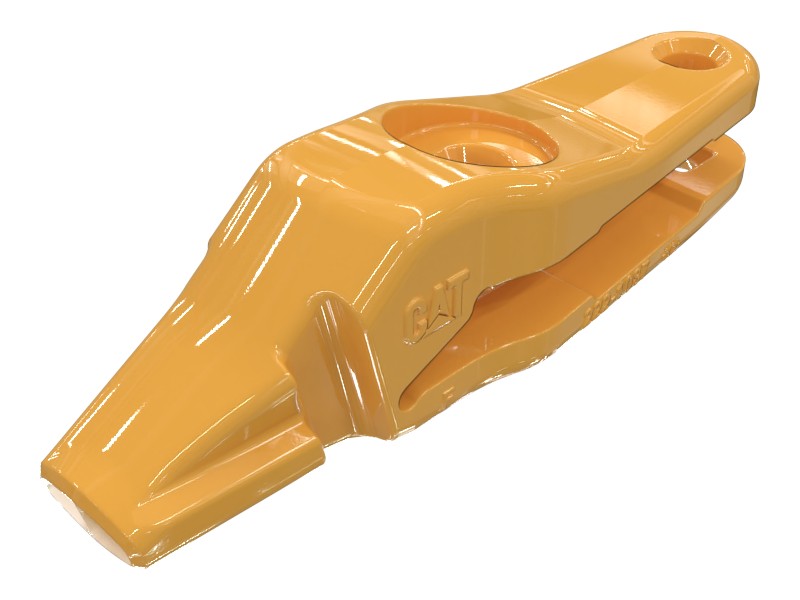

Cat® K Series adapters feature unmatched manufacturing precision to protect your machine's bucket from damage. Our ground engaging tools (G.E.T.) are designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.
Cat® Two-Strap Adapters have a lower profile than flush-mount adapters, which produces greater penetration and higher productivity.
Our adapters are durable and cast from steel, a material whose properties maintain hardness for long wear life, so your machine delivers the performance you need. Always choose Genuine Cat bucket ground engaging tools to protect your investment.
Features
- K80 center bolt-on adapter fits a 32 mm cutting edge with a 22.5 degree bevel angle
Applications
- Wheel Loader Buckets
Specifications
| Adapter Size | K80 |
|---|---|
| Series | K Series |
| Number of Holes | 2 |
| Bevel Angle | 22.5 |
| Hole Spacing | 166 mm |
| Bottom Bar Length | 291 mm (11.457 in) |
| Hole Size | 1-in Plow Bolt (28 mm square) |
| Width | 107 mm (4.213 in) |
| Attachment Method | Bolt-On |
| Base Edge Thickness Grade | 32 |
| Overall Length | 412 mm (16.22 in) |
| Corner Stop Angle | 0 |
| Size | K80 |
| Type | Bolt-On Two Strap |
| Wear or Durability | Standard |
| Machine Model | Loader |
| Wear Material | Standard Optional |
| Attachments | Bolt-On |
Compatible Equipment
- Track Loaders: 963K, 963D, 963
- Wheel Loaders: 950H, 950L, 962L, 950 GC
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
