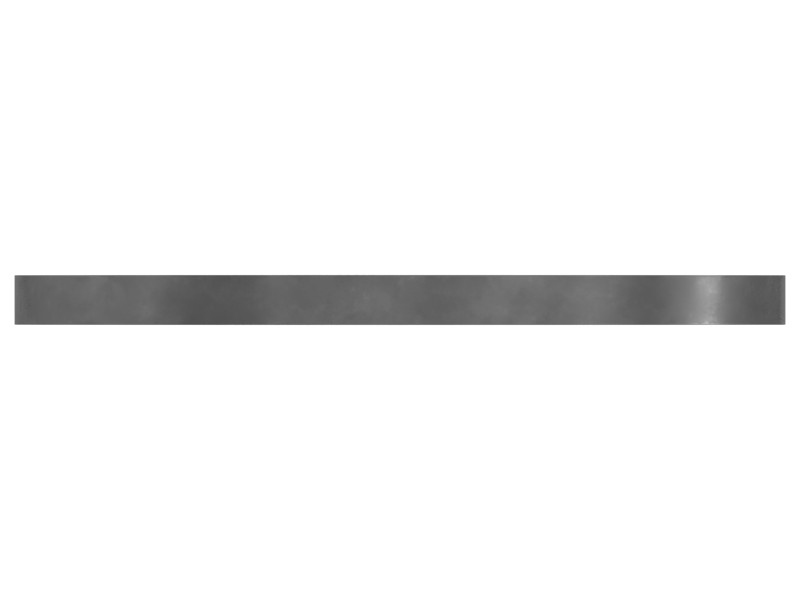

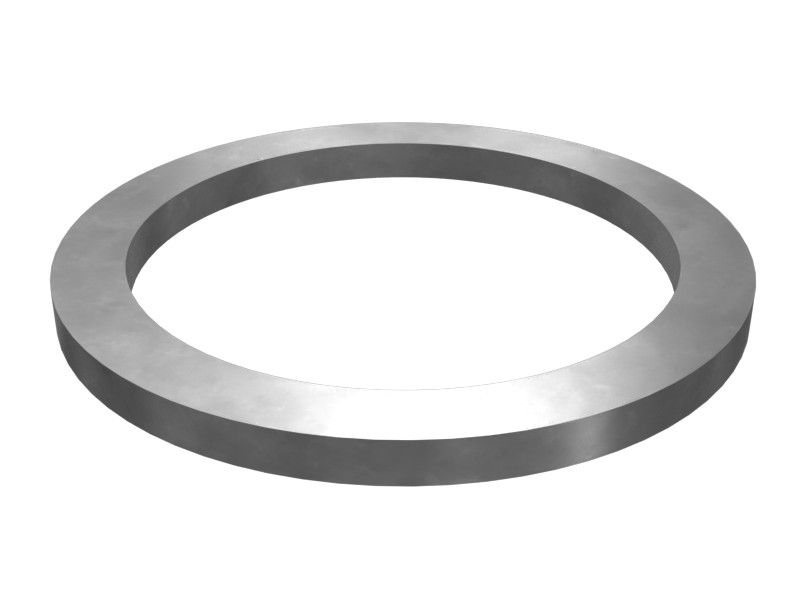

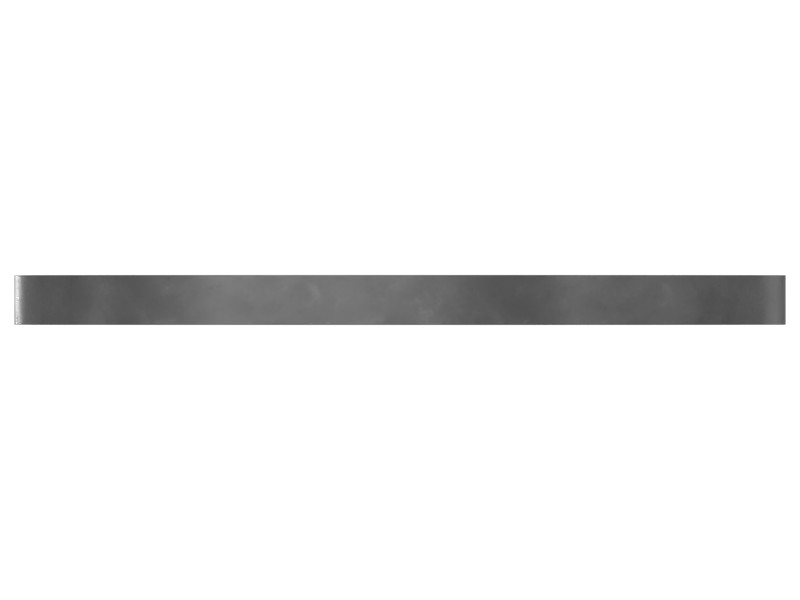

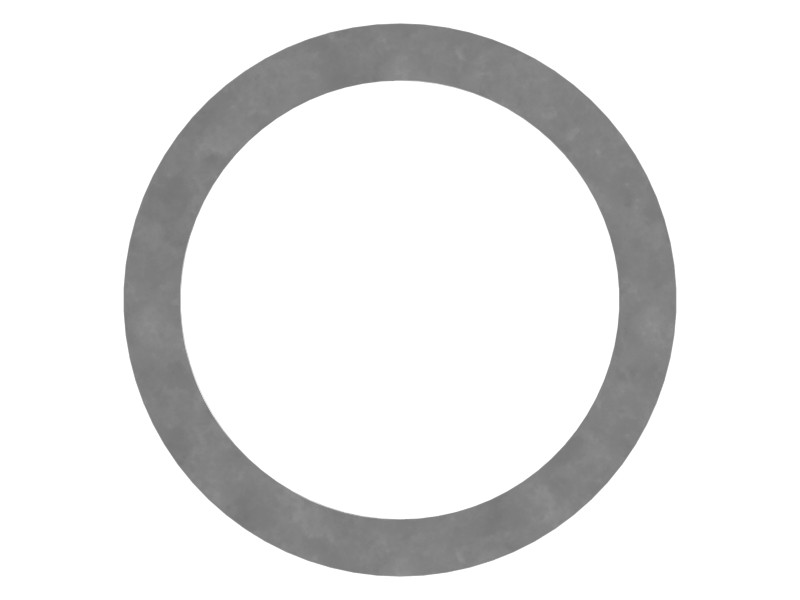

Description
Backup rings can prevent seal extrusion in high-pressure applications and can also be used to protect the life of the overall sealing system under sudden pressure changes.
Features
Cat® backup rings are designed together with the elastomeric seal and mating components and contribute greatly to the life and performance of sealing systems in high-pressure applications.
Backup ring dimensions strictly follow tight tolerances, ensuring they properly bridge the seal groove and the mating surfaces. Materials are selected based on their pressure resistance and wear resistance.
Backup rings are available in two types: closed rings and split rings. Split rings are used to ensure ease of installation.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
Backup rings are used in high-pressure static and dynamic sealing applications, for example, hydraulic pumps, valves, and engine systems.
Specifications
| Material | Plastic |
|---|---|
| Cross-Section Height | 2.2 mm (0.09 in) |
| Cross-Section Width | 1.4 mm (0.06 in) |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Inside Diameter | 17.5 mm (0.69 in) |
Compatible Equipment
- Wheel Excavators: M317D2, M315D, M313D, M322D, M315D2, M320D2, M320, M315, M315GC
- Excavators: M325D L MH, 345 GC
- Wheel Loaders: M314
