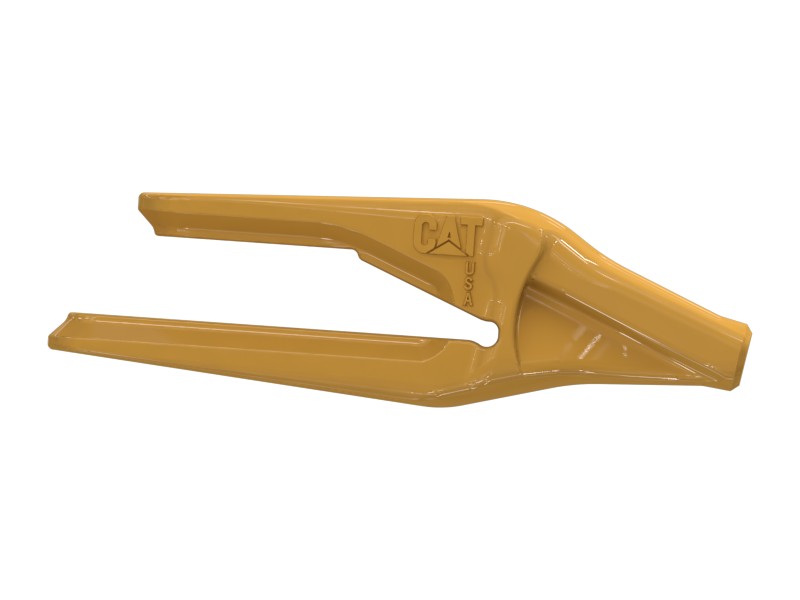

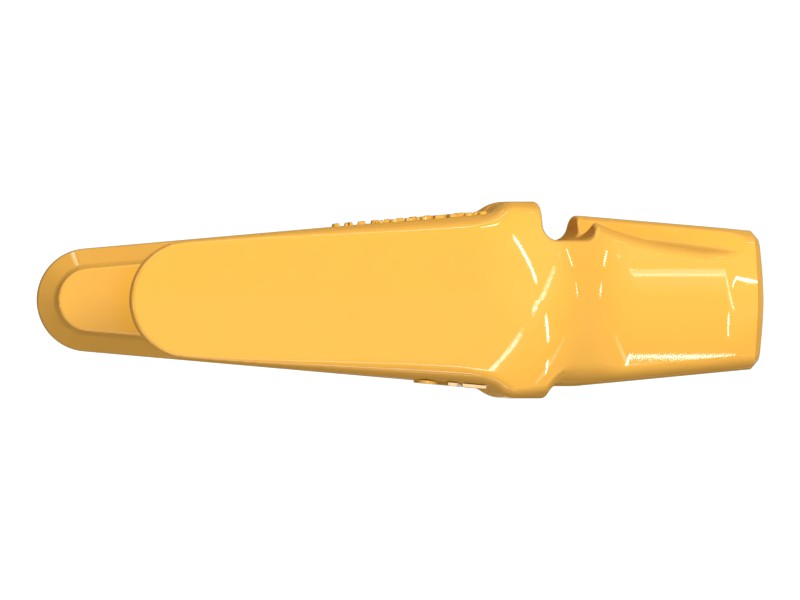

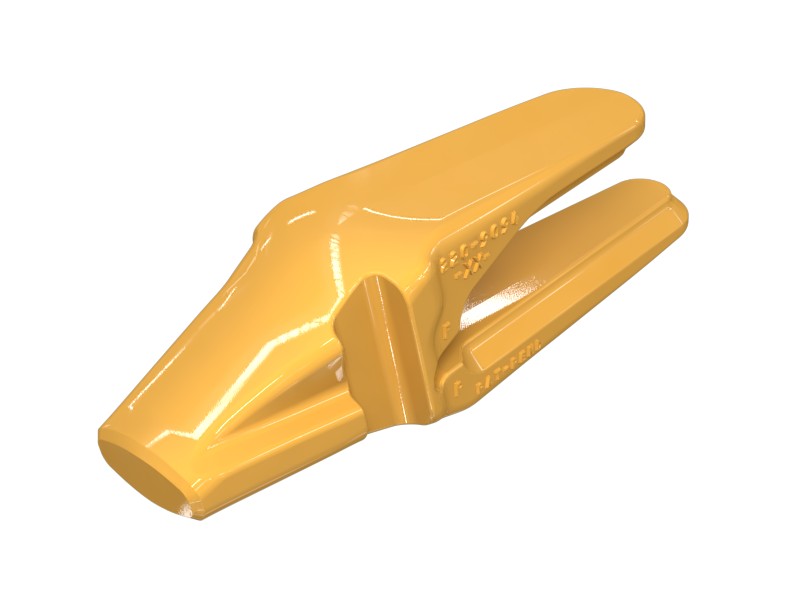

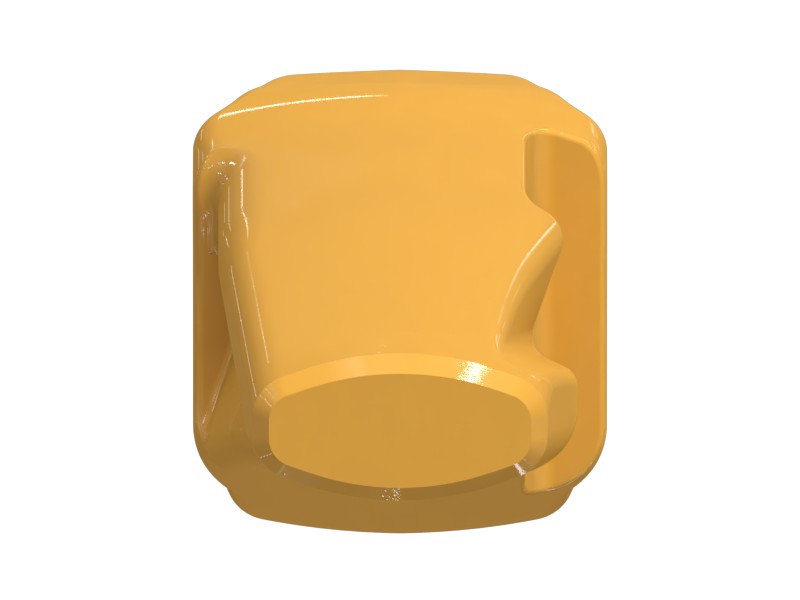

Description
Cat® K Series adapters offer unmatched manufacturing precision to protect your machine's bucket from damage. Our ground engaging tools (GET) are designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.
Cat® two-strap adapters have a lower profile than flush-mount adapters, producing greater penetration and higher productivity.
Our adapters are durable and cast from steel that holds its hardness and offers long wear life, so your machine delivers the performance you need. Always choose Genuine Cat bucket protection to protect your investment.
Features
- K90 center full drive adapter fits a 40 mm base edge with a 22.5 degree bevel angle
Applications
- Excavator Buckets
Specifications
| Wear Material | Standard Optional |
|---|---|
| Wear or Durability | Standard |
| Attachments | Weld-On |
| Series | K Series |
| Adapter Size | K90 |
| Machine Model | Excavator |
| Number of Holes | 0 |
| Overall Length | 363.5 mm (14.311 in) |
| Bottom Bar Length | 234 mm (9.213 in) |
| Corner Stop Angle | 0 |
| Hole Spacing | 0 mm |
| Attachment Method | Weld-On |
| Width | 99 mm (3.898 in) |
| Base Edge Thickness Grade | 40 |
| Bevel Angle | 22.5 |
| Size | K90 |
| Type | Two Strap |
Compatible Equipment
- Motor Graders: 316F
- Wheel Excavators: M322D
- Excavators: 330D L, 324D L, 323D2 L, 323, 320D L, 315D L, 320D2 L, 318D2 L, 325D L, 315C, 329D L, 320D RR, 325D, 330D2 L, 318D2, 323D L, 320C, 325C, 320 GC, 330D2, 324D, 320, 323D, 320D2 GC, 323D2, 329E L, 315F LCR, 325B L, 320D2, 326D2, 320D, 329D2 L, 326D2 L, 329D2, 329D, 330
Additional information
| Machine Model | 315C, 315D L, 315F LCR, 316F, 318D2, 318D2 L, 320, 320 GC, 320C, 320D, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 323, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325B L, 325C, 325D, 325D L, 326D2, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 329E L, 330, 330D L, 330D2, 330D2 L, M322D |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
