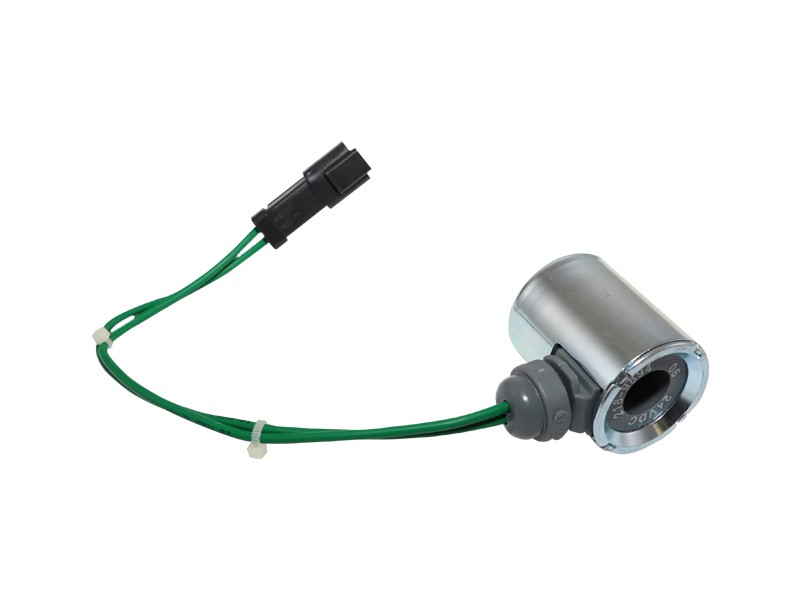

218-9894 24 Volt DC Solenoid Valve Coil
Cat® solenoid valve coil controls the operation of the solenoid valve in the fuel system, regulating fuel flow and ensuring safe engine shutdown.
Description
Cat coil groups are used for application-specific service of electronic control systems.
Features
- Coil group includes housing, coil, cable tie, receptacle group, receptacle locking wedge, connector pins, spring washer, and flux washer
- Material: Overmolded Nylon Type 6 plastic (coil)
- Dark gray coil
- 2-pin DT connector
- Nominal Resistance (ohms): 32.6
- Nominal Current (Amps): 0.75
Applications
Used as needed to provide solenoid valves for the electronic control of various systems in Cat heavy-duty equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Temperature | -40 to 121 °C (-40 to 249.8 °F) |
|---|---|
| Power | 15.9 (Max) Watts |
| Voltage | 24 VAC |
| Outside Diameter | 41 mm (1.61 in) |
| Overall Length | 51.6 mm (2.03 in) |
| Connector Type | 2-Pin DT |
Compatible Equipment
- Generator Sets: C4.4, 3512B
- Track Loaders: 973K, 993, 826G, 826H, 834H, 972, 824G, 824C, 994K, 990K
- Cold Planers: PL83, PL87
- Motor Graders: 12K, 140K, 140 GC, 12H, 14M, 140H, 120H, 16H, 160K, 140G
- Compactors: 834K
- Dozers: D11R, D11T, D10N, D10R, D10T, D7E, D6T LGP, D8N, D6T, D8T, D6R, D9R, D7R, D6R II, D7R II, D9T, D8R
- Mini Excavators: 307C
- Excavators: 120 GC, 637G, 657G, 311C, 320C, 385C FS, 345C, 385B, 365C L, 385C, 385C L, 365B, 621G, 365C, 621H, 6015B, 390D, 315C, 330C L, 325C, 312C L, 312C, 325B L, 637E, 3516E, 314C, 6015, 365B L, 3512C, 390D L, 374D L
- Wheel Loaders: 950, 966, 834, 950G, 980G, 924HZ, 950L, 988K, 980H, 972L, 962G, 966L, 966F, 972G, 980, 928G, 972H, 924GZ, 988G, 938K, 950H, 928HZ, 924K, 990H, 966H, 980L, 988H, R1700G, R1300G, R1700 II, R3000H, R2900G, R1600H
- Off-Highway Trucks: 740, 725, 773D, 797F, 735, 793F, 740B, 730, 793D, 785D, 789D, 771D, 793, 789
- Asphalt Pavers: AD45, AD30, AD63
Additional information
| Machine Model | 120 GC, 120H, 12H, 12K, 140 GC, 140G, 140H, 140K, 14M, 160K, 16H, 307C, 311C, 312C, 312C L, 314C, 315C, 320C, 325B L, 325C, 330C L, 345C, 3512B, 3512C, 3516E, 365B, 365B L, 365C, 365C L, 374D L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 6015, 6015B, 621G, 621H, 637E, 637G, 657G, 725, 730, 735, 740, 740B, 771D, 773D, 785D, 789, 789D, 793, 793D, 793F, 797F, 824C, 824G, 826G, 826H, 834, 834H, 834K, 924GZ, 924HZ, 924K, 928G, 928HZ, 938K, 950, 950G, 950H, 950L, 962G, 966, 966F, 966H, 966L, 972, 972G, 972H, 972L, 973K, 980, 980G, 980H, 980L, 988G, 988H, 988K, 990H, 990K, 993, 994K, AD30, AD45, AD63, C4.4, D10N, D10R, D10T, D11R, D11T, D6R, D6R II, D6T, D6T LGP, D7E, D7R, D7R II, D8N, D8R, D8T, D9R, D9T, PL83, PL87, R1300G, R1600H, R1700 II, R1700G, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
