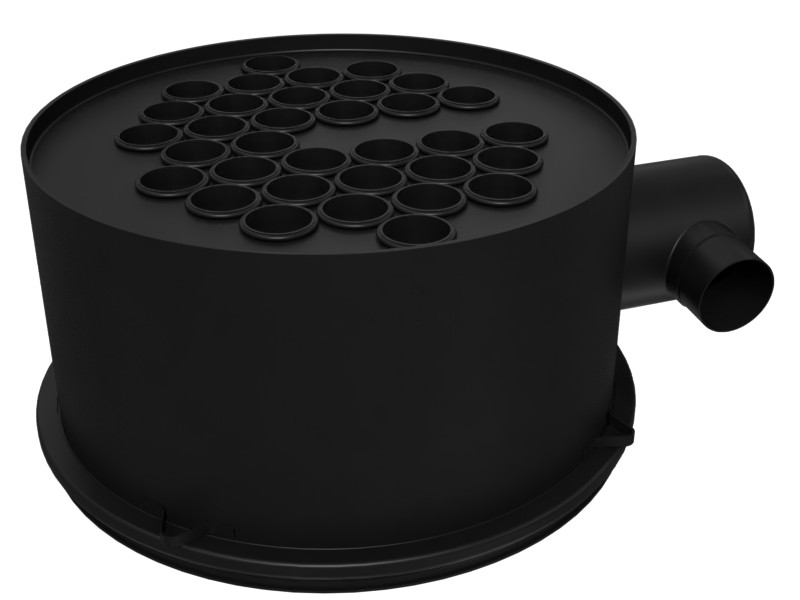

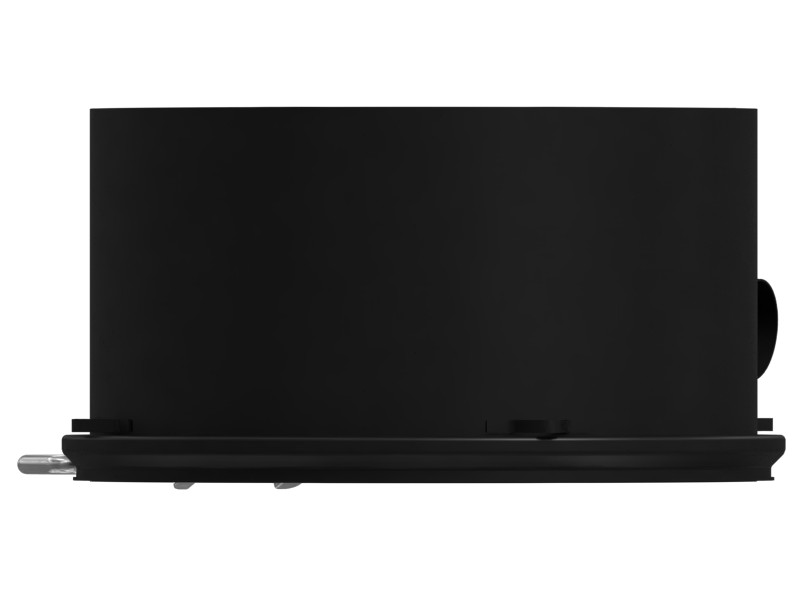

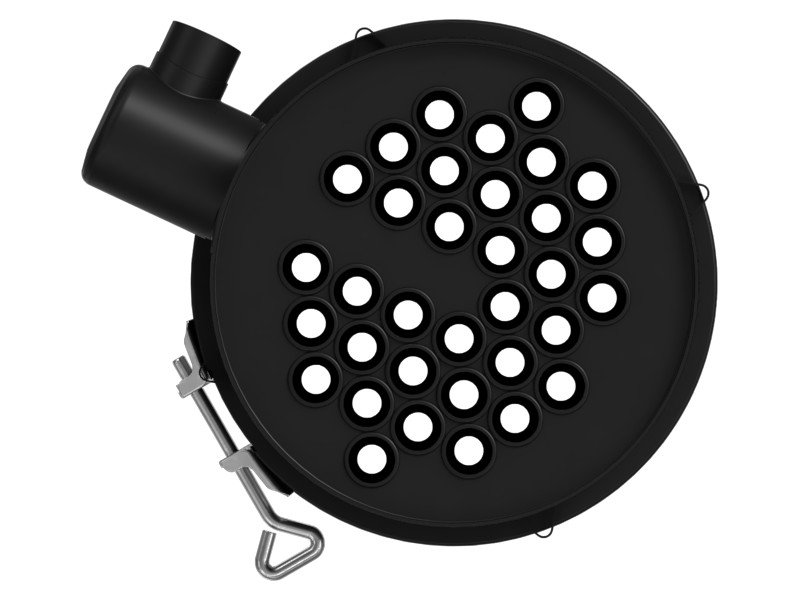

Description
As the first line of defense against contaminants, the precleaner prevents larger/heavier contaminants from entering the intake duct, preventing plugging of the intake air filter.
Features
- Steel air precleaner body
- Outside diameter: 330 mm (13.00 in)
- Height: 184 mm (7.25 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Type | Fixed Vane |
|---|---|
| Overall Width | 330.2 mm (13 in) |
| Overall Length | 184.2 mm (7.252 in) |
| Length | 184.2 mm (7.252 in) |
| Housing Material | Metal |
| Width | 330.2 mm (13 in) |
| Outlet Size | 330.2 mm (13 in) |
| Overall Height | 330.2 mm (13 in) |
| Scavenge Required | Yes |
| Outside Diameter | 330 mm (13.00 in) |
| Inside Diameter | Not Specified mm (Not Specified in) |
| Height | 184 mm (7.25 in) |
Compatible Equipment
- Cold Planers: PL87, PL83
- Dozers: D8R, D8T, D8
- Excavators: 3508B
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
