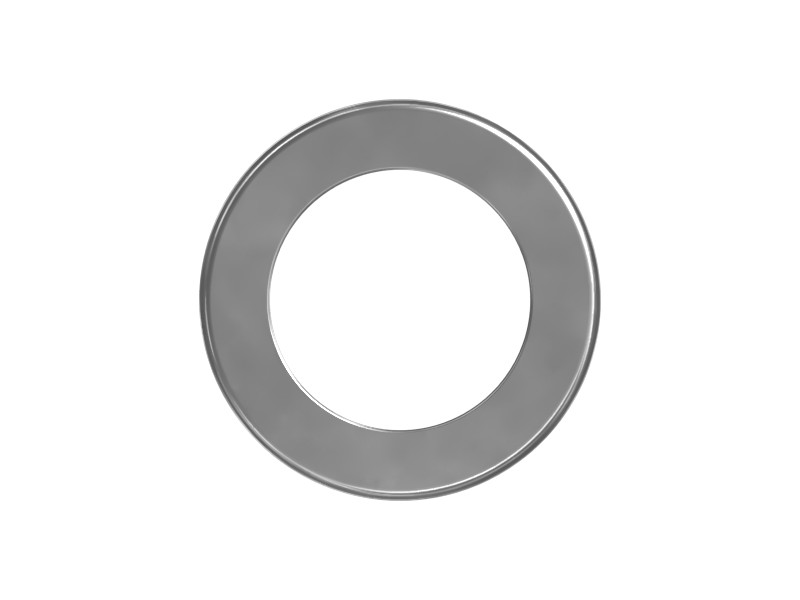

217-3312 Overmolded Ring Magnet
Cat® 13.5 mm ID Overmolded Ring Magnet for Hydraulic Cylinders
Description
Ring magnets are used for position sensors in hydraulic cylinders.
Features
- Magnet with plastic overmold
- Outside Diameter: 20.6 mm (0.81 in)
- Inside Diameter: 13.5 mm (0.53 in)
- Thickness: 14.3 mm (0.56 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Iron |
|---|---|
| Thickness | 14.3 mm (0.56 in) |
| Inside Diameter | 13.5 mm (0.53 in) |
| Outside Diameter | 20.6 mm (0.81 in) |
Compatible Equipment
- Motor Graders: 14, 18, 120, 14M, 16, 16M, 16M3, 316F
- Track Loaders: 982, 973K, 963, 963K, 953K, 953, 953D
- Wheel Excavators: MD6310, MD6250, MD6200
- Dozers: D7R II, D6T, D6N, D6K2, D6T LGP
- Excavators: 621K, 313F L, 311D LRR, 315D L, 312D, 312D L, 312E, 312E L, 329E L, 315F LCR, 312F, 320E, 621H, 416E
- Wheel Loaders: 982M, 980M, 966M, 972M
- Off-Highway Trucks: 789D, 794 AC, 793, 796 AC, 785, 797F, 798 AC, 777, 793F, 775G, 793D, 789
- Skid Steer Loaders: 24
Additional information
| Machine Model | 120, 14, 14M, 16, 16M, 16M3, 18, 24, 311D LRR, 312D, 312D L, 312E, 312E L, 312F, 313F L, 315D L, 315F LCR, 316F, 320E, 329E L, 416E, 621H, 621K, 775G, 777, 785, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 953, 953D, 953K, 963, 963K, 966M, 972M, 973K, 980M, 982, 982M, D6K2, D6N, D6T, D6T LGP, D7R II, MD6200, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks |
| Part Source | Genuine OEM |
