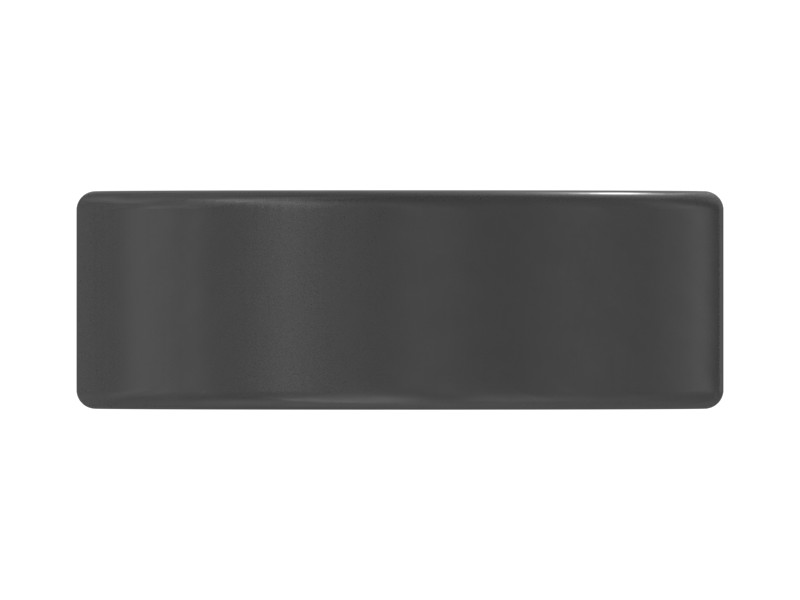

217-3311 Cylinder Position Sensor Ring Magnet
Cat® 13.5 mm ID Ring Magnet for Cylinder Position Sensing
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Ring magnets are used for position sensors in hydraulic cylinders.
Features
- Outside Diameter: 17.4 mm (0.69 in)
- Inside Diameter: 13.5 mm (0.53 in)
- Thickness: 5.84 mm (0.23 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Iron |
|---|---|
| Inside Diameter | 13.5 mm (0.53 in) |
| Outside Diameter | 17.4 mm (0.69 in) |
| Thickness | 5.84 mm (0.23 in) |
Compatible Equipment
- Motor Graders: 16M, 14M
- Track Loaders: 982, 972
- Cold Planers: PM622, PM620
- Compactors: CS12, CP56B, CS68B, CS78B, CS56B, CS74B
- Dozers: D3K2 LGP, D5K2 XL
- Wheel Loaders: 966M, 972M, 982M, 980M
- Off-Highway Trucks: 772G, 770G
Additional information
| Machine Model | 14M, 16M, 770G, 772G, 966M, 972, 972M, 980M, 982, 982M, CP56B, CS12, CS56B, CS68B, CS74B, CS78B, D3K2 LGP, D5K2 XL, PM620, PM622 |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers |
| Part Source | Genuine OEM |
