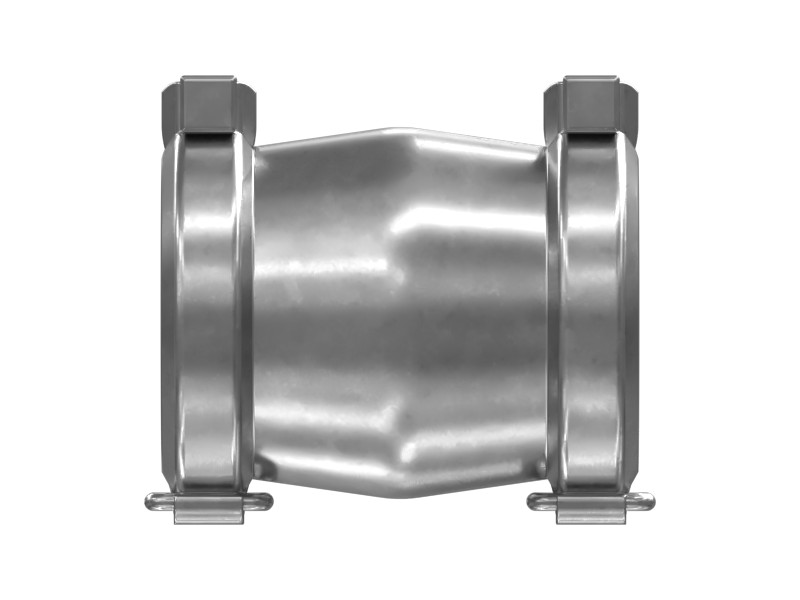

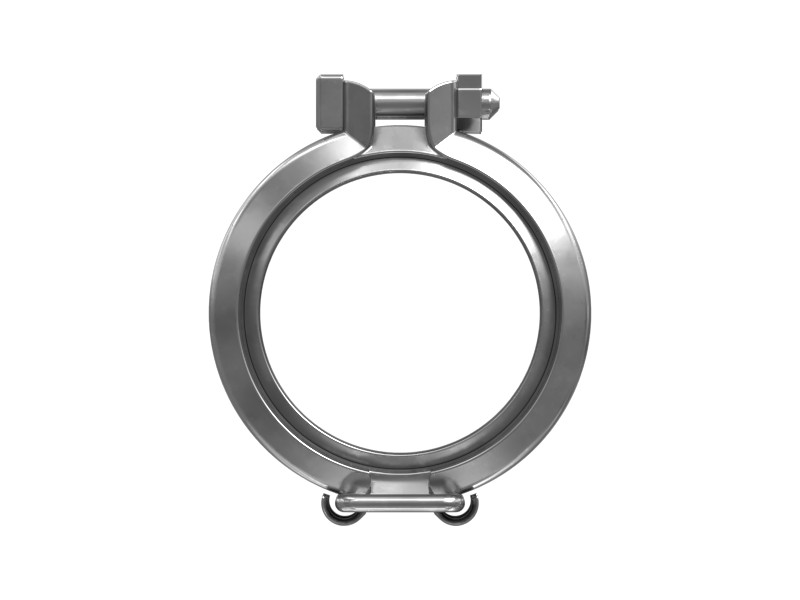

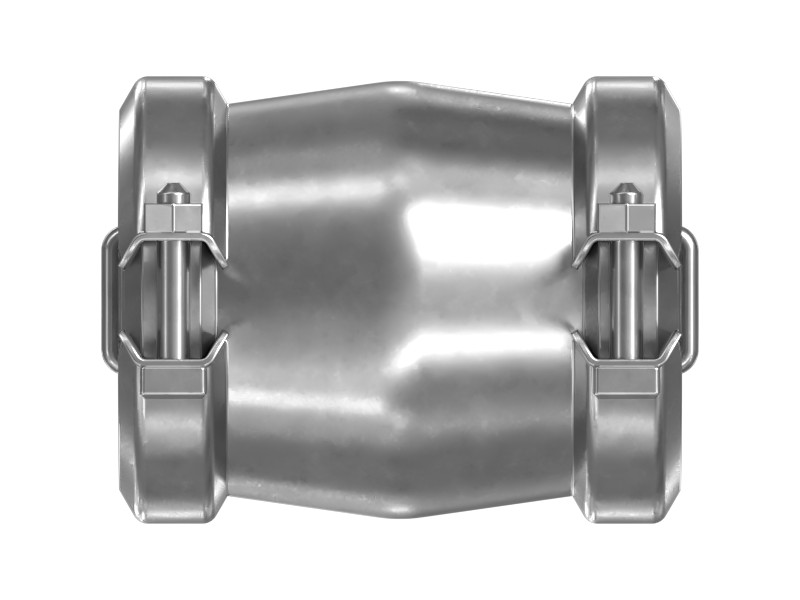

216-2285 63.5 mm OD Flexmaster Straight Coupling Tube Fitting
Cat® 63.5 mm OD Two-Bolt Flexmaster Straight Coupling Tube Fitting with Gasket
Description
The Cat coupling group provides a watertight joint between two pipes, such as water lines that carry and circulate water and coolant to the radiator.
Features
- Plated steel sleeve with nitrile gasket
- Includes fasteners
- For 63.5 mm (2.5 in) nominal outside diameter
- Absorbs vibration
- Easy to install
- Accommodates misalignment
Applications
The Cat coupling group is used in line assemblies that circulate water and coolant to and from the radiators of Cat heavy equipment.
Specifications
| Operating Pressure | 689.4 Maximum kPa |
|---|---|
| Height | 90.2 mm (3.55 in) |
| Material | Carbon Steel |
| Temperature | -32 to +100 °C (-25 to +212 °F) |
| Width | 119.9 mm (4.72 in) |
| Material Description | Plated Steel |
| Length | 101.6 mm (4 in) |
Compatible Equipment
- Generator Sets: G3516C, 3516C, 3512B, 3512E, G3516
- Dozers: D11N, D11R
- Excavators: 3516E, 3516B, 3512C, 3508B
