Description

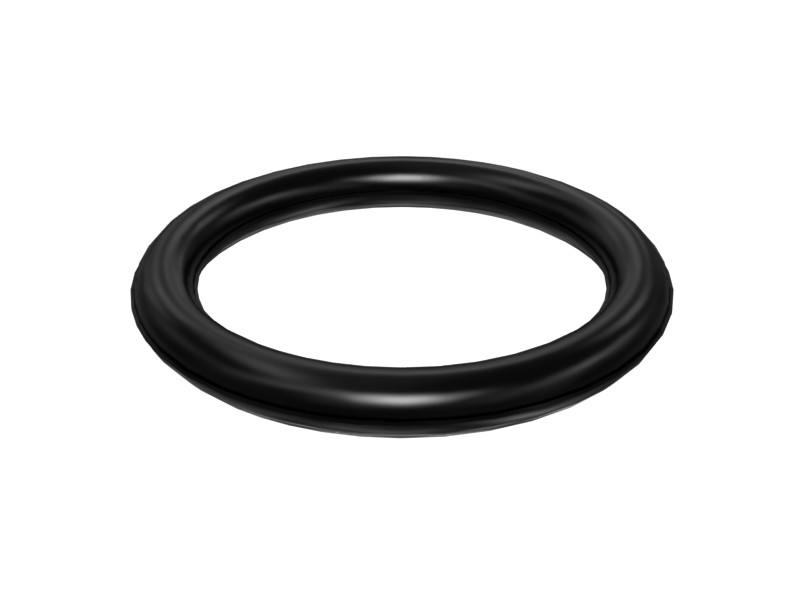

O-rings are used for static sealing and some dynamic applications.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly adhere to tight tolerances, ensuring they fit properly in the seal groove with the necessary seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Protect your investment with Genuine Cat seals.
Applications
O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Polymer | NBR (Nitrile Rubber) |
|---|---|
| Material Hardness | 70A |
| Dash Size | 014 in |
| Compatible | Alpha-Olefin-Based Synthetic Lubricants; Glycols; Hydrocarbon Fuels; Petroleum-Based Lubricants; Silicone Oils and Greases; Water, Water-Based Engine Coolants |
| SAE AS568 Dash Size | -14 |
| Temperature | -40 – 100 °C (-40 – 212 °F) |
| Application | Ambient Temperature Fuel Handling; High and Low Pressure LPG Service; Hydraulic Oil; Power Steering Seals; Radiator Thermostat Seals |
| Material Description | NBR is a general-purpose material with good abrasion and cut resistance. It is suitable for air, engine oil, diesel fuel, coolant/urea, hydraulic oil and automatic transmission fluid applications. Never use with biodiesel. |
| Not Compatible | Acetone; Automotive and Aircraft Brake Fluids; Chlorinated Hydrocarbons; High Concentration Ozone; Ketones; Nitro Hydrocarbons; Phosphate Ester Fluids; Strong Acids; Ultraviolet Light |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Cross-Section Diameter | 1.78 mm (0.07 in) |
| Inside Diameter | 12.42 mm (0.489 in) |
Compatible Equipment
- Generator Sets: C4.4
- Mini Excavators: 305.5E, 307E2, 303.5E, 305E2, 303.5D, 305.5E2
- Excavators: 305E2 CR, 416F2, 428F, 434F2, 416E, 303.5E2 CR, 308E
