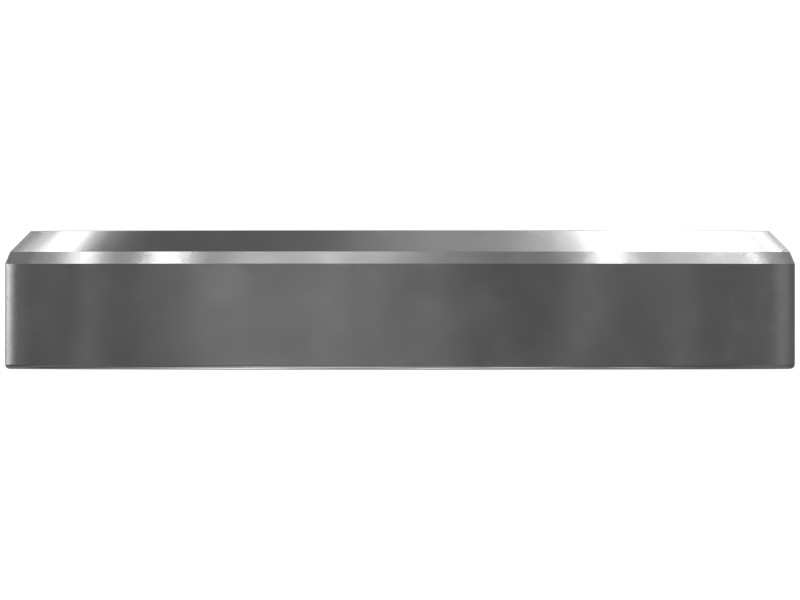

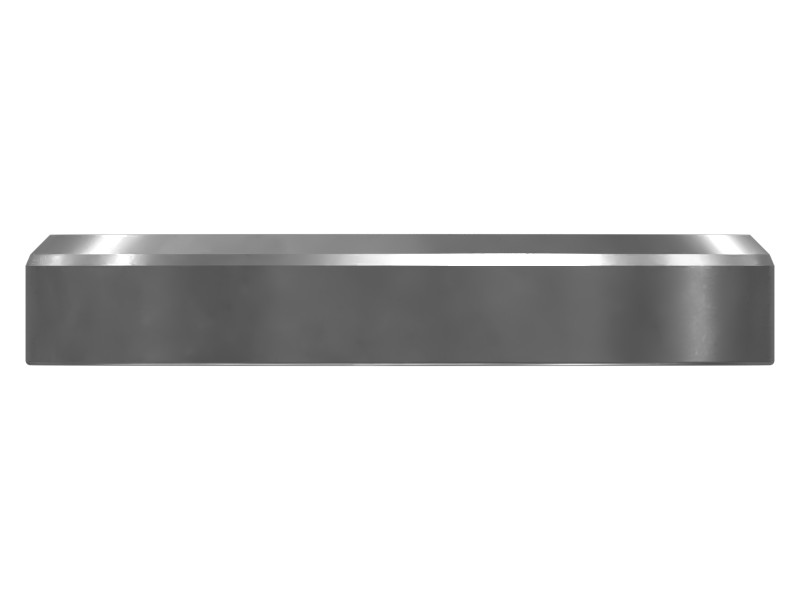

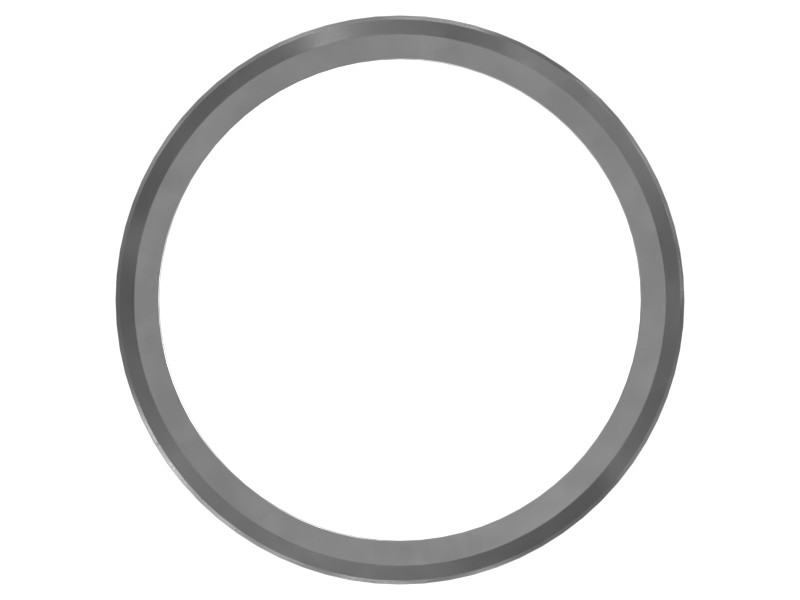

214-3286 8 mm Thick Intake Valve Seat Insert
Cat® 8 mm Thick Intake Valve Seat Insert for Cylinder Head
Fitment data not listed — send us your machine model or serial number to confirm.
Description
The intake valve seat insert is a valve component that provides a tight seal when the valve is closed. It is inserted into the valve body and forms a seal between the valve stem and the valve body. It prevents the valve from coming into direct contact with the cylinder head.
Features
- Built to exact specifications for durability and reliable performance
- Heat treated with Ferritic Nitrocarburizing (FNC) to improve wear and fatigue resistance and enhance corrosion resistance
Applications
The intake valve seat insert prevents the valve from striking the cylinder head.
Specifications
| Material | Alloy Steel |
|---|---|
| Inside Diameter | 39.1 mm (1.54 in) |
| Outside Diameter | 46.025 mm (1.81 in) |
| Thickness | 8 mm (0.31 in) |
| Width | 8 mm (0.31 in) |
| Weight | 0.02 kg (0.05 lb) |
Additional information
| Part Source | Genuine OEM |
|---|
