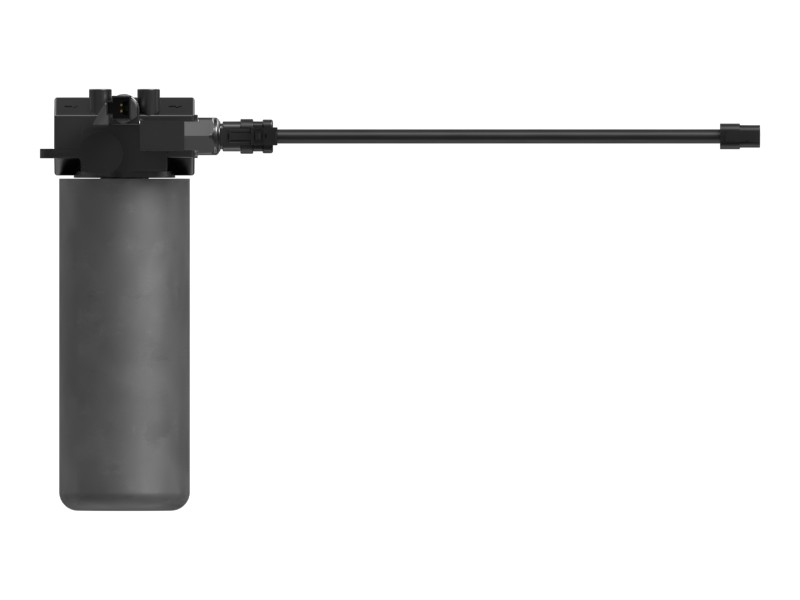

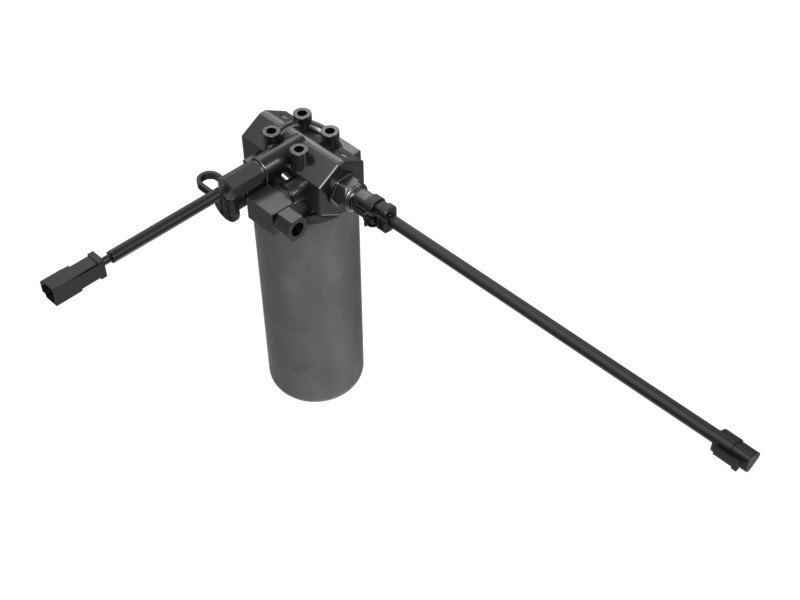

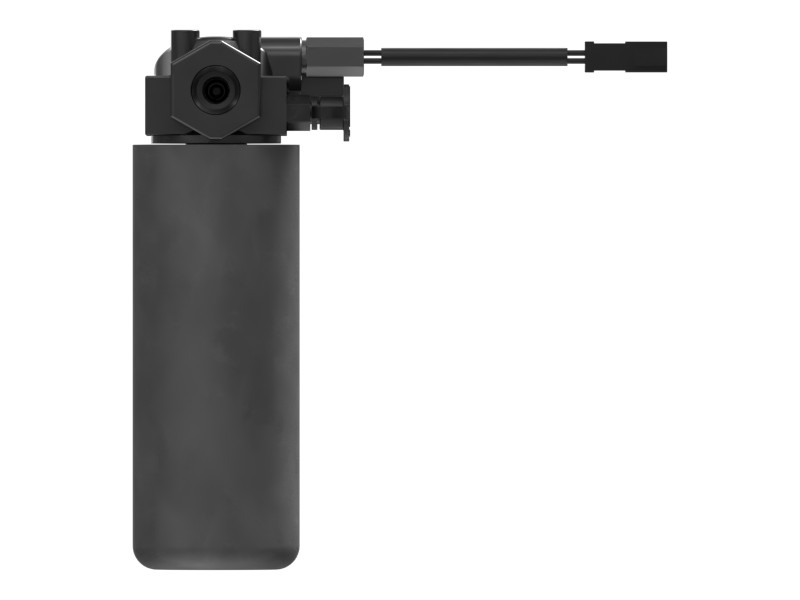

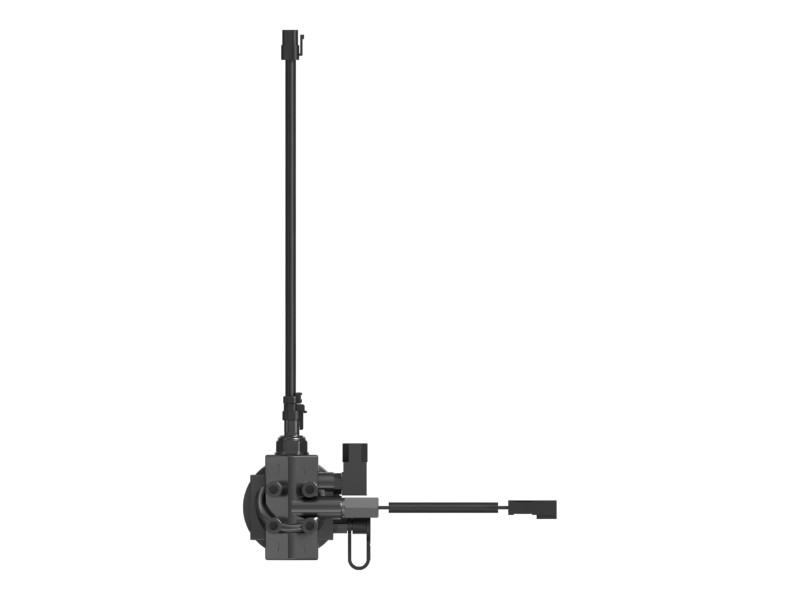

211-6053 Hydraulic Steering Oil Filter
Cat® 94.2 mm Diameter Hydraulic Steering Oil Filter with Pressure Sensor Used in the Steering Line
Description
The hydraulic steering oil filter with pressure sensor helps remove contaminants from the steering fluid while monitoring system pressure. The housing is typically made of metal or high-grade plastic and includes ports for fluid inlet and outlet. The pressure sensor is integrated into the filter to monitor system hydraulic pressure.
Attributes
- Equipped with an O-ring seal for an efficient leak-proof seal
- Bypass pressure setting of 172 kPa improves filter efficiency and maintains proper oil flow
- Provides 4 mounting holes for use with M10 fasteners
Applications
The hydraulic steering oil filter serves as a filtering mechanism in the steering line, removing particles, dirt and other contaminants that can build up in the steering fluid over time. The filter element captures these contaminants, ensuring the fluid flowing through the steering system is clean and free of debris, while a pressure sensor continuously monitors hydraulic pressure within the steering system.
Specifications
| Material | Carbon Steel |
|---|---|
| Length | 303 mm (11.929 in) |
| Width | 101.6 mm (4 in) |
Compatible Equipment
- Dozers: D8T
