Description

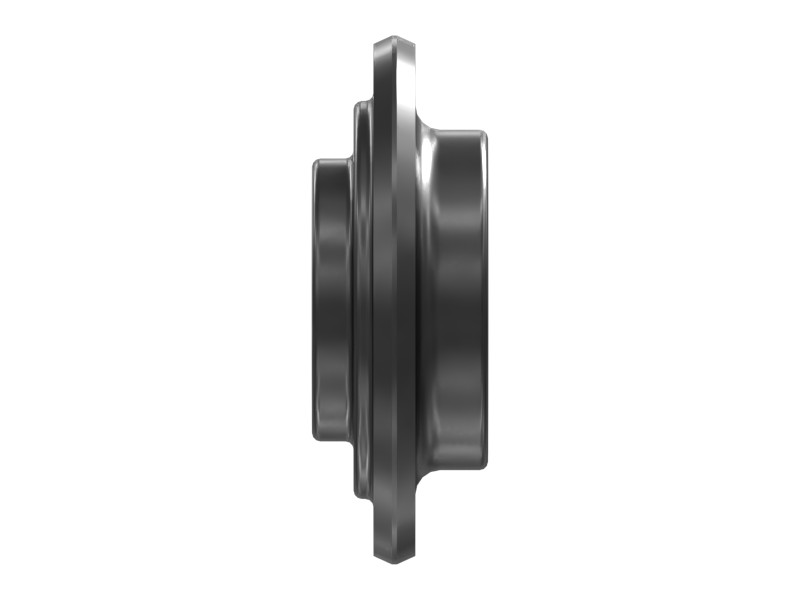

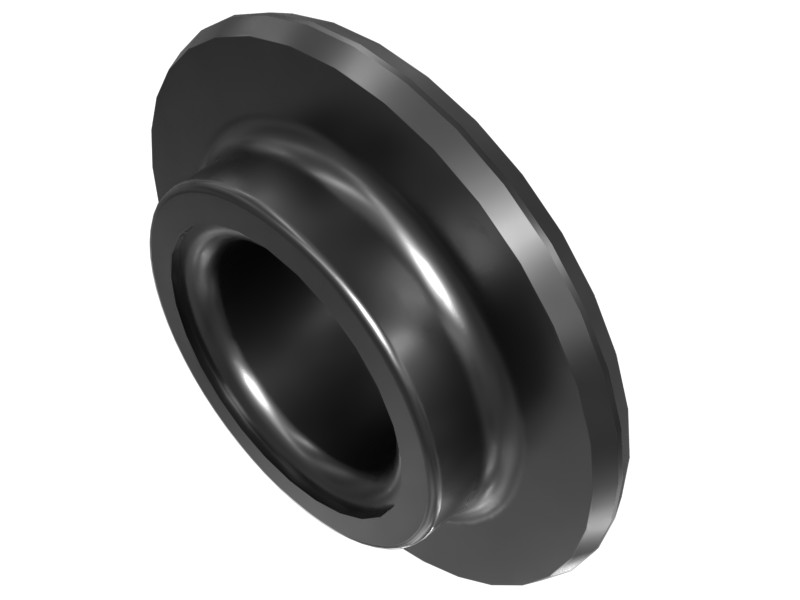

This Cat engine service part is used to replace the valve spring retainer in the cylinder head assembly during an engine overhaul or routine maintenance.
Features
- Hardened Steel Valve Spring Retainer
- Spring Interface Diameter (Inner Spring): 17 mm (0.67 in)
- Spring Interface Diameter (Outer Spring): 23.9 mm (0.94 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|
Compatible Equipment
- Generator Sets: C9
- Motor Graders: 12H, 14
- Compactors: C-9
- Dozers: D6R II, D6T, D7R, D6R III, D6R, D6R LGP, D6R XL
- Excavators: 330D L, 336D2 L, 336D L, 330C, 330C L, 330D, 336D2 XE, 336D2 GC, 637E, 637G, 340D2 L, 340D L, 336D2, 336D
Additional information
| Machine Model | 12H, 14, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 637E, 637G, C-9, C9, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D7R |
|---|---|
| Equipment Type | Excavators, Dozers, Motor Graders, Compactors, Generator Sets |
| Part Source | Genuine OEM |
