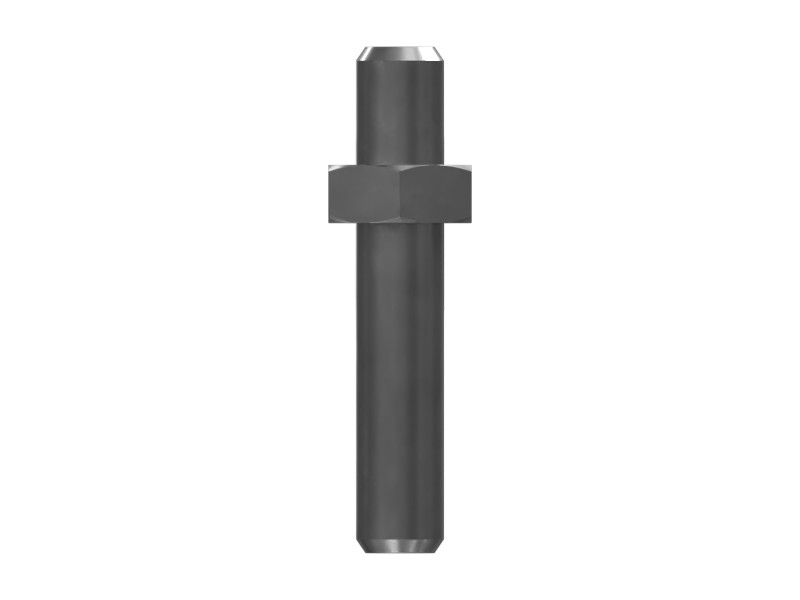

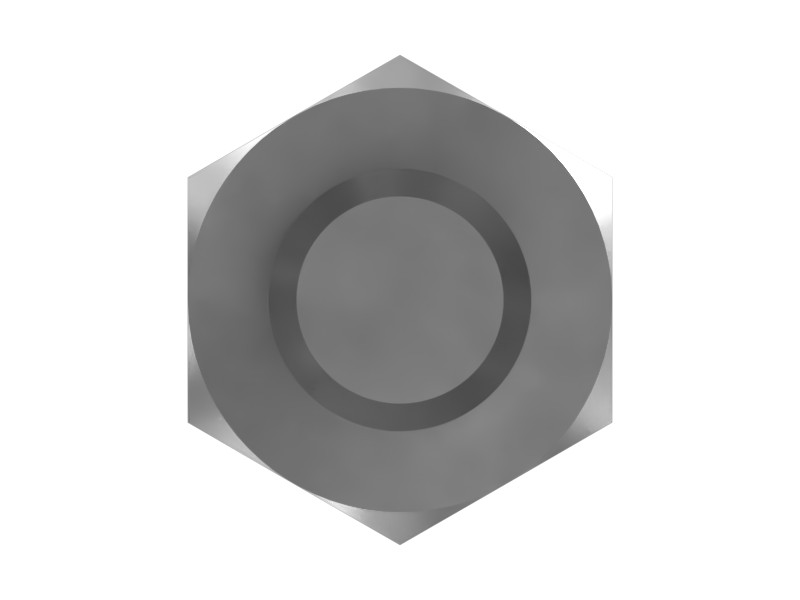

210-3321 M8 Cylinder Block Cover Stud
Bolt Stud
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are used where a separate washer is not suitable.
Features
*Cat fasteners are manufactured to precise specifications for durability, reliability and efficiency
*Strength and quality – fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
*Cat bolts, nuts and washers work together as a system to maximize clamping force.
*Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a performance-based system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | Dimensions and Tolerances of Metric Hex Head Fasteners |
|---|---|
| Grade | 10.9 |
| Stud Thread Size | M8 |
| Hole Thread Pitch | 1.25 |
| Stud Thread Pitch | 1.25 |
| Material | Low Alloy Steel |
| Head Height | 5.25 mm |
| Thread Size | M8 mm |
| Drive Chain | 13 mm |
| Material Description | ISO 898-1 Class 10.9 (1040 MPa Minimum Ultimate Tensile Strength) heat-treated steel, metric fasteners. |
| Handle Length | 15.75 mm |
| Coating | Zinc Electroplated With Topcoat Sealer, 5 Micron Minimum Thickness, 96 Hours Maximum to White Rust |
| Overall Length | 46 mm |
Compatible Equipment
- Motor Graders: 12K, 120H, 140G, 140K, 160K
- Generator Sets: C9
- Compactors: CB16, CB13, C-9, CB15
- Engines: C7
- Compact Track Loaders: 299D3, 279D3
- Dozers: D6N, D5N
- Excavators: 329D L, 324D, 325C, 325D, M325D L MH, 325D L, 324D L, 328D LCR, 325C L, 326D L, 3126, 329D
- Wheel Loaders: 966F, 950H
- Skid Steer Loaders: 299D3 XE, 262D3, 236D3, 242D3, 3126B, 246D, 226D3, 232D, 236D, 232D3, 246D3, 272D3 XE, 272D3, 239D3, 259D3, 289D3, 262D, 249D3
Additional information
| Machine Model | 120H, 12K, 140G, 140K, 160K, 226D3, 232D, 232D3, 236D, 236D3, 239D3, 242D3, 246D, 246D3, 249D3, 259D3, 262D, 262D3, 272D3, 272D3 XE, 279D3, 289D3, 299D3, 299D3 XE, 3126, 3126B, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 950H, 966F, C-9, C7, C9, CB13, CB15, CB16, D5N, D6N, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
