Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts can be installed when there is not enough clearance to use hex head bolts.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Class or Grade | ISO 898-1 Class 12.9 |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
| Locking Feature | None |
| Bolt Length | 25 mm (0.98 in) |
| Pitch | 1.25 mm |
| Coating | Zinc Flake |
| Handle Length | 3.75 mm (0.15 in) |
| Thread Size | M8 mm (0 in) |

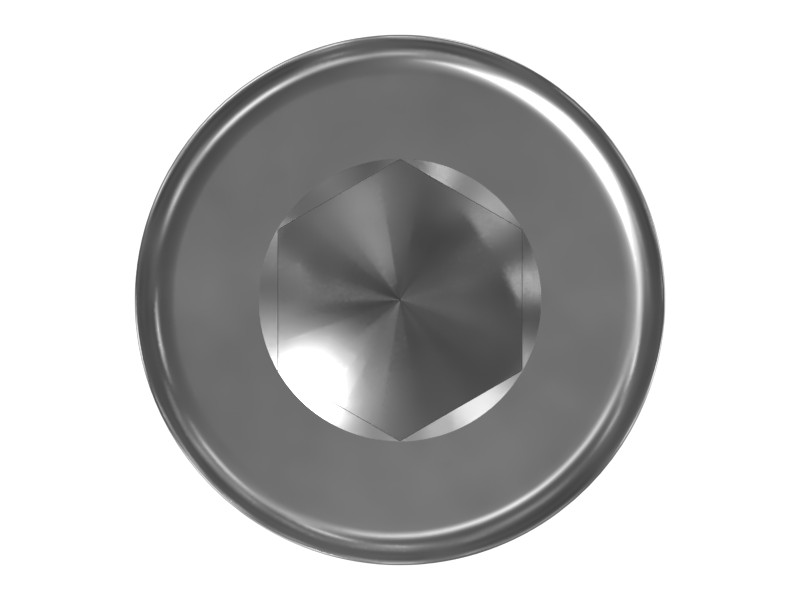

| Bolt Type | Socket Head |
Compatible Equipment
- Generator Sets: 3516C
- Track Loaders: 826K, 992, 982, 972, 995
- Cold Planers: SE50 VT, SE60 VT XW, PM620, PM622
- Compactors: 834K, 825K, 824K, 815, 816, 814, CB10
- Excavators: 326D2, 320D2, 320D, 305, 336D2, 336D, 326D2 L, 301.7D, 349D, 349D2 L, 349D2, 329D2, 329D, 329D2 L, 320D L, 330D2 L, 320D2 GC, 324D L, 312D2 L, 320D2 L, 336D2 XE, 324D, 323D L, 313D2, 305 CR, 432, 336D2 L, 318D L, 312D2 GC, 318D2 L, 330D2, 315D L, 312D, 320D GC, 336D2 GC, 313D, 416F2, 349D L, 434F2, 340D L, 340D2 L, 336D L, 320D FM, 313D2 GC, 329D L, 326D L, 313D2-GC, 320D3, 323D2 L, 312D2
- Asphalt Pavers: AP655F, AP655F L, AP355F, AP300F, AP-600D, AD63
- Skid Steer Loaders: 313D2 LGP, 24
- Motor Graders: 120, 18, 16, 16M3
- Wheel Excavators: M315D, M317D2, M320, M322D, M320D2, M313D, M315D2
- Dozers: D11, D9, D10, D7E
- Mini Excavators: 306, 308, 308.5, 310, 301.7D CR, 306.5
- Wheel Loaders: 950, 966L, 988K, 972L, 962L, 950L, 980, 966, R1700K, 836, 980L, R1700 XE, 950 GC, 834
- Off-Highway Trucks: 740, 785, 789, 745, 725, 798 AC, 796 AC, 775G, 740 GC, 730, 735, 793, 777, 794 AC, 773
