Description
Metric
Cat bolts form a matched system with mating hardened washers and nuts to produce sustained high clamping force.
Features
- Thread Size: M8
- Material: Steel
- Zinc phosphate and oil coating
Specifications
| Thread Direction | RH |
|---|---|
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size | M8 mm (0 in) |
| Locking Feature | None |
| Hex Size | 10 mm (0.39 in) |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
| Bolt Length | 50 mm (1.97 in) |
| Flange Diameter | 17 mm |

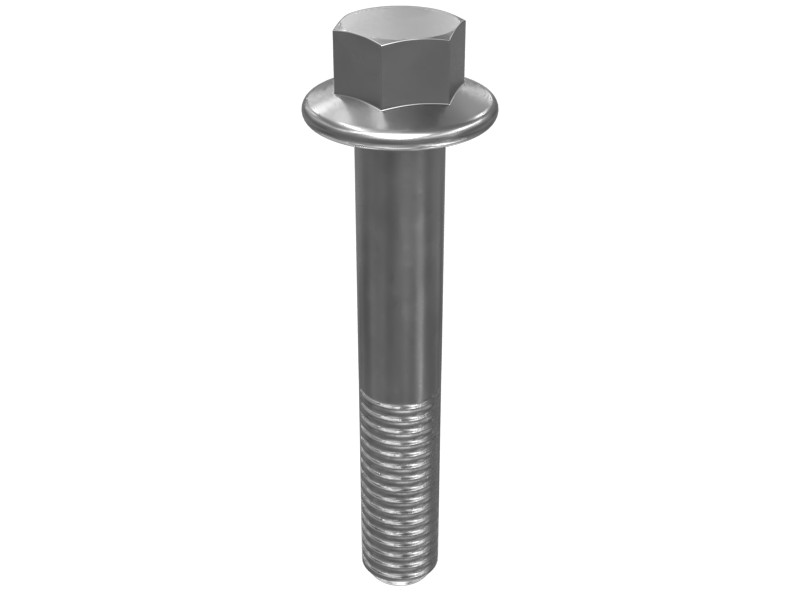

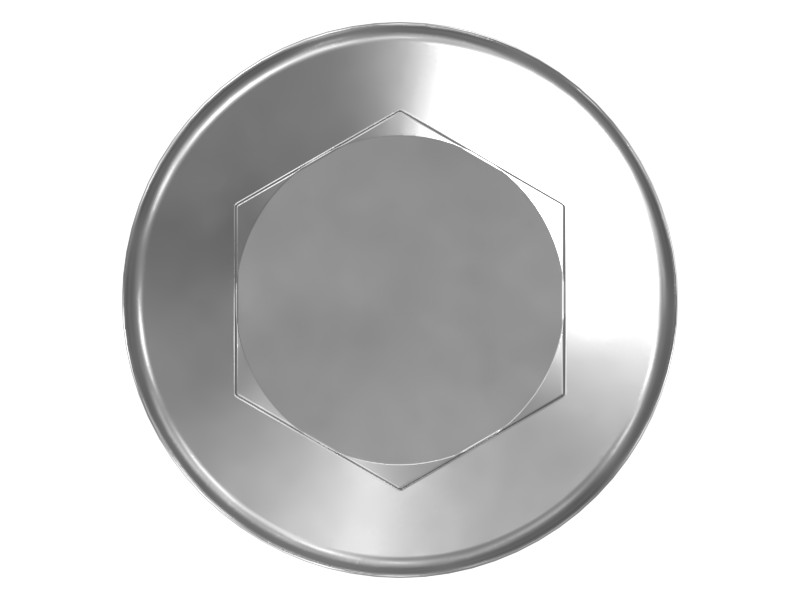

| Bolt Type | Hex Flange Head Bolt |
| Flange Type | Smooth Flange Face |
| Handle Length | 27 mm (1.06 in) |
| Coating | Zinc Phosphate + Oil |
Compatible Equipment
- Motor Graders: 120, 140 GC
- Generator Sets: C7.1, C9
- Track Loaders: 953, 963, 953K, 963K
- Cold Planers: PL61
- Compactors: CS68B, CP56B, CS79B, CS78B, CS74B, CS56B, 815, 816, 814, CS12, C-9
- Dozers: D6N, D6K2, D7E, D4
- Wheel Loaders: 950 GC, 962L, 938K, 950L, 924K
Additional information
| Machine Model | 120, 140 GC, 814, 815, 816, 924K, 938K, 950 GC, 950L, 953, 953K, 962L, 963, 963K, C-9, C7.1, C9, CP56B, CS12, CS56B, CS68B, CS74B, CS78B, CS79B, D4, D6K2, D6N, D7E, PL61 |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
