Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are used where a separate washer is not needed.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Coating | Zinc Phosphate + Oil |
|---|---|
| Thread Size (Diameter × Pitch) | M6x1 mm |
| Class or Grade | ISO 898-1 Class 10.9 |
| Locking Feature | None |
| Thread Direction | RH |
| Thread Size | M6 mm (0 in) |
| Remarks | Thread Length (mm) 3 |
| Bolt Length | 20 mm (0.787 in) |

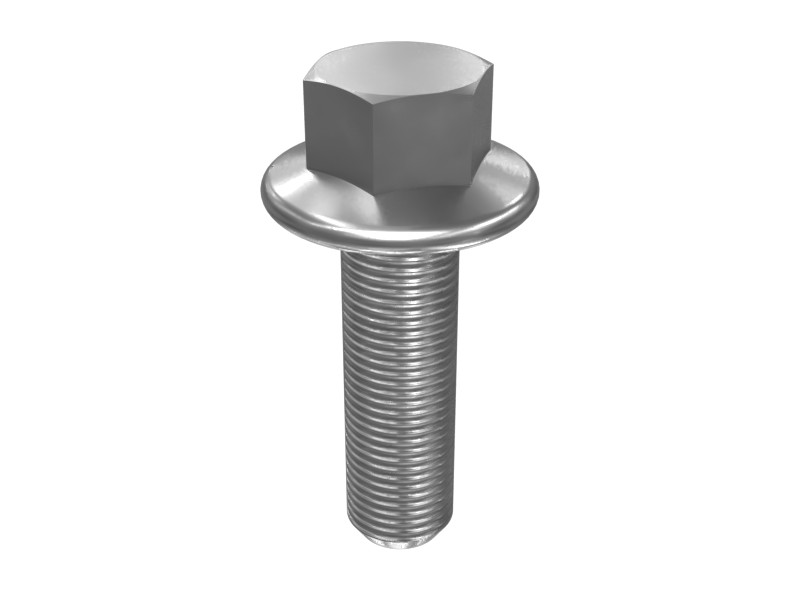

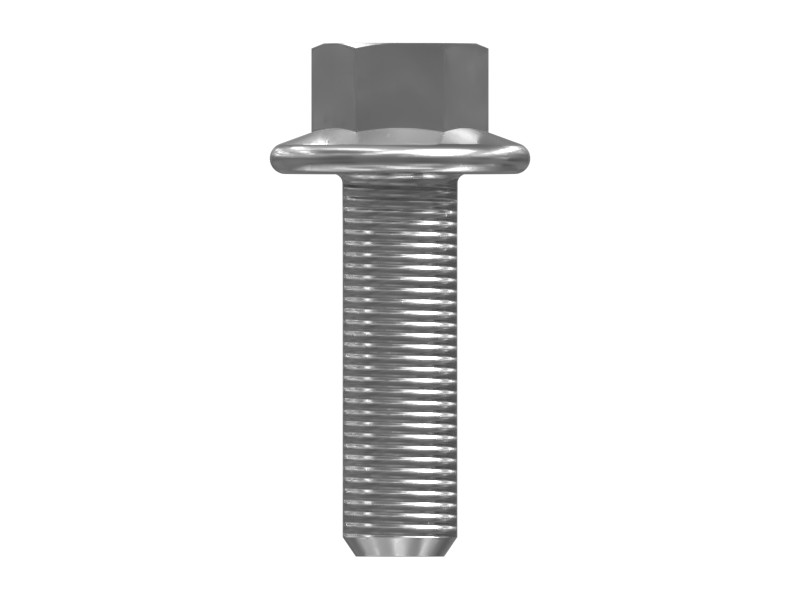

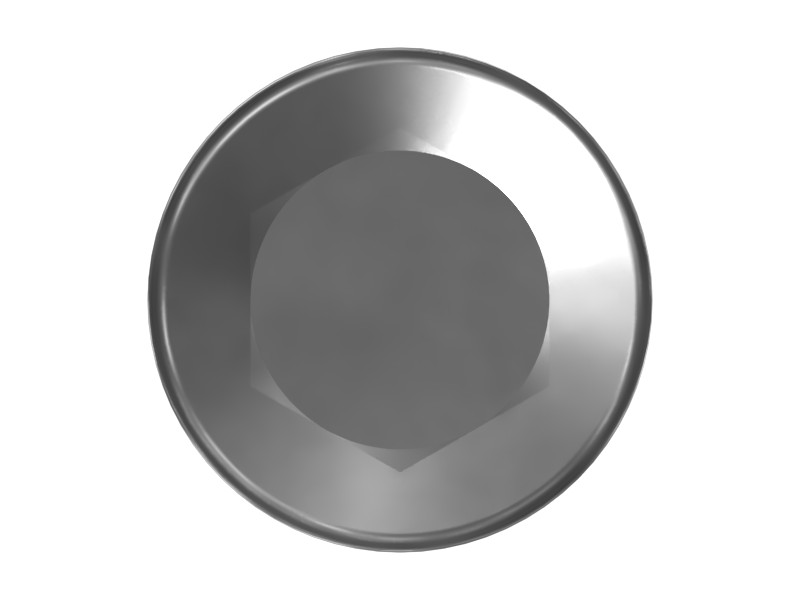

| Bolt Type | Hex Flange Head |
| Handle Length | 3 mm (0.118 in) |
Compatible Equipment
- Generator Sets: C7.1DE200E, C9, C4.4, C3.3DE33E0, DG30, C7.1
- Track Loaders: 982, 826K
- Compactors: C13B, C-9
- Engines: C15, C27, C32, C7, C13
- Excavators: 336D, 336D2, 329D, 330D L, 349F L, 352, 325D, 349, 355, 3508B, M325D L MH, 336D L, 325D L, 328D LCR, 325C, 324D L, 336D2 L, 336D2 XE, 330C, 330D, 324D, 325C L, 329D L, 330C L, 326D L, 336D2 GC, 637E, 637G, 352F, 340D2 L, 340D L, 349E L, 621K, 621H, 349E L VG, 349E
- Skid Steer Loaders: 226B3, 216B3, 3126B, 236B3
- Motor Graders: 14, 18, 16, 140G, 16M3, 12H
- Dozers: D7, D8T
- Wheel Loaders: 950H, 980, 836, 966F, R1700K
- Off-Highway Trucks: 735, 730, 725
Additional information
| Machine Model | 12H, 14, 140G, 16, 16M3, 18, 216B3, 226B3, 236B3, 3126B, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 349, 349E, 349E L, 349E L VG, 349F L, 3508B, 352, 352F, 355, 621H, 621K, 637E, 637G, 725, 730, 735, 826K, 836, 950H, 966F, 980, 982, C-9, C13, C13B, C15, C27, C3.3DE33E0, C32, C4.4, C7, C7.1, C7.1DE200E, C9, D7, D8T, DG30, M325D L MH, R1700K |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
