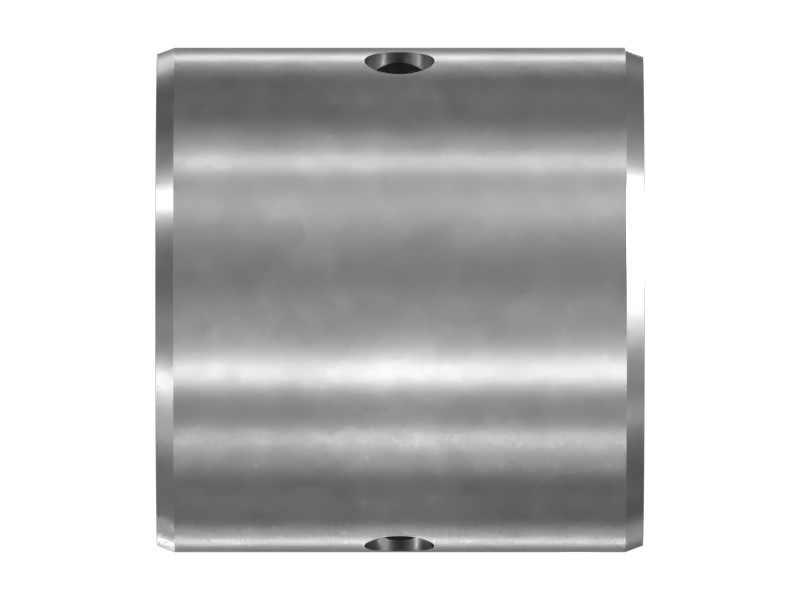

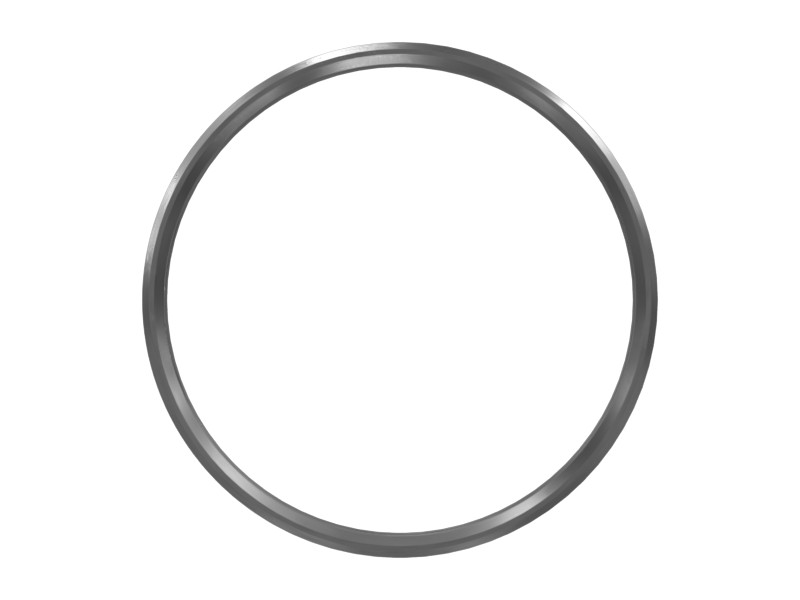

207-9576 39.558 mm ID Sleeve Bearing
Cat® 39.558 mm ID steel-backed bronze straight sleeve bearing for rocker arms
Description
Sleeve bearings, sometimes called bushings, journal bearings, or plain bearings, assist movement between rocker arm components. They accommodate linear, rotary, and oscillating motion and are designed to withstand the stresses and forces generated during movement.
Features
- Manufactured to exact specifications for rugged durability, reliable performance and outstanding productivity
- Larger contact area resists shock loads
- Greatly reduces noise at low speeds
Applications
The sleeve bearing is used in the rocker arm to reduce friction between moving parts.
Specifications
| Overall Length | 41.5 mm (1.634 in) |
|---|---|
| Ferrule Inside Diameter | 39.558 mm (1.557 in) |
| Ferrule Outside Diameter | 43.108 mm (1.697 in) |
| Cross Hole | Yes |
| Unique Features | No |
| Inside Diameter | 39.56 mm (1.56 in) |
| Length | 41.5 mm (1.63 in) |
| Material | Steel-Backed Bronze |
| Outside Diameter | 43.11 mm (1.7 in) |
| Weight | 0.07 kg (0.003 lb) |
Compatible Equipment
- Track Loaders: 992, 990K, 826K, 993, 834H
- Cold Planers: PL87, PL83, PM620, PM622
- Compactors: 834K, 824K, 825K
- Engines: C32, C27, C15, C18
- Excavators: 390F L, 374F, 374, 395, 390F, 637K, 6020B, 6040, 6015B, 6030, 6015, 374F L
- Asphalt Pavers: AD63, AD45, AD30
- Skid Steer Loaders: 24
- Wheel Excavators: MD6250, MD6310, MD6200
- Dozers: D11, D11T, D10, D9T, D9, D8T, D10R, D10T2, D6T, D8, D11R, D10N, D10T
- Wheel Loaders: 988K, RM500B, R2900 XE, 836, 834, R2900G, R3000H, 990H, 986H, 988H
- Off-Highway Trucks: 777, 740B, 775G, 745C, 740, 745, 770G, 740 GC, 777D, 772G, 773, 773F, 777E, 735
Additional information
| Machine Model | 24, 374, 374F, 374F L, 390F, 390F L, 395, 6015, 6015B, 6020B, 6030, 6040, 637K, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 773, 773F, 775G, 777, 777D, 777E, 824K, 825K, 826K, 834, 834H, 834K, 836, 986H, 988H, 988K, 990H, 990K, 992, 993, AD30, AD45, AD63, C15, C18, C27, C32, D10, D10N, D10R, D10T, D10T2, D11, D11R, D11T, D6T, D8, D8T, D9, D9T, MD6200, MD6250, MD6310, PL83, PL87, PM620, PM622, R2900 XE, R2900G, R3000H, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines |
| Part Source | Genuine OEM |
