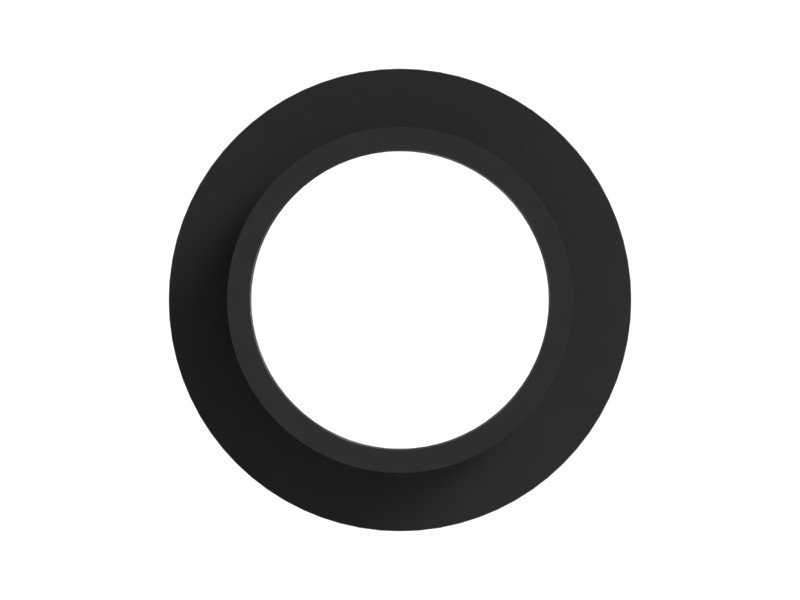

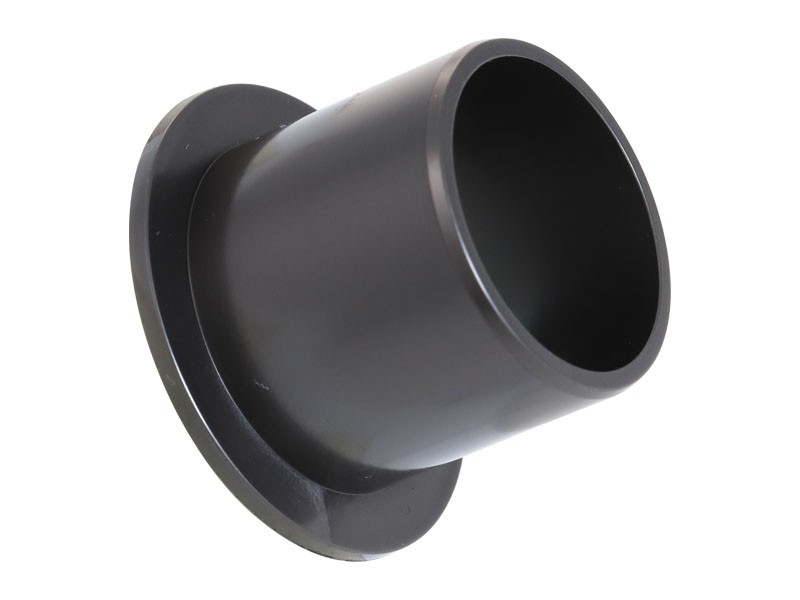

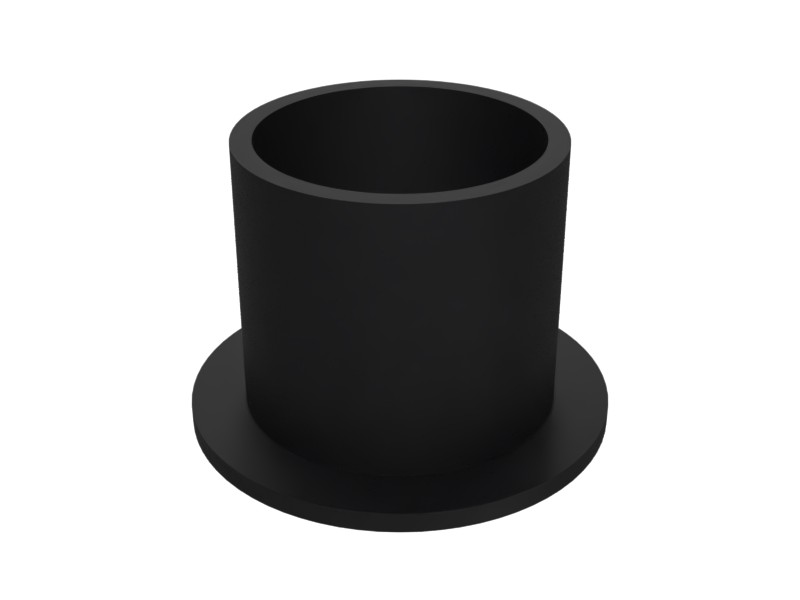

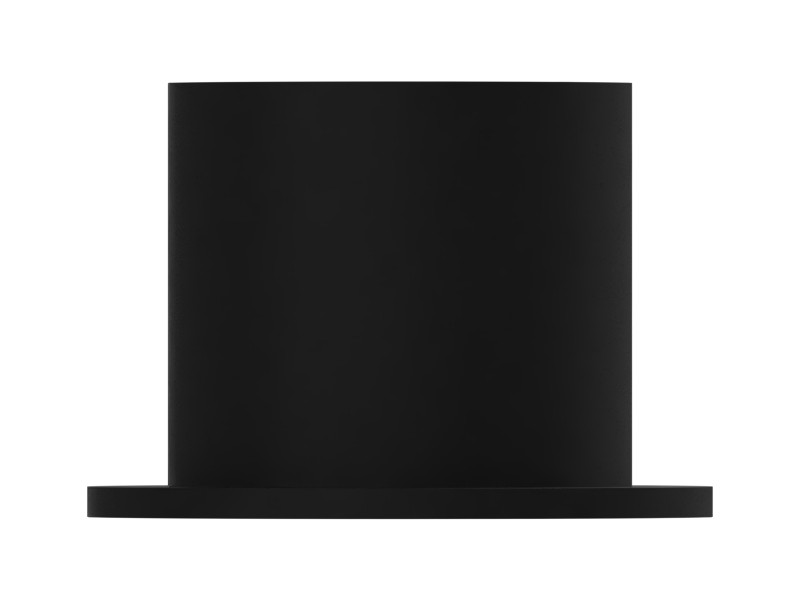

207-0797 31 mm Flange Diameter Bushing
Cat® 21.50 mm Overall Length Bushing for Operator Console
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Bushing mounts are cylindrical rubber components with a steel inner sleeve. They may be straight or flanged. Some mounts are installed inside an outer sleeve.
Features
Flange Diameter: 31 mm (1.220 in)
Outside Diameter: 23 mm (0.906 in)
Inside Diameter: 20 mm (0.787 in)
Length: 21.5 mm (0.846 in)
Applications
Bushing mounts are used in a variety of Cat mounting systems, such as powertrain, coolers, electronics, cab, HVAC, and hydraulic systems.
Specifications
| Ferrule Outside Diameter | 23 mm (0.906 in) |
|---|---|
| Ferrule Inside Diameter | 20 mm (0.787 in) |
| Unique Features | No |
| Overall Length | 21.5 mm (0.846 in) |
| Cross Hole | No |
| Flange Thickness | 1.5 mm (0.059 in) |
| Flange Diameter | 31 mm (1.22 in) |
| Outside Diameter | 23 mm (0.91 in) |
| Inside Diameter | 20 mm (0.79 in) |
| Length | 21.5 mm (0.85 in) |
Compatible Equipment
- Mini Excavators: 308, 302CR, 301.5, 301.7CR, 310, 305.5E, 303.5E, 305E2, 303.5D, 305.5E2, 303.5C, 306, 306.5, 308E2, 307, 307E2, 308.5, 305.5, 305.5 GC
- Excavators: 305E2 CR, 302.7CR, 301.8, 301.6, 303.5CR, 303CR, 305 CR, 305, 303, 303.5E2 CR, 307E, 303C CR, 308E, 305C CR, 306E, 307.5, 306E2
Additional information
| Machine Model | 301.5, 301.6, 301.7CR, 301.8, 302.7CR, 302CR, 303, 303.5C, 303.5CR, 303.5D, 303.5E, 303.5E2 CR, 303C CR, 303CR, 305, 305 CR, 305.5, 305.5 GC, 305.5E, 305.5E2, 305C CR, 305E2, 305E2 CR, 306, 306.5, 306E, 306E2, 307, 307.5, 307E, 307E2, 308, 308.5, 308E, 308E2, 310 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
