Description

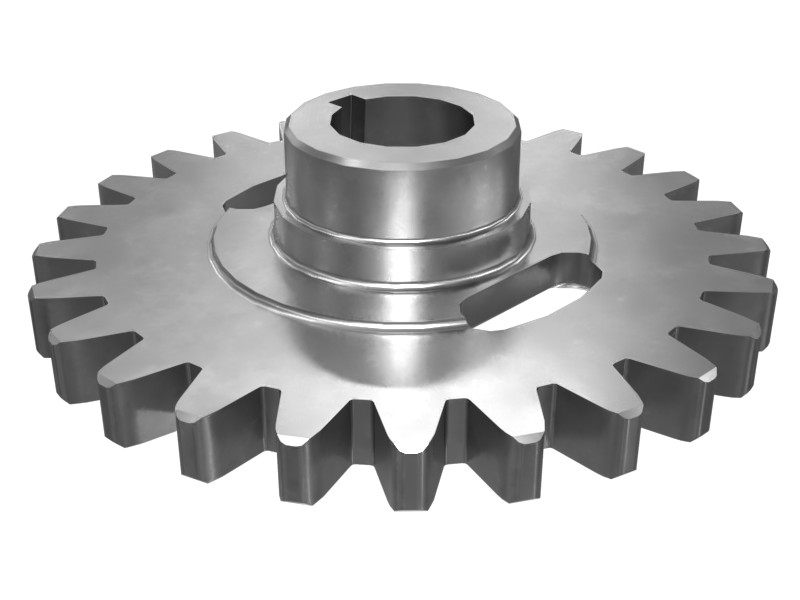

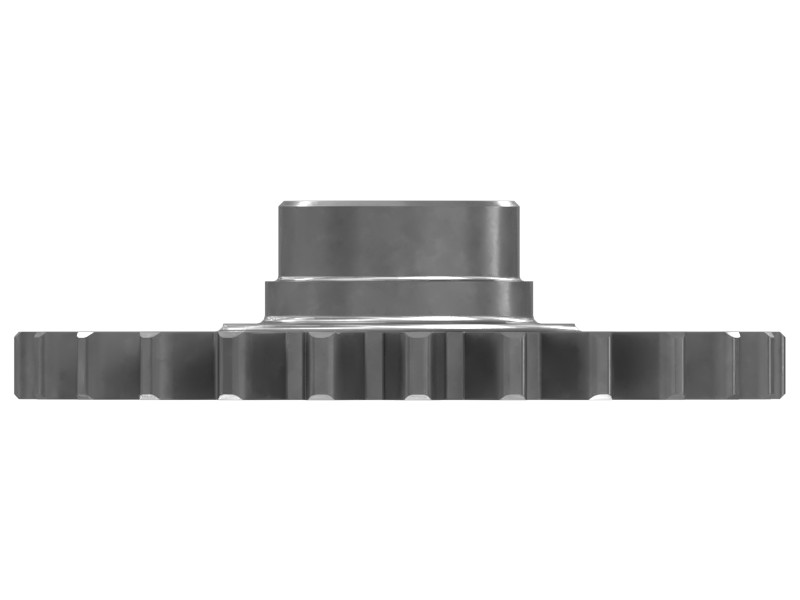

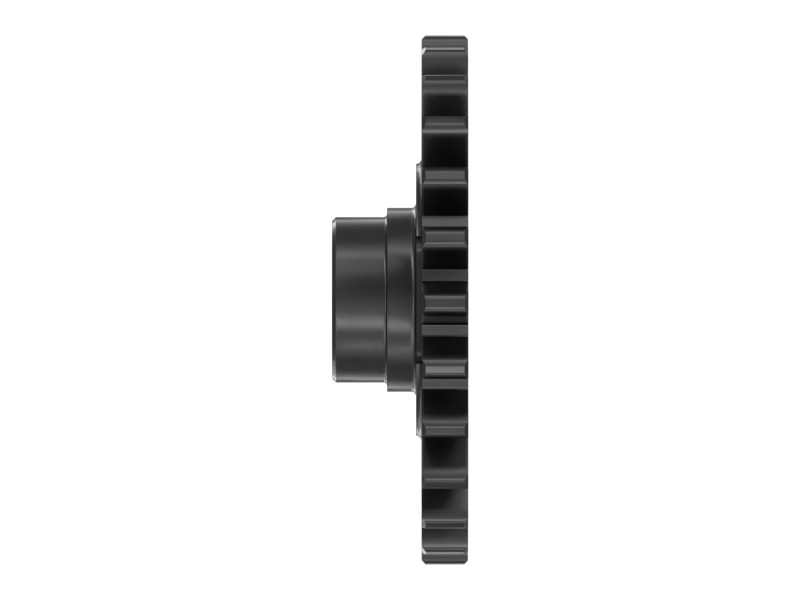

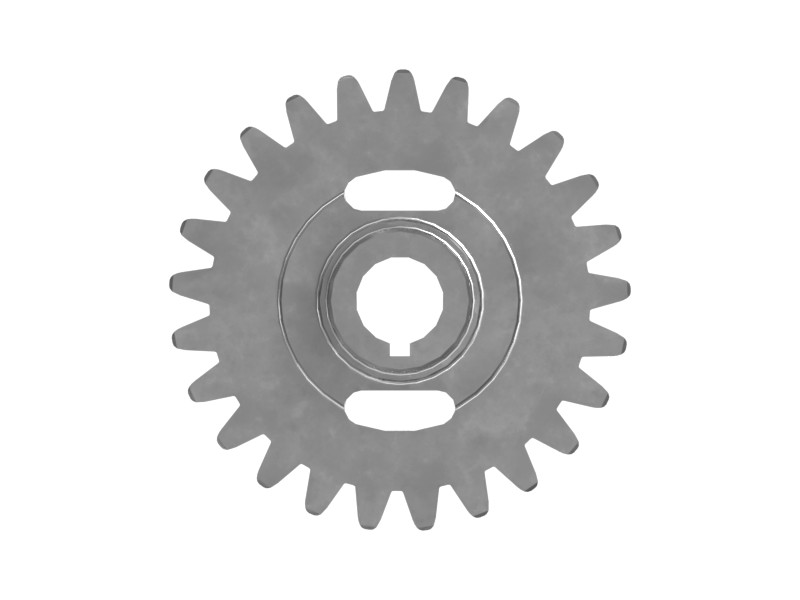

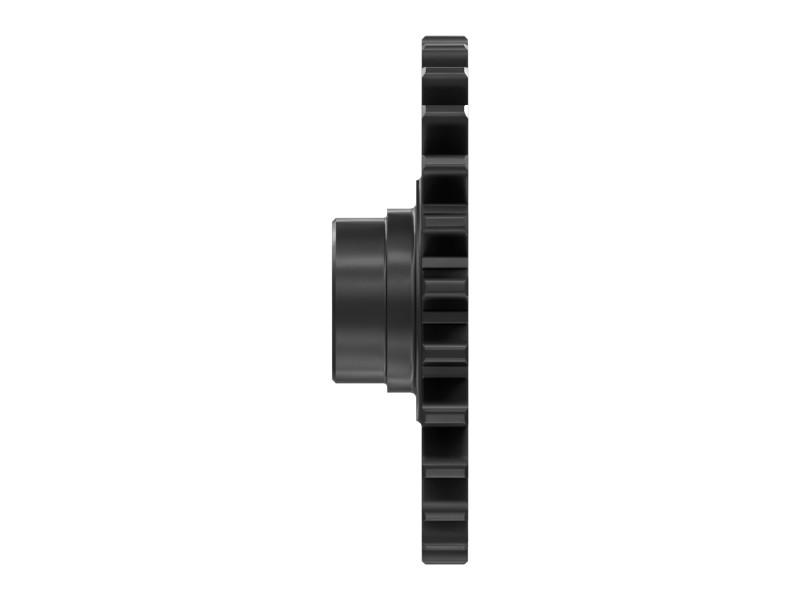

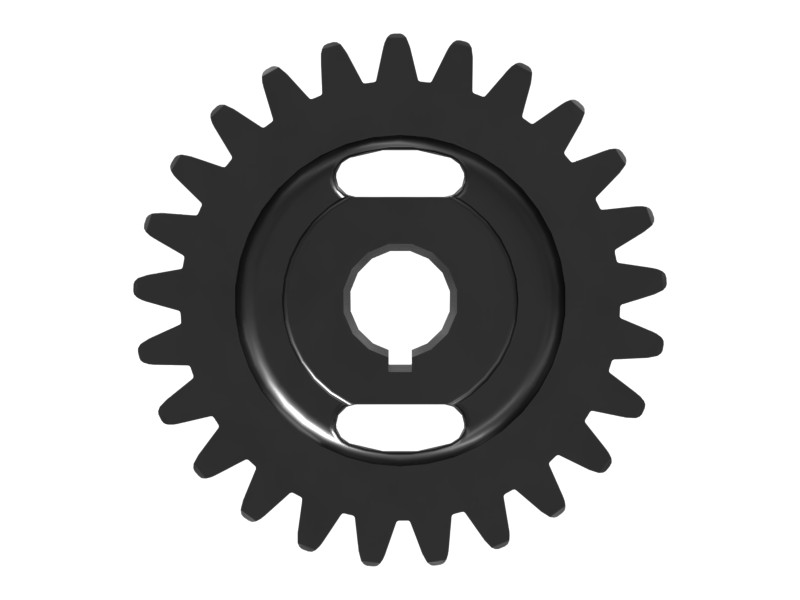

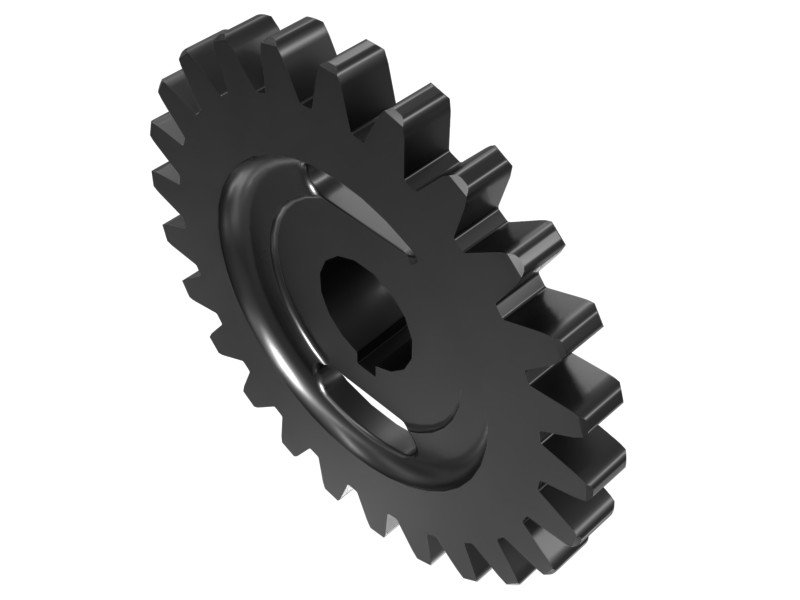

Spur gears such as 206-4475 are discs or wheels with milled teeth that mesh with the milled teeth of another gear to transmit or receive force and motion for the oil pump.
Cat gears are made from premium materials selected strictly to technical specifications that match the loads in Cat machines. They are produced with special (in some cases proprietary) heat treatment processes, including case carburizing, nitriding, and induction hardening. Cat gears offer industry-leading power density (the power a gear can transmit relative to its size) and are designed with reusability in mind. As a result, they are more durable and effectively reduce overall machine operating costs.
Features
- Oil pump drive spur gear
- Hardened steel
- Tapered bore with lock hole
- Spur Gear Teeth: 25
- Pitch Diameter: 127 mm (5.00 in)
- Face Width: 12.5 mm (0.49 in)
- Overall Width: 37 mm (1.46 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Type | Spur Gear |
|---|---|
| Material | Low Alloy Steel |
| Number of Teeth | 25 |
| Outside Diameter | 144.24 mm (5.68 in) |
| Width | 37 mm (1.46 in) |
Compatible Equipment
- Cold Planers: PL83
- Dozers: D10T2, D10T, D8T, D9T, D9, D10
