Description

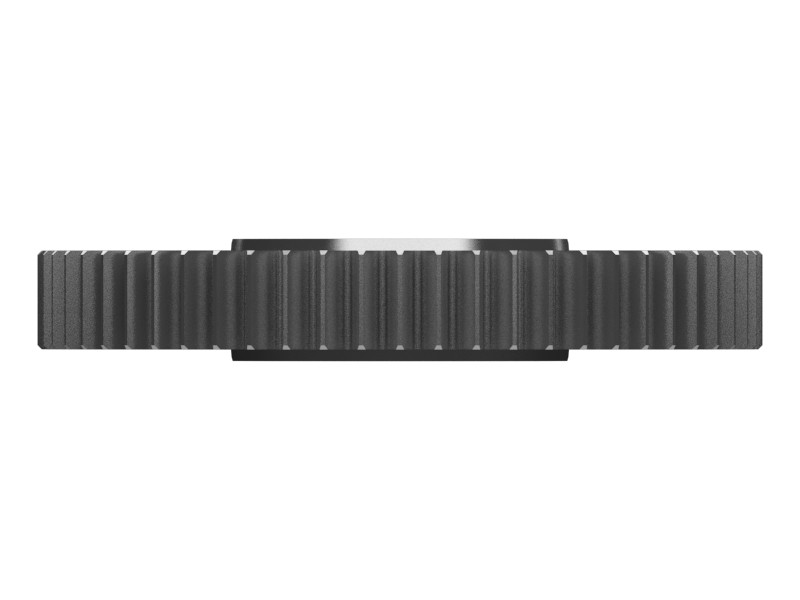

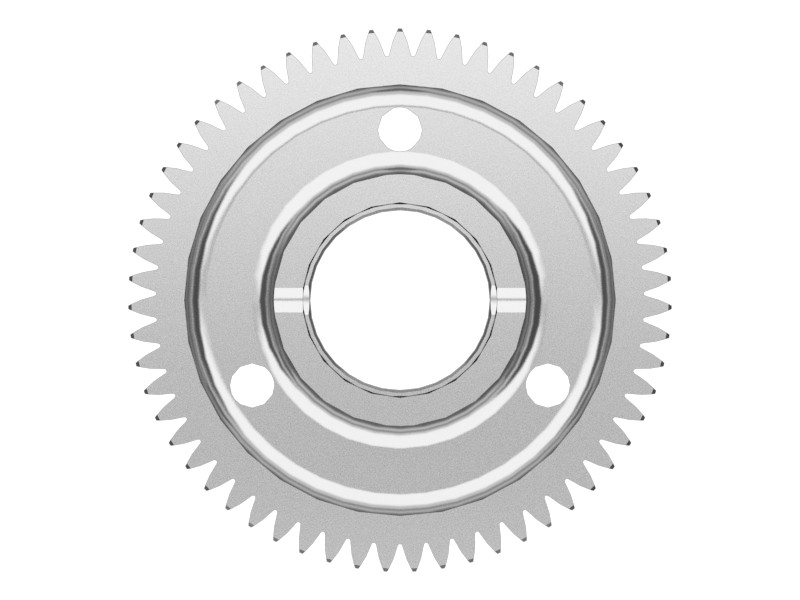

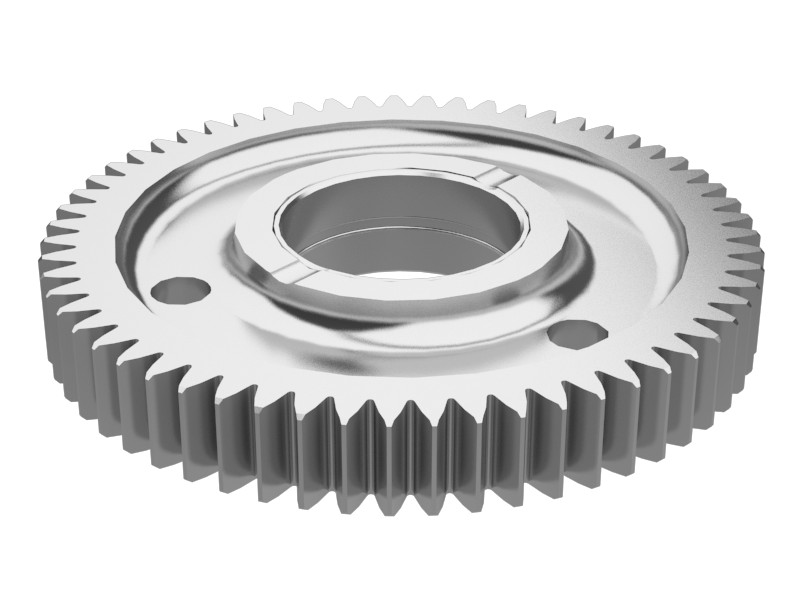

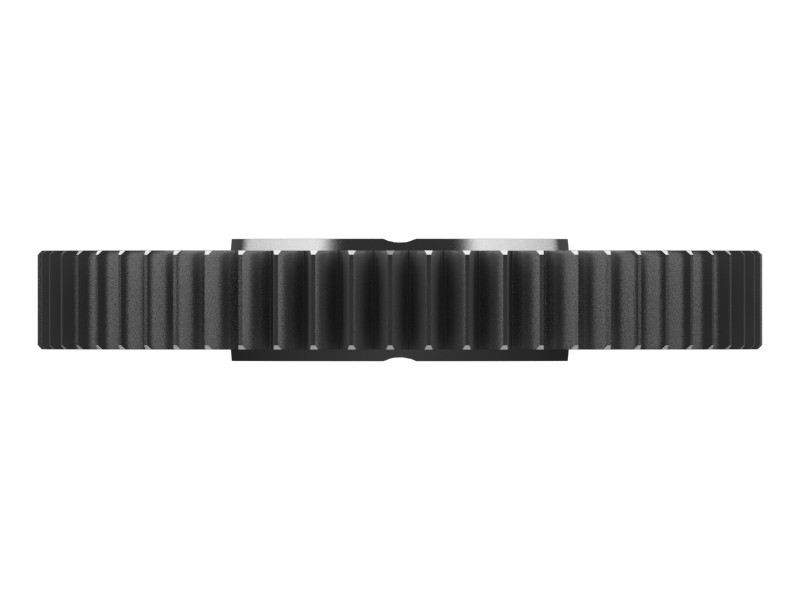

An idler gear can change the direction of rotation of the output shaft and can also help reduce the size of the input gear or output gear while maintaining the spacing between shafts.
Features
- The idler comes with a sleeve bearing
- Number of Teeth: 59
Applications
Used in the rear gear assembly. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outside Diameter | 266.7 mm (10.5 in) |
|---|---|
| Length | 38.1 mm (1.5 in) |
Compatible Equipment
- Cold Planers: PL87, PL83, PM-200
- Wheel Excavators: MD6200
- Dozers: D8T, D9T, D8R, D9, D8
- Excavators: 374, 3101, 395, 3508B
- Wheel Loaders: RM500B
Additional information
| Machine Model | 3101, 3508B, 374, 395, D8, D8R, D8T, D9, D9T, MD6200, PL83, PL87, PM-200, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Dozers, Cold Planers |
| Part Source | Genuine OEM |
