203-3768 16 mm OD Gasket

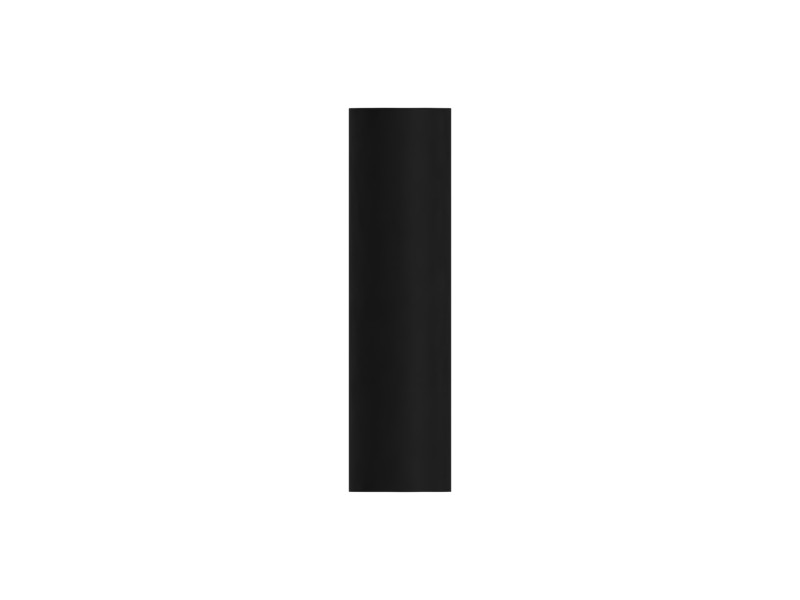

Cat® 16 mm OD Steel Spacer for Increasing the Stretch Length of Fuel Lines Supporting Tubes
Description
A shim is a thick ring made of metal, rubber, or plastic that is held under a nut or bolt head to spread pressure or provide equalization between two surfaces when tightened.
Features
- Material: Steel
- Outside Diameter: 16 mm (0.62 in)
- Inside Diameter: 11 mm (0.43 in)
- Overall Length: 60 mm (2.36 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Overall Length | 60 mm (2.36 in) |
| Gasket Type | Flat |
| Outside Diameter | 16 mm (0.62 in) |
| Inside Diameter | 11 mm (0.43 in) |
| Thickness | 60 mm (2.362 in) |
| Coating | None |
Compatible Equipment
- Motor Graders: 16M, 14, 12K, 140K, 120H, 140G, 160K, 14M
- Wheel Excavators: MD6250
- Engines: C13, C7, C11, C15, C18
- Dozers: D5N, D6N
- Excavators: 637K
- Wheel Loaders: 950H, 966F
- Off-Highway Trucks: 793D, 777D
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | 120H, 12K, 14, 140G, 140K, 14M, 160K, 16M, 3126B, 637K, 777D, 793D, 950H, 966F, C11, C13, C15, C18, C7, D5N, D6N, MD6250 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Engines |
| Part Source | Genuine OEM |
