Description

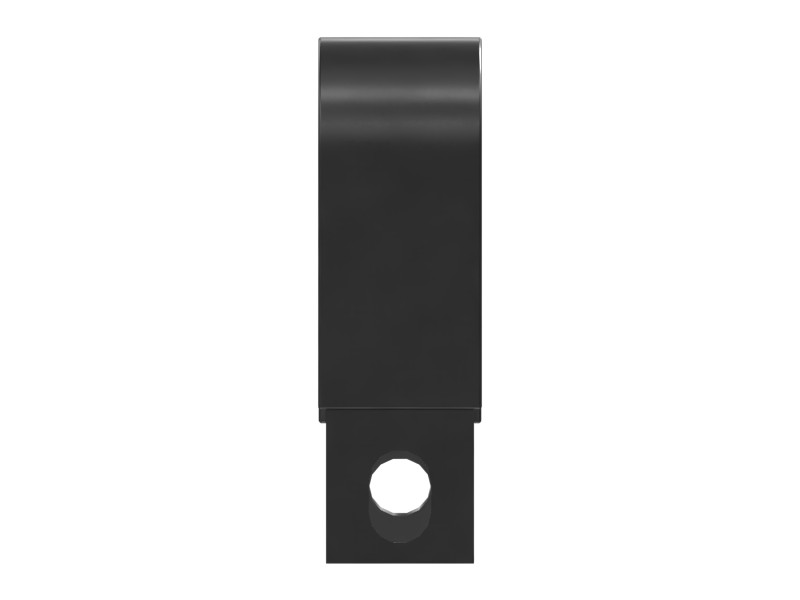

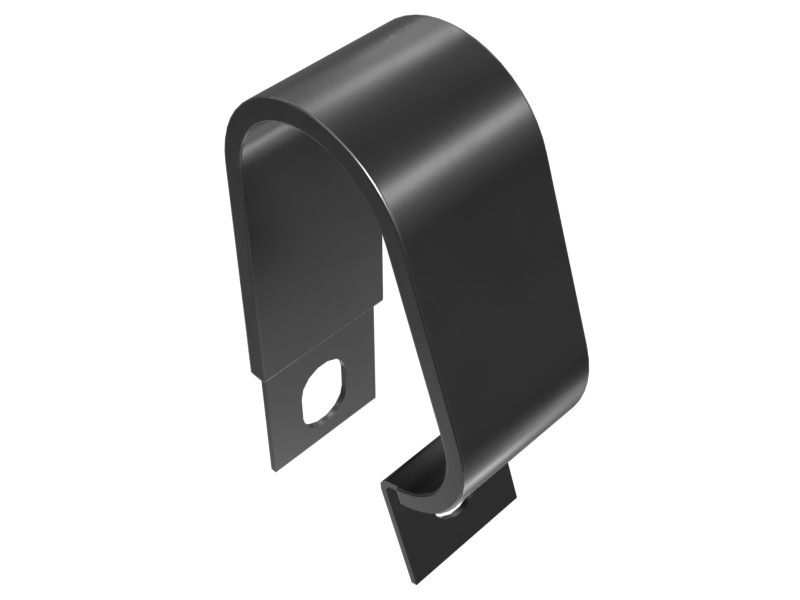

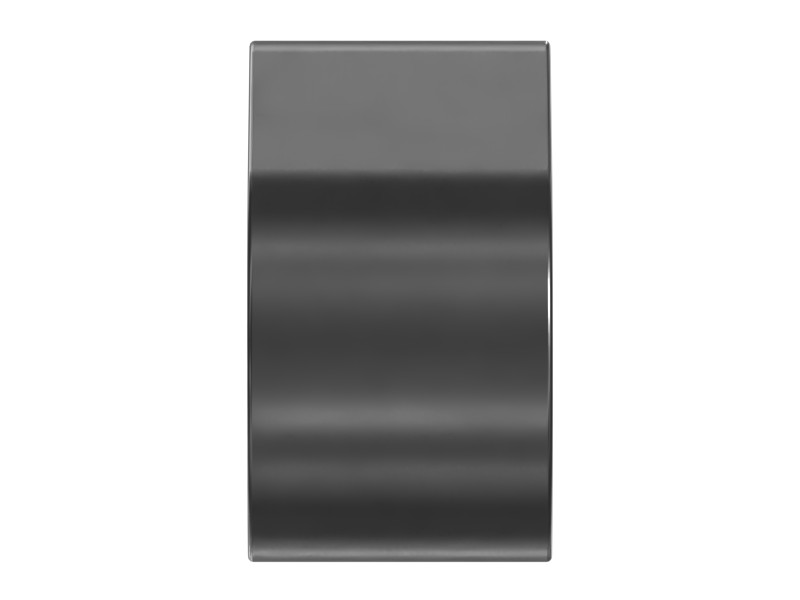

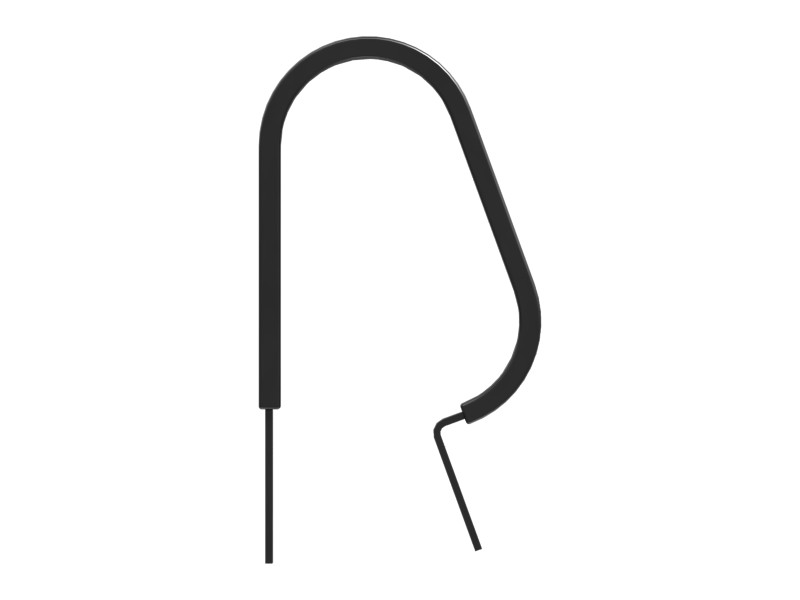

Clip Description: The double P-clip, also known as a loop clip,
Used to attach hoses and cables to a surface, helping to organize hoses and cables neatly. They also provide vibration or abrasion protection, making them suitable for harsh environments. Double P-clips are typically made of plastic or metal.
Features
- When the clamp legs are drawn together, the hose should be secured to a tube with an outside diameter of 38.1 mm X 2.
- Manufactured to exact specifications for rugged durability, reliable performance and high efficiency.
- Provides a reliable, secure connection between hose and fitting.
Applications
The double-hose P-clip is used to hold or secure lines in various systems, such as mounting wires, engine oil filter mountings, fuel lines, rear chassis wiring, and hydraulic generator wiring, and is used primarily on Cat 120M, 12M, 140, 140M, 14L, 150, 16, 160, 160M, 16M, 18 and 18M Engine Motor Graders, 314E, 314F, 315F, 316E, 316F, 318E, 318F, 318E, 318F, 320D, 320E, 320F, 321F, 323D, 323E, 323F, 324D, 324E, 325D, 325F, 326, 326D, 326F, 328D, 329D, 329E, 329F, 330, 330D, 330F, 335F, 336, 336D, 336E, 336F. -, 340F, 345C-, 345D-, 349D, 349E, 349F, 352F, 365C, 374E, 374F, 390E, 538, 548, 558, 568, 6060 and MC230B Excavators, 314E, 320D, 320E, 323D, 324D, 325D, 326D, 328D, 329D 330D, 336D, 345, 345C, 345D, 365, 365C, 613C, 962H, C6. 6 and C7.1 OEM Applications, 325D, 345C, 365C, M325D, M333F, MH3275, TH220B and W345C Material Handlers, 336E Base Machine – COSG-336E HVG, 336E Base Machine – COSG-336E L UHD, 3516C and C175-20 Generator Sets, 434F and 444F Backhoe Loaders, 613C Scrapers, 613C, 613G and 613H Rubber-Tired Tractors (for Scrapers), 793F, 795F and 797F Trucks (including Truck Tractors), 950G, 950H, 962G, 962H, 966L, 972K, 972L, 972M, 980, 980G, 980H, 980L, 980M, HIN2021D, HIN2021E and IT62H Wheel Loaders, 953 and 953C Track-Type Loaders, 953 Powertrain (Power Module, Transmission, TC), AD22 Articulated Trucks, C13 Engines (Piston), C13 Engine Common Platform (C13), CB10, CB13, CB15, CB16, CB44B, CB46B, CB54B, CB64B, CB66B, CB68B, CB7, CB8, CC10, CC7 and CW12 Steel Wheel, Track-Type Dozers D11, D8, D8R, D8T, MT725, MT735, MT745, MT755, MT765, MT835, MT845, MT855, MT865, MTC725, MTC735, MTC745, MTC755, MTC765, MTC835, MTC845, MTC855 and MTC865.
Specifications
| Clamp Width | 32 mm (1.26 in) |
|---|---|
| Coating | Not Specified |
| Tube Diameter | 38.1 mm (1.5 in) |
| Fastener Size | M12 mm (7/16 in) |
| Length | 76 mm (3 in) |
| Width | 32 mm (1.26 in) |
| Thickness | 1.5 mm (0.06 in) |
| Fits Bolt Size | M12 mm (1/2-13 in) |
Compatible Equipment
- Motor Graders: 14
- Generator Sets: C4.4
- Compactors: CB16, CB-64B, CB-44B, CB-66B, CB13, CB15, CB10
- Engines: C13
- Dozers: D8R, D8T
- Excavators: 324D, 329D L, 328D LCR, 336F L, 325D L, 324D L, 325D, 336F LN, 336D2 XE, 326D L, 349D L, 345C, 345C L, 345D L, 345D, 6060, M325D L MH, 336F, 349E, 349E L, 349E L VG, 349D2, 349D2 L, 349D, 329D
- Wheel Loaders: 980M, 972M
- Off-Highway Trucks: 793F, 797F
Additional information
| Machine Model | 14, 324D, 324D L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 336D2 XE, 336F, 336F L, 336F LN, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 6060, 793F, 797F, 972M, 980M, C13, C4.4, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, D8R, D8T, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
