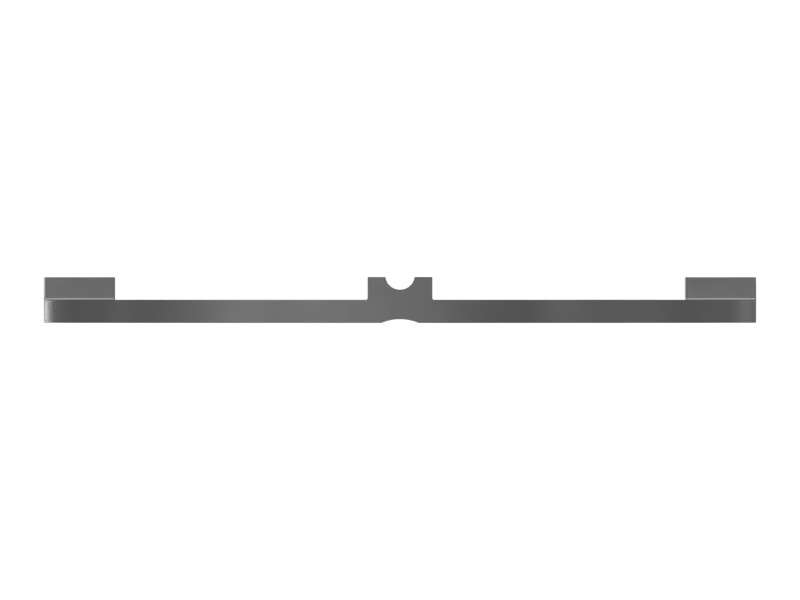

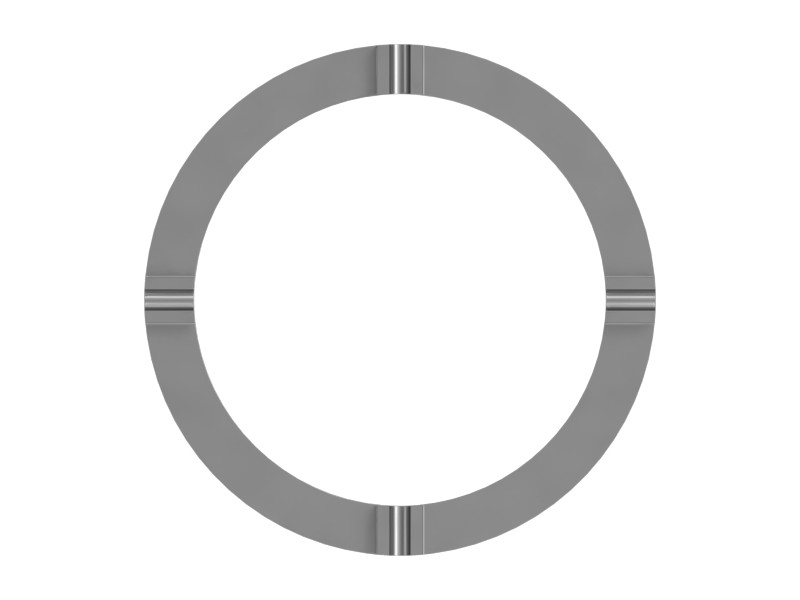

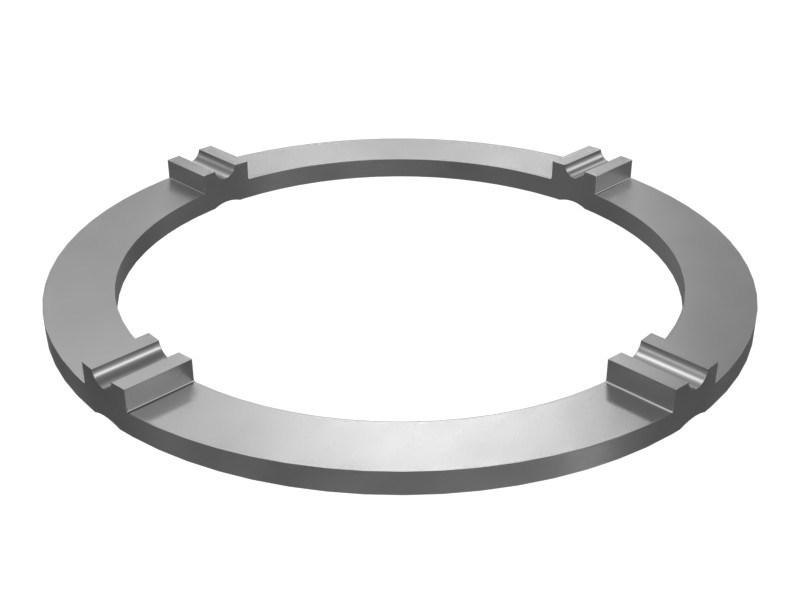

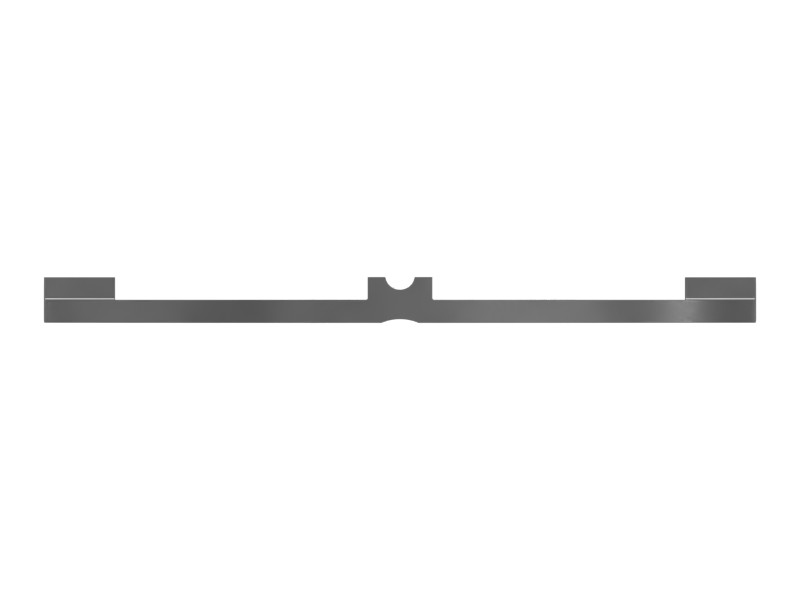

200-4215 229.5 mm ID Thrust Washer
9 mm Thick Thrust Washer for Sun Gear Final Drive Planetary Gears
Description
Thrust washers are designed to provide axial positioning for gears, bearings, and other components that rotate around a shaft. These components may have features that facilitate lubrication and cooling to support substantial axial loads and high rotational speeds.
Specifications
| Gasket Type | Thrust |
|---|---|
| Material | Nylon, 6, 6/12, 6/6 Plastic |
| Inside Diameter | 230 mm (9.04 in) |
| Outside Diameter | 285 mm (11.20 in) |
| Thickness | 9 mm (0.35 in) |
Compatible Equipment
- Excavators: 3516E
- Off-Highway Trucks: 793F, 793D, 793
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
