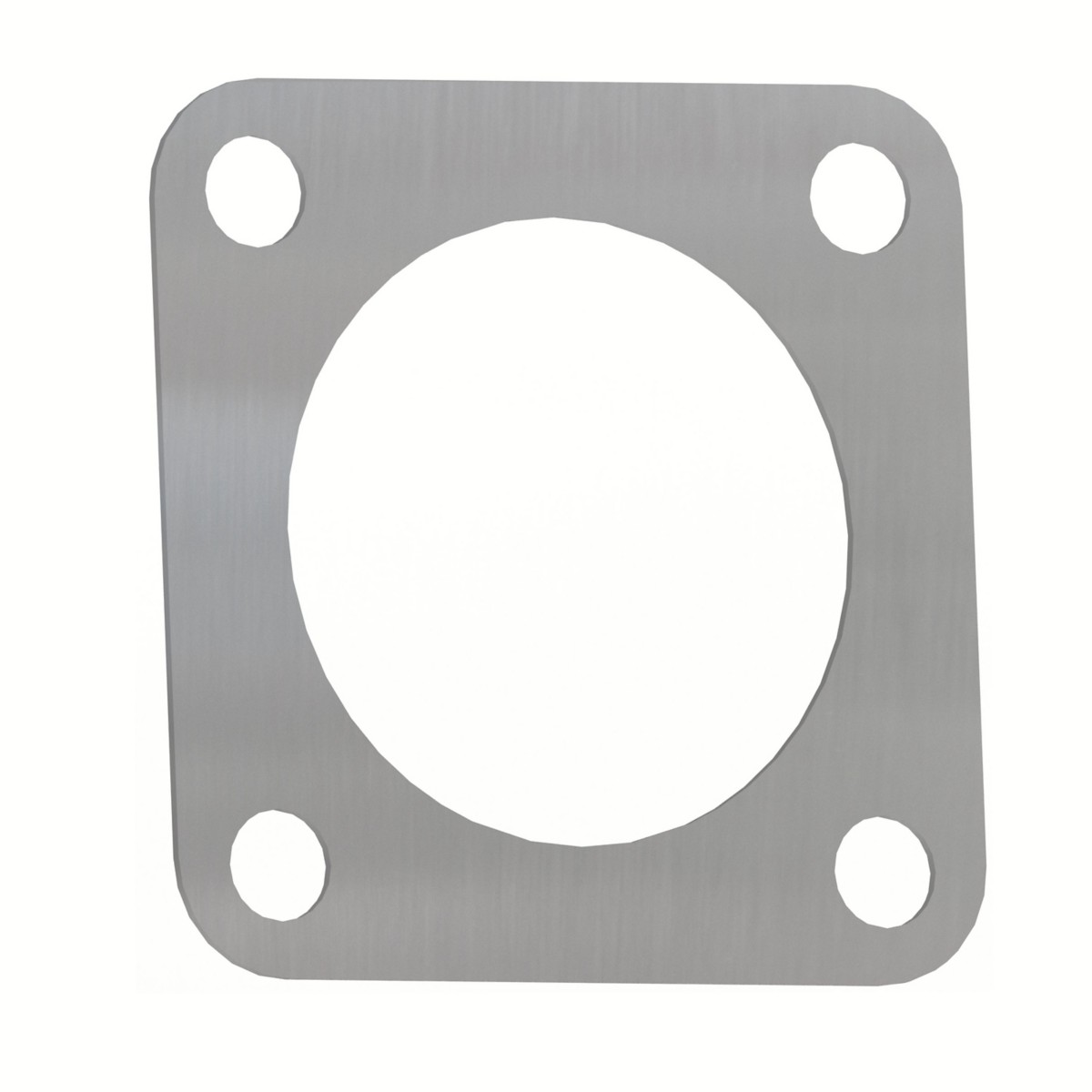

1W-3601 0.8 mm Thick Coolant Level Gauge Gasket
Cat® 0.8 mm Thick Radiator Coolant Level Gauge Gasket
Description
Gaskets use compression between the mating parts to achieve a tight, leak-free seal. Cat gaskets are designed with the right combination of material and form to deliver the desired performance for your application.
Specifications
| Type | Square-Rectangular |
|---|---|
| Style | Flat Plate |
| Material | Medium Compressibility, Thin Gasket Material |
| Inside Diameter | 42.0 mm (1.65 in) |
| Length | 60.0 mm (2.36 in) |
| Width | 60.0 mm (2.36 in) |
| Thickness | 0.8 mm (0.03 in) |
| Hole Size | 7.5 (4X) mm (0.30 (4X) in) |
Compatible Equipment
- Wheel Loaders: 966F, 988F
- Off-Highway Trucks: 798 AC, 797F, 789D, 793F, 794 AC, 793, 785D, 793D, 785, 789, 796 AC, 773E, 773D, 777D, 771D, 777
